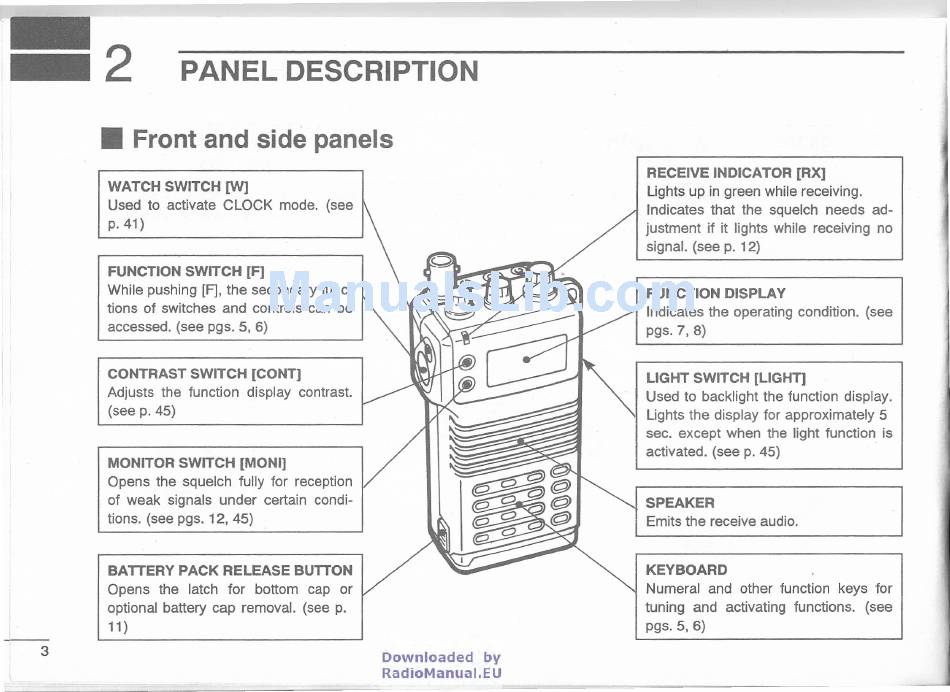

PANEL DESCRIPTION
• Front and side panels
WATCH SWITCH [W]
p.41)
FUNCTION SWITCH [F)
CONTRAST SWITCH [CONT]
MONITOR SWITCH [MONI]
BATTERY PACK RELEASE BUTTON
11)
3
RECEIVE INDICATOR [RX]
FUNCTION DISPLAY
LIGHT SWITCH [LIGHT]
SPEAKER
KEYBOARD
