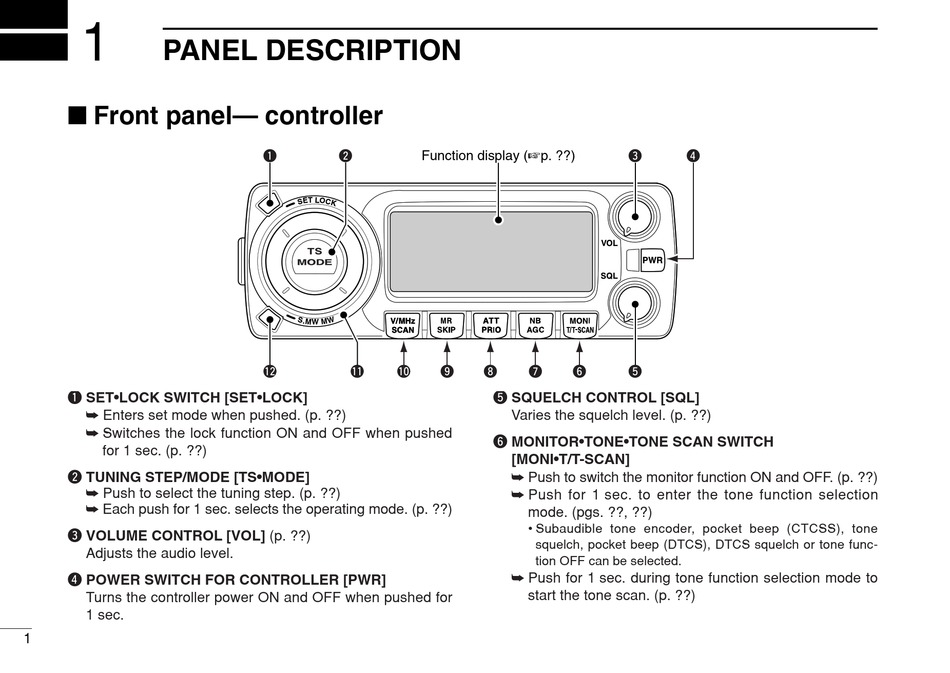

PANEL DESCRIPTION

I Front panel— controller
q SET•LOCK SWITCH [SET•LOCK]
➥ Enters set mode when pushed. (p. ??)
➥ Switches the lock function ON and OFF when pushed
for 1 sec. (p. ??)
w TUNING STEP/MODE [TS•MODE]
➥ Push to select the tuning step. (p. ??)
➥ Each push for 1 sec. selects the operating mode. (p. ??)
e VOLUME CONTROL [VOL] (p. ??)
Adjusts the audio level.
r POWER SWITCH FOR CONTROLLER [PWR]
Turns the controller power ON and OFF when pushed for
1 sec.
1
q w
Function display ( p. ??)
!2 !1 !0 o
e
i u y t
t SQUELCH CONTROL [SQL]
Varies the squelch level. (p. ??)
y MONITOR•TONE•TONE SCAN SWITCH
[MONI•T/T-SCAN]
➥ Push to switch the monitor function ON and OFF. (p. ??)
➥ Push for 1 sec. to enter the tone function selection
mode. (pgs. ??, ??)
• Subaudible tone encoder, pocket beep (CTCSS), tone
squelch, pocket beep (DTCS), DTCS squelch or tone func-
tion OFF can be selected.
➥ Push for 1 sec. during tone function selection mode to
start the tone scan. (p. ??)
r
