Logicube Talon Ultimate™ User's Manual

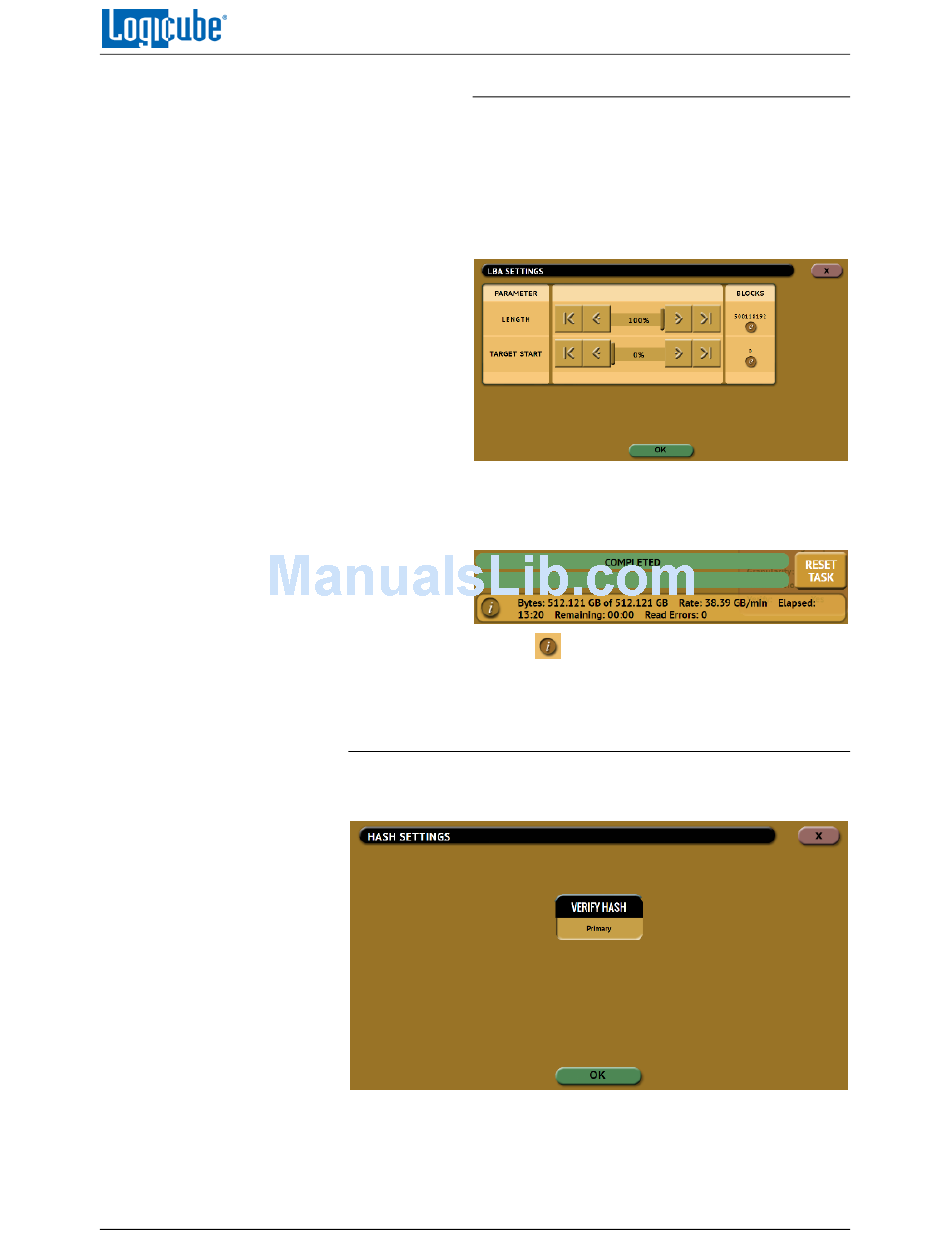

5.2.3.1.3 LBA

The LBA icon will bring up the LBA settings
screen. The user can adjust the percentage or
the number of blocks of the drive to hash and
where to start the hash. By default, the length is
set to 100% (whole drive) and the starting
percentage is set to 0% (start of the drive).
When the Talon Ultimate finishes hashing the
drive, the following screen will appear showing
the task completed.
Tap the
completed screen to see both the expected hash
value and the computed hash value.

5.2.3.2 Case Verify

If Drive Hash mode was chosen, the Hash Settings screen will
appear:
There are two settings in the Verify Hash screen:
Primary – Will verify just one hash value (For example, if SHA-1
or MD5 was selected during the image process).
TYPES OF OPERATIONS
(Info) icon on the left of the
53
