Most of the Talon Ultimate ports are hot swappable. Some drives are not hot
swappable. Please check with the drive manufacturer to find out if the drive
being used does not support hot swapping.
Source drives do not have to be connected in any order. For example, if the
Multi-Tasking option is purchased and installed, a single SATA Source drive does
not have to be connected to the SAS/SATA S1 port. It can be connected to the
SAS/SATA S2 port without having anything connected to the S1 port.
Logicube Talon Ultimate™ User's Manual

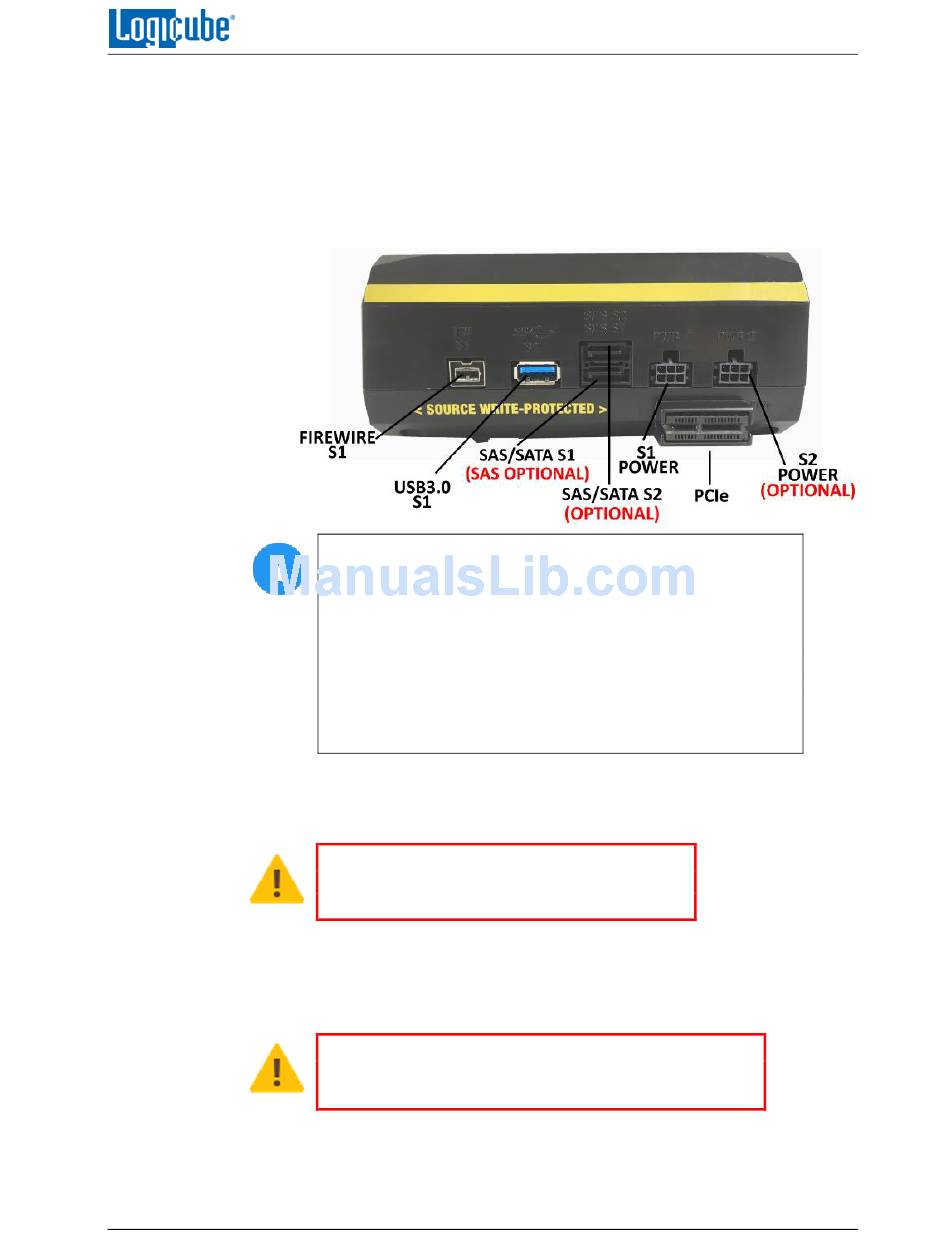

SAS S2 – SAS/SATA data port for the Source 2 (S2) position (Optional).
PWR 1 – Power port for SAS S1.
PWR 2 – Power port for SAS S2 (Optional).
SS S1 – USB 3.0 SuperSpeed Source port.
FW S1 – FireWire Source port.
PCIe – For use with the optional PCIe Kit (F-ADP-T-PCIE-KT).
The following Source ports require optional software
activations for certain functions:
SAS S1 – Supports SATA drives as standard. Support for SAS
drives requires purchase of optional software activation.
SAS S2 – Requires purchase of Multi-Task Option to activate
this port. SATA support will be standard. SAS support
requires purchase of SAS option.
S2 POWER – Requires purchase of the Multi-task option.
The PCIe port is not hot-swappable. Always
turn the Talon Ultimate off when connecting
or disconnecting drives through the PCIe port.
Never connect a suspect or Source drive to the
Destination ports of the Talon Ultimate. Data may be
overwritten if a drive is connected to a Destination port.
