Chapter 4: Operation of Web- based Management
Refresh Interval is used to set the update frequency. Default update time is 3
seconds.
4.3.11

Detail Counter

The function of Detail Counter collects any information and provides the
counting about the traffic of the port, no matter the packet is good or bad.

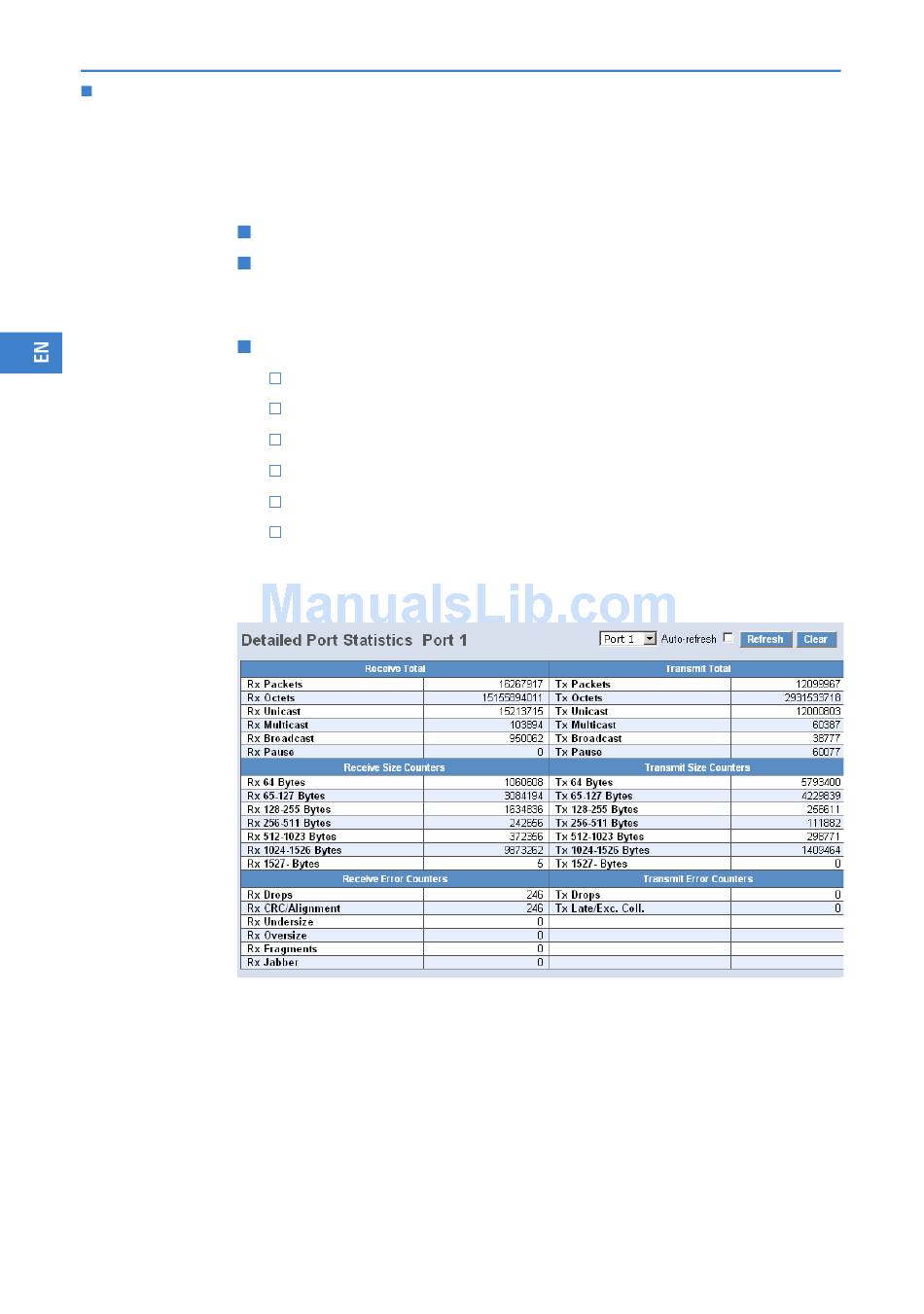

In the following figure the window can show only one port counter informa-
tion at the same time. To see another port's counter, you have to pull down
the list of Select, then you will see the figures displayed about the port you
had chosen.
52
Function name: Simple Counter
Function Description: Display the summary counting of each port's traffic,
including Tx Byte, Rx Byte, Tx Packet, Rx Packet, Tx Collision and Rx Error
Packet.
Parameters Description:
Tx Byte: Total transmitted bytes.
Rx Byte: Total received bytes.
Tx Packet: The counting number of the packet transmitted.
Rx Packet: The counting number of the packet received.
Tx Collision: Number of collisions transmitting frames experienced.
Rx Error Packet: Number of bad packets received.
