Chapter 4: Operation of Web- based Management
The Information of Page Layout

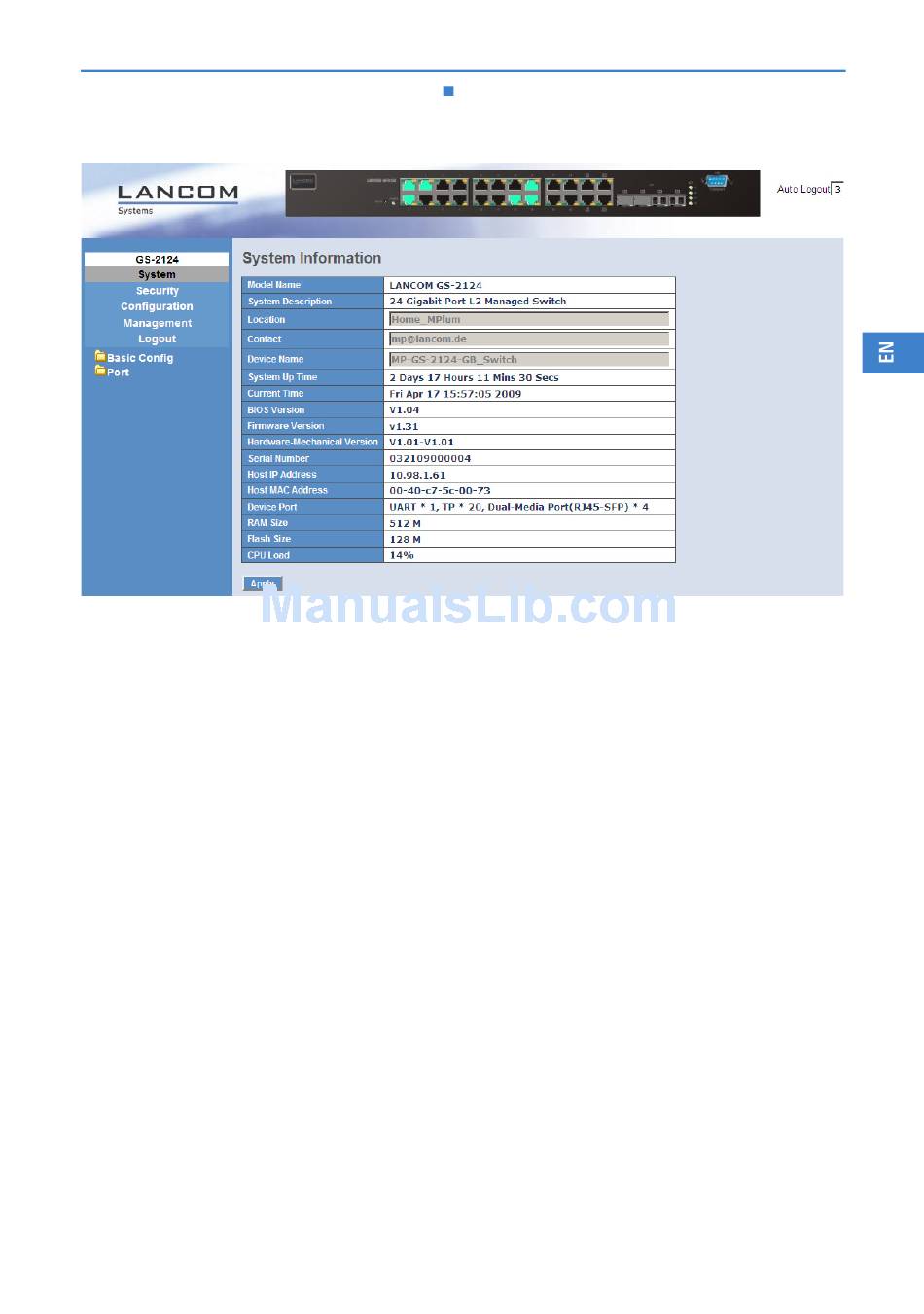

On the top side, it shows the front panel of the switch. In the front panel, the
linked ports will display green; as to the ports, which are link off, they will be
dark. For the optional modules, the slot will show only a cover plate if no
module exists and will show a module if a module is present. The image of
module depends on the one you inserted. The same, if disconnected, the port
will show just dark, if linked, green.
In this device, there are clicking functions on the panel provided for the infor-
mation of the ports. These are very convenient functions for browsing the
information of a single port. When you click on the front panel of the port, an
information window for the port will pop up.
