²
LINK / ACT LED
Port 1 to 24
¶
10/100/1000
Mbps LED
º
SFP (LINK/ACT)
LED
2.3.2

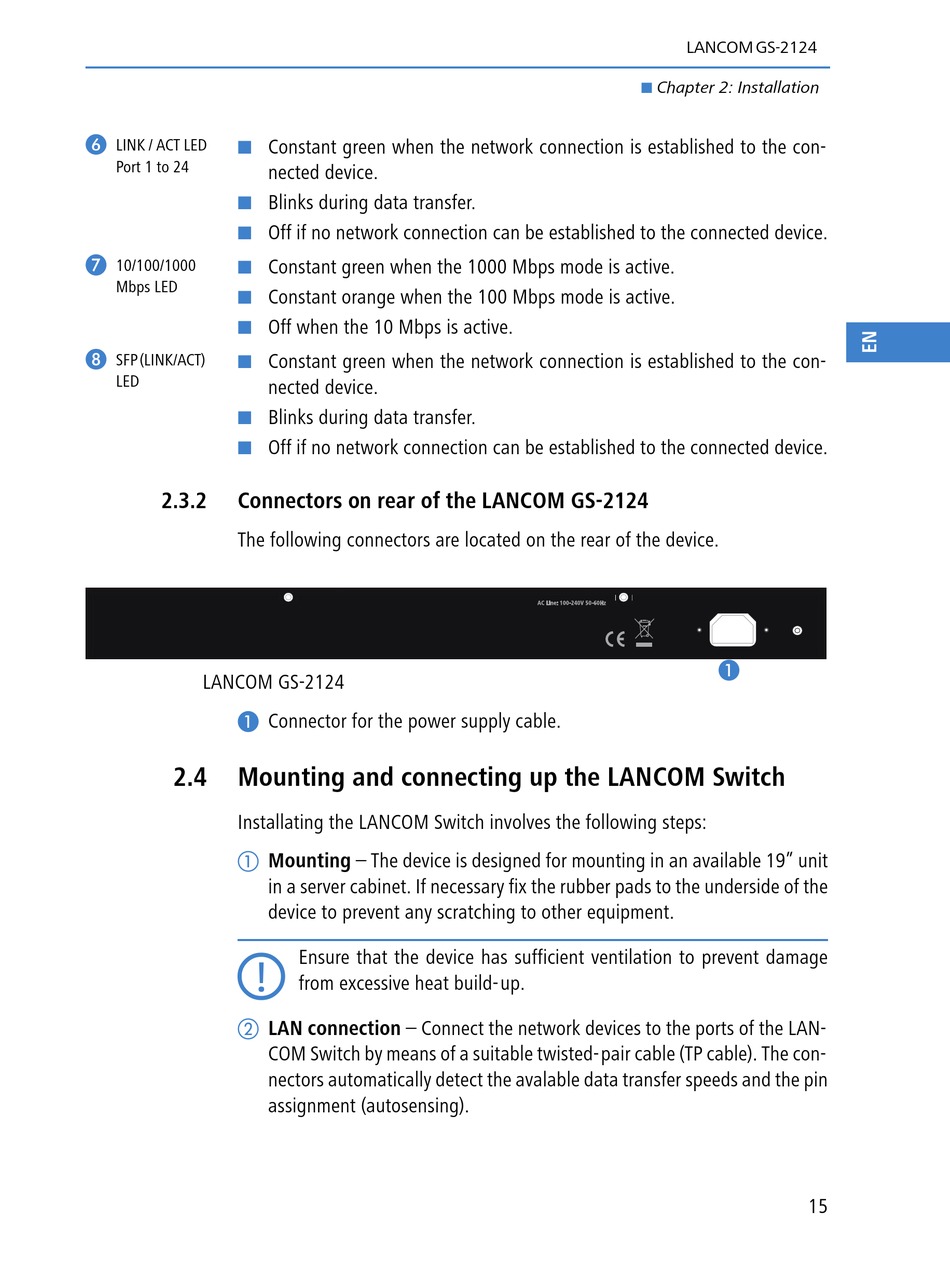

Connectors on rear of the LANCOM GS-2124

The following connectors are located on the rear of the device.
LANCOM GS-2124
³
2.4

Mounting and connecting up the LANCOM Switch

Installating the LANCOM Switch involves the following steps:

Constant green when the network connection is established to the con-
nected device.
Blinks during data transfer.
Off if no network connection can be established to the connected device.
Constant green when the 1000 Mbps mode is active.
Constant orange when the 100 Mbps mode is active.
Off when the 10 Mbps is active.
Constant green when the network connection is established to the con-
nected device.
Blinks during data transfer.
Off if no network connection can be established to the connected device.
Connector for the power supply cable.
Mounting – The device is designed for mounting in an available 19" unit
in a server cabinet. If necessary fix the rubber pads to the underside of the
device to prevent any scratching to other equipment.
Ensure that the device has sufficient ventilation to prevent damage
from excessive heat build-up.
LAN connection – Connect the network devices to the ports of the LAN-
COM Switch by means of a suitable twisted-pair cable (TP cable). The con-
nectors automatically detect the avalable data transfer speeds and the pin
assignment (autosensing).
LANCOM GS-2124
Chapter 2: Installation
³
15
