Connector
PWR
IMU
COM
I/O 1
Copyright © Applanix Corporation, 2017
POS MV V5 Installation and Operation Guide

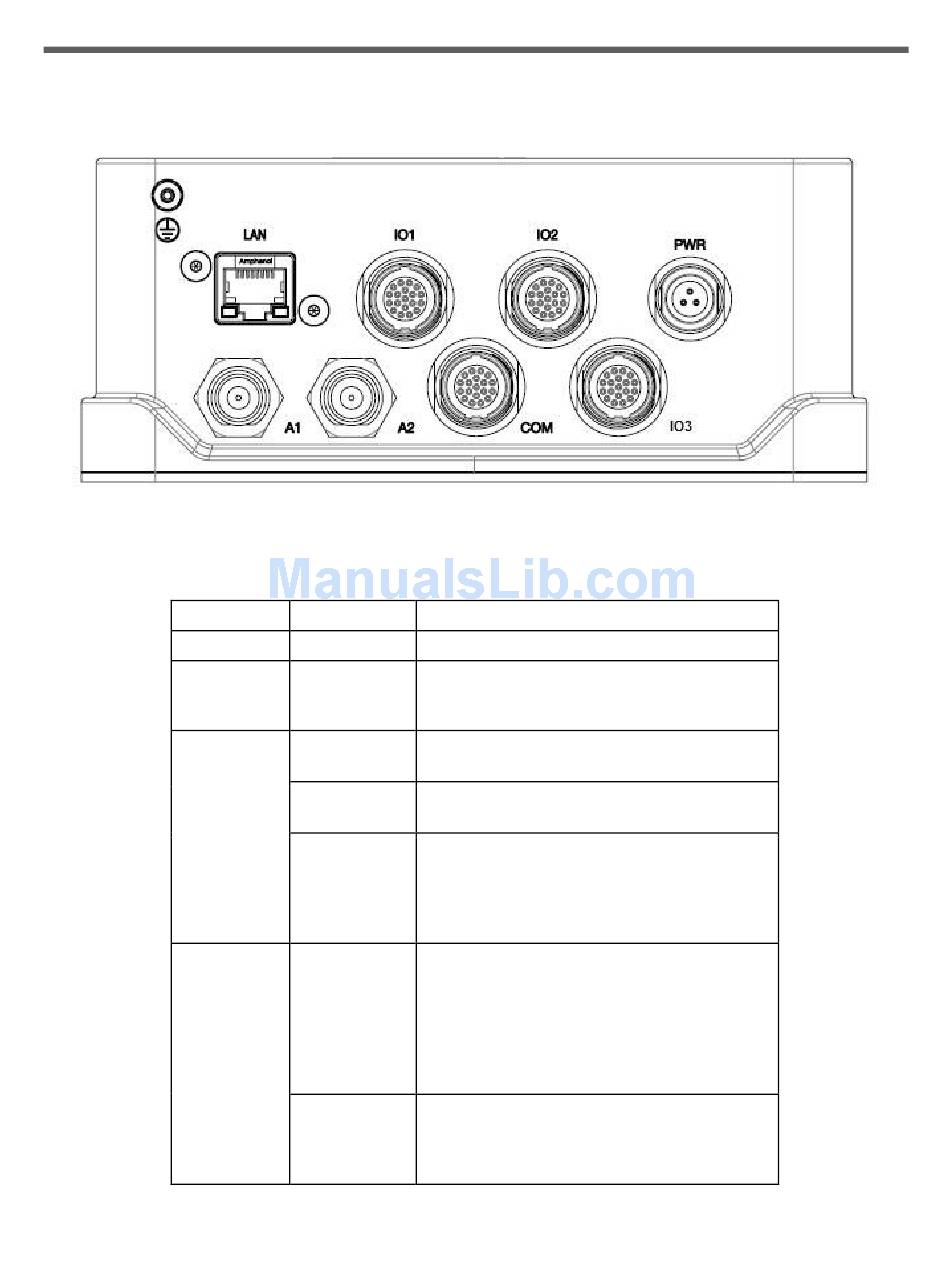

Figure 9: PCS Rear Panel – POS MV V5-2

Table 5: Connector and Port Summary

Port
Connects to a customer source
• RS-422 serial I/O data port
• Supplies dc power to IMU
• Not applicable to POS MV V5-2
COM (1) RS-232 Serial I/O port (digital) with
Tx/Rx/CTS/RTS
COM (2) RS-232 Serial I/O port (digital) with
Tx/Rx/CTS/RTS
• Optically isolated digital input, 3 to 50 Vdc
PPS In
signal level, 1 mA maximum input current
requirement
• Only effective if external GNSS option is
enabled through POSConfig
• RS-232/422 Serial I/O port (digital) with
COM (3)
Tx/Rx only
• Software control of 232 / 422 switch
• Software switch to connect with Primary
GNSS receiver COM 1 for software
upgrade - contact Applanix Customer
Support for details
DIO - Event 1 • Optically isolated digital input, 3 to 50 Vdc
signal level, 1 mA maximum input current
requirement
• Event 1 time tagging
Description
Installation
2-15
