Figure 31: Input/Output Ports Set-Up - Gnss 1 Interface; Figure 32: Input/Output Ports Set-Up - Gnss 2 Interface - Applanix POS MV V5 Installation And Operation Manual

POS MV V5 Installation and Operation Guide
System
Configuration
The GNSS connection for firmware upgrades requires 2-way communication, hence selecting GNSS 1/2
on either the Input or Output will automatically reserve both for that function.
4-20

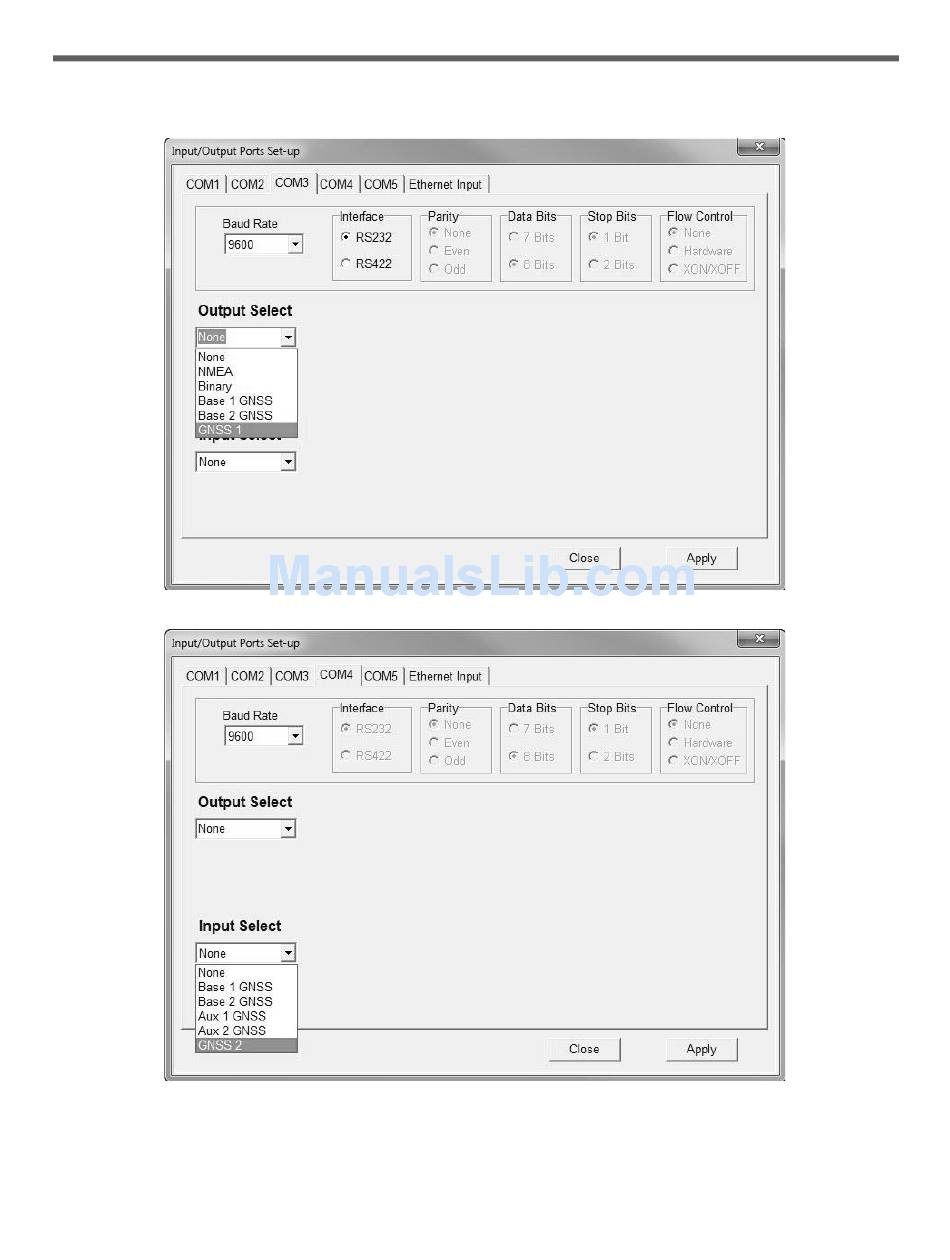

Figure 31: Input/Output Ports Set-up – GNSS 1 Interface
Figure 32: Input/Output Ports Set-up – GNSS 2 Interface
