The Base GNSS pane indicates the status of received data on the base GNSS COM port. A green light
indicated no problems; a red light indicates a problem.
Message Log

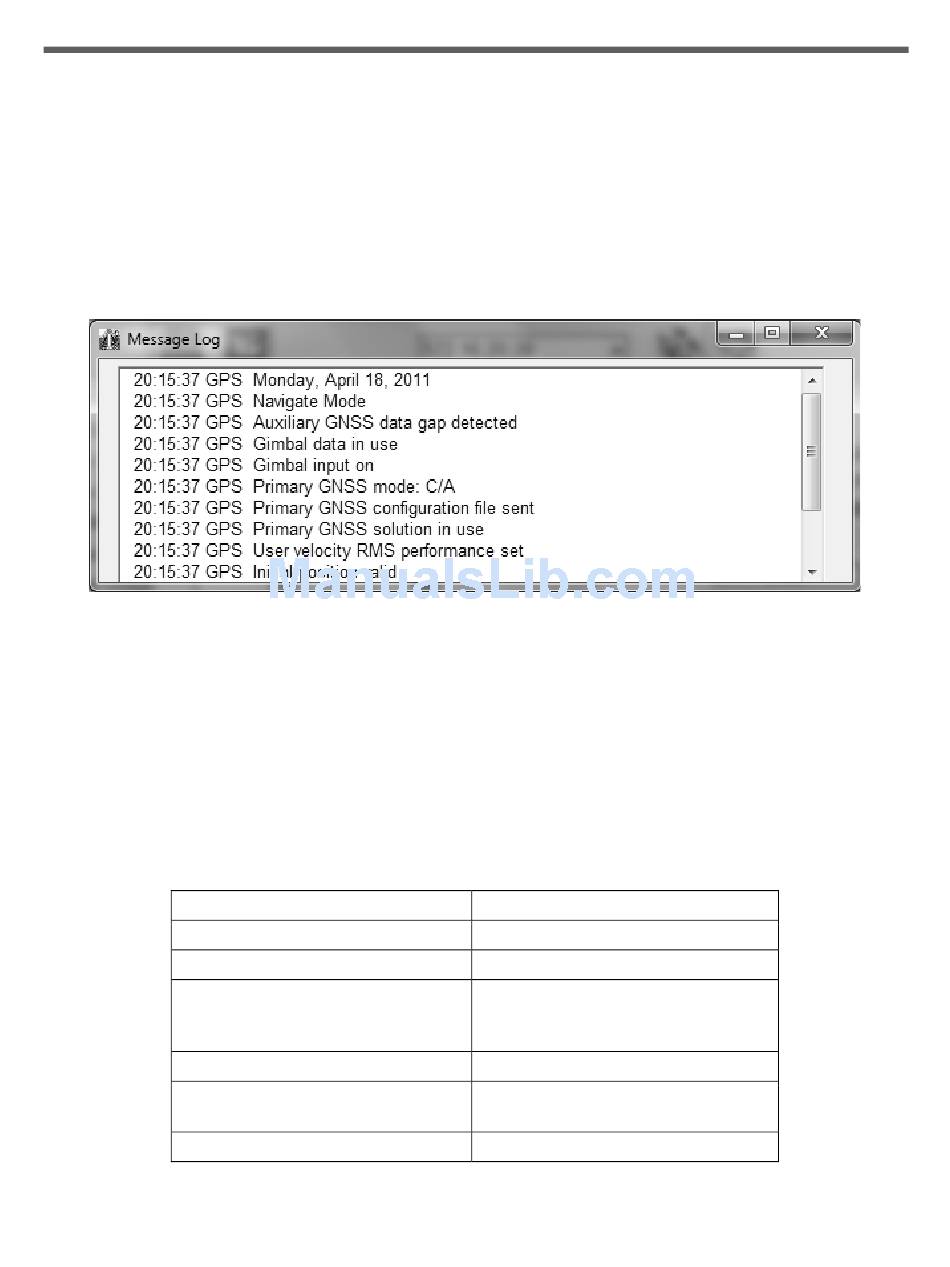

Access the Message Log by selecting View, Message Log from the MV-POSView menu bar, see
Figure 64.
Table 36 contains messages that can appear in the message log. Messages marked with an asterisk (*)
relate to indicators on the Fault Detection window.
Note: Some cases of incorrect GNSS configuration is handled automatically if the GNSS automatic
reconfiguration feature is enabled (select Enabled in the Auto Configuration pane on the GNSS
Receiver Configuration window). The automatic reconfiguration logic checks for expected messages
from the GNSS receiver, and will send a configuration command to the receiver if the expected messages
are not present. The contents of messages are not checked.
*PPS data not received
PPS data received
HDOP data not received
HDOP data received
*Ephemeris data gap detected
Ephemeris data gap cleared
Copyright © Applanix Corporation, 2017
POS MV V5 Installation and Operation Guide

Figure 64: POSView Message Log

Table 36: Message Log Entries

Message Text
Description
Time recovery data not received
Flag reset
Dilution of precision data not
received; receiver not configured
properly; send configuration file
Flag reset
There is a gap in GNSS data; Short
periods when this occurs are normal
Flag reset
Fault
Identification
