POS MV V5 Installation and Operation Guide
System
Operation

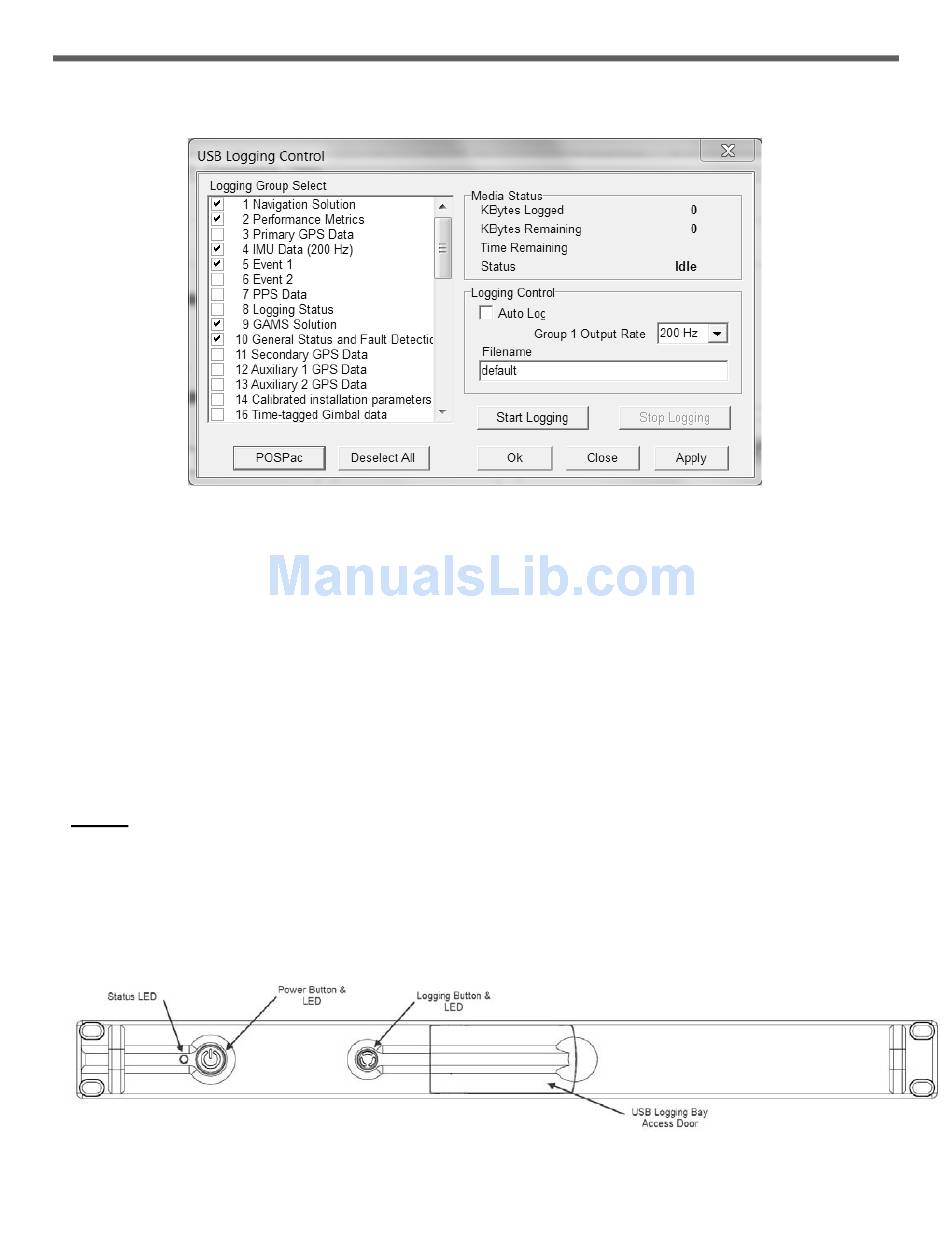

Figure 46: USB Logging Control

Note: If the logged data are to be used with POSPac, click the POSPac button to select all the groups
required for post-processing.
Data Logging – Removable Media
Insert a USB flash drive
The USB flash drive can be inserted into the PCS at any time (i.e. with PCS power on or off). Both V5 and
V5-1 versions have the removable USB connector behind a door on the front of the PCS but the internal
mechanism is different.
MV V5
Open the spring loaded USB access door on the front of the PCS all the way and it will stay open on its
own. Insert the USB flash drive into the bay (Figure 48) ensuring that the card is facing up, Applanix logo
showing. The logging bay door should close without hitting the USB flash drive if it is properly seated in
the connector.
Figure 47: Removable Media Bay – POS MV V5
5-12
