POS MV V5 Installation and Operation Guide
Installation
COM connectors, which support a multi-connector breakout cable. Table 5 provides a summary of the
connectors used in the POS MV configuration.
The POS MV V5-2 PCS footprint is shown in Appendix E . There are nine connectors located on the rear
panel of the PCS, see Figure 9. Each rear panel connector supports a single cable except for the I/O and
COM connectors, which support a multi-connector breakout cable. Table 5 provides a summary of the
connectors used in the POS MV configuration.

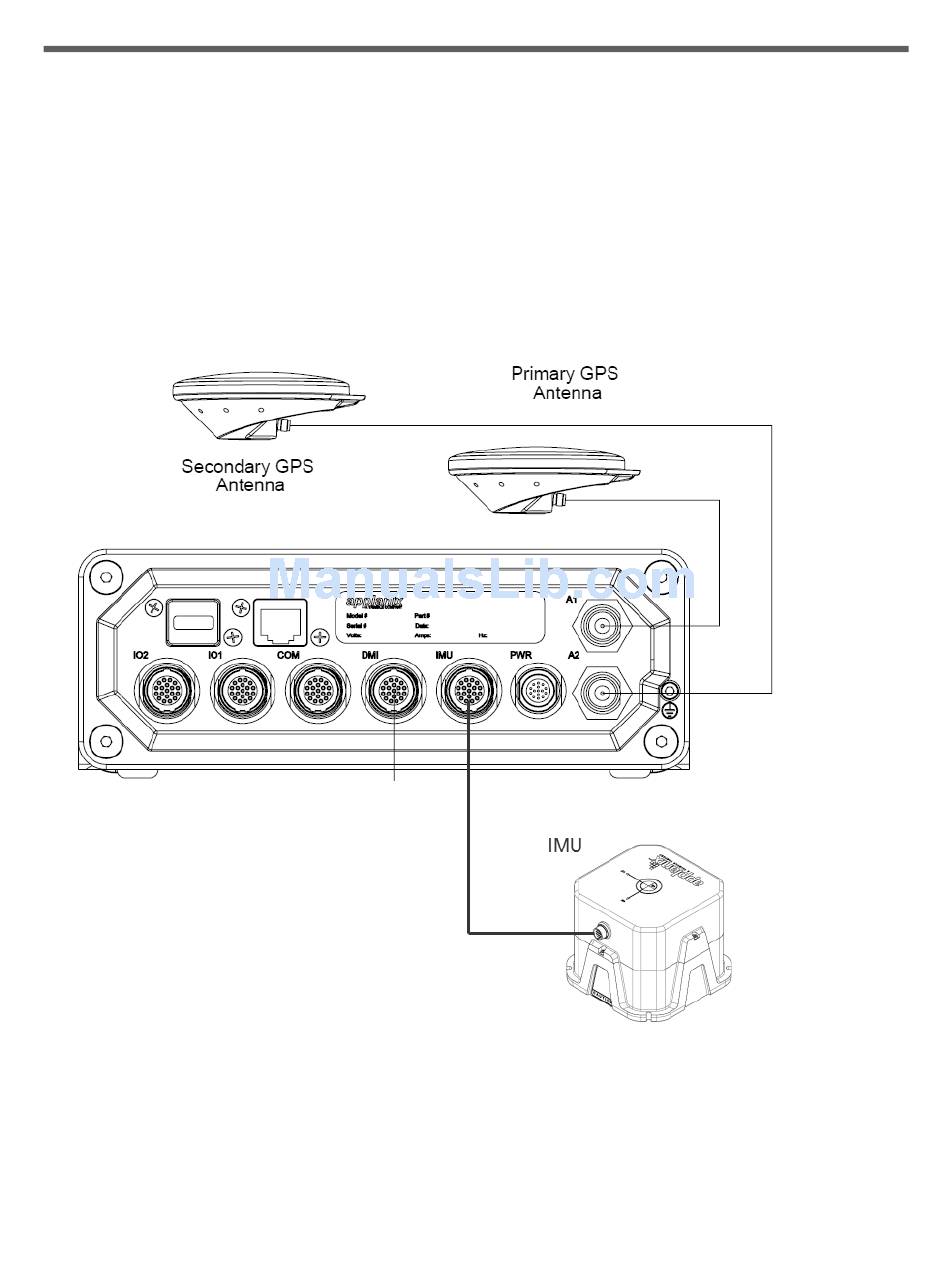

Figure 8: PCS Rear Panel – POS MV V5-1
2-14
