POS MV V5 Installation and Operation Guide
System
Configuration
Configuration Data
To configure the POS MV consult the list of installation parameters that was created as you progressed
through the physical installation. Refer to the Installation Parameters description starting on page 2-24 for
detailed instructions.
Configuration - Initial
Note: Select the standby mode prior to changing lever arm or mounting angle values.
From the menu bar of the MV-POSView Controller program, select Settings, Installation, Lever Arms &
Mounting; the Lever Arms & Mounting Angles tab is displayed (see Figure 20). Use metres for lever
arm distances and degrees for misalignment angles.
In circumstances where you do not have the complete set of installation parameters, you must at least
enter values in the Ref. to IMU Lever Arm and the Ref. to primary GNSS Lever Arm panes. This basic
information allows the system to supply useful data to the multibeam sonar.

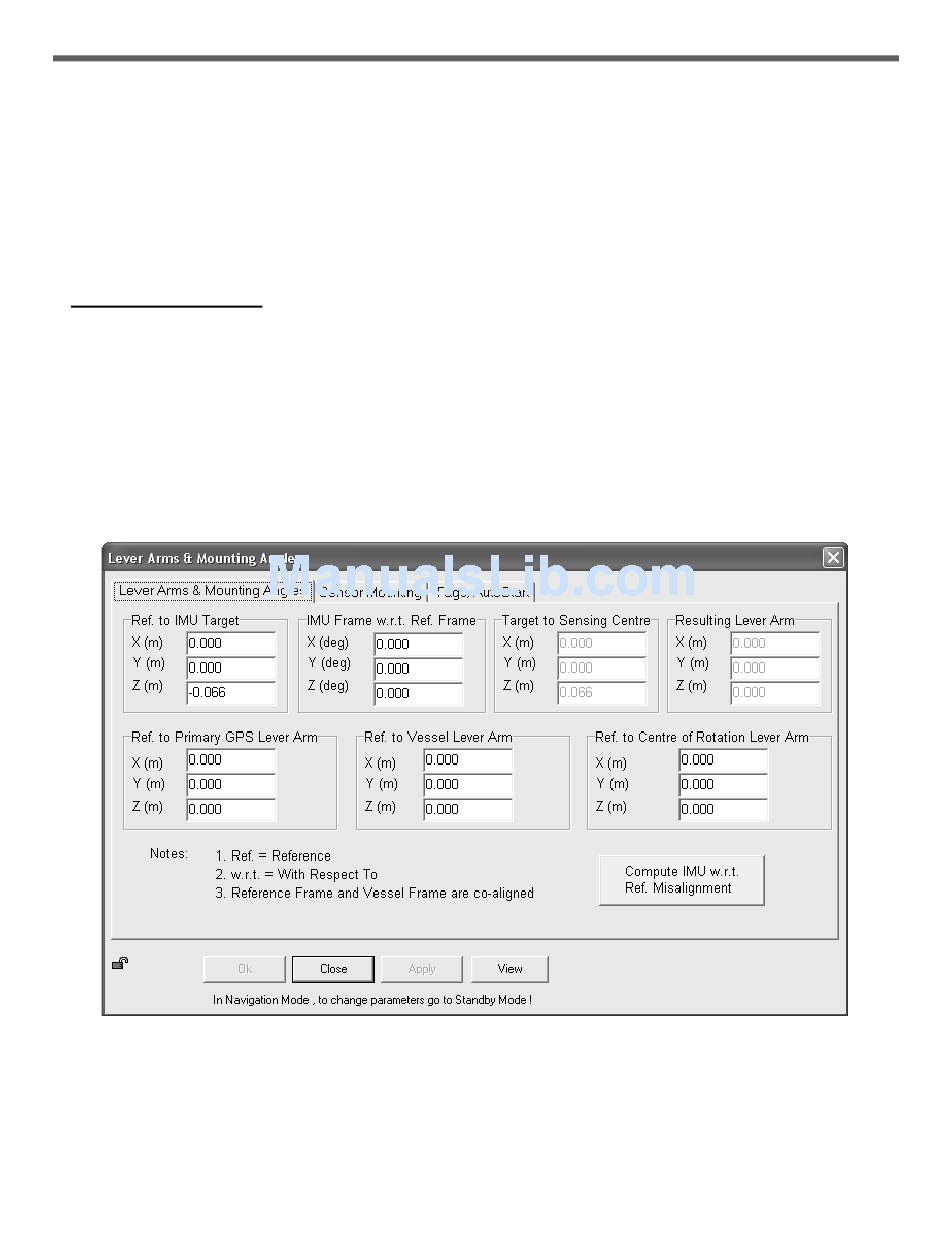

Figure 20: POSView Lever Arms & Mounting Angles Tab
Next, select the Sensor Mounting tab (Figure 21) and enter the values for the lever arm distances and
mounting angles. Once these values are entered, select the OK button.
4-8
