Figure 56: Posview Binary Diagnostics - Applanix POS MV V5 Installation And Operation Manual

Control Diagnostics
Diagnostic values that are entered and enabled for the digital ports will replace any real-time attitude
information on those channels. To resume normal operation, disable the diagnostic output for the relevant
channel.
Enter and enable diagnostic values by following the steps below. The diagnostic values that are entered
have no effect on the configuration of affected ports; refer to Figure 56.
1. On the MV-POSView menu bar, select Settings, Diagnostics Control, Binary to open the
Diagnostics window.
2. Select the appropriate tab and enter the diagnostic values for the displayed parameters in the
Operator Input pane.
3. Select the Enable option in the Output pane.
4. Select the OK or Apply button. The diagnostic values then appear on the appropriate output port,
using the current configuration for that port.
5. Return to normal operation by performing the following steps:
a) Set all values in the Operator Input pane to zero (optional)
b) Select the Disable option in the Output pane
c) Finally, select the OK or Apply button
Copyright © Applanix Corporation, 2017
POS MV V5 Installation and Operation Guide

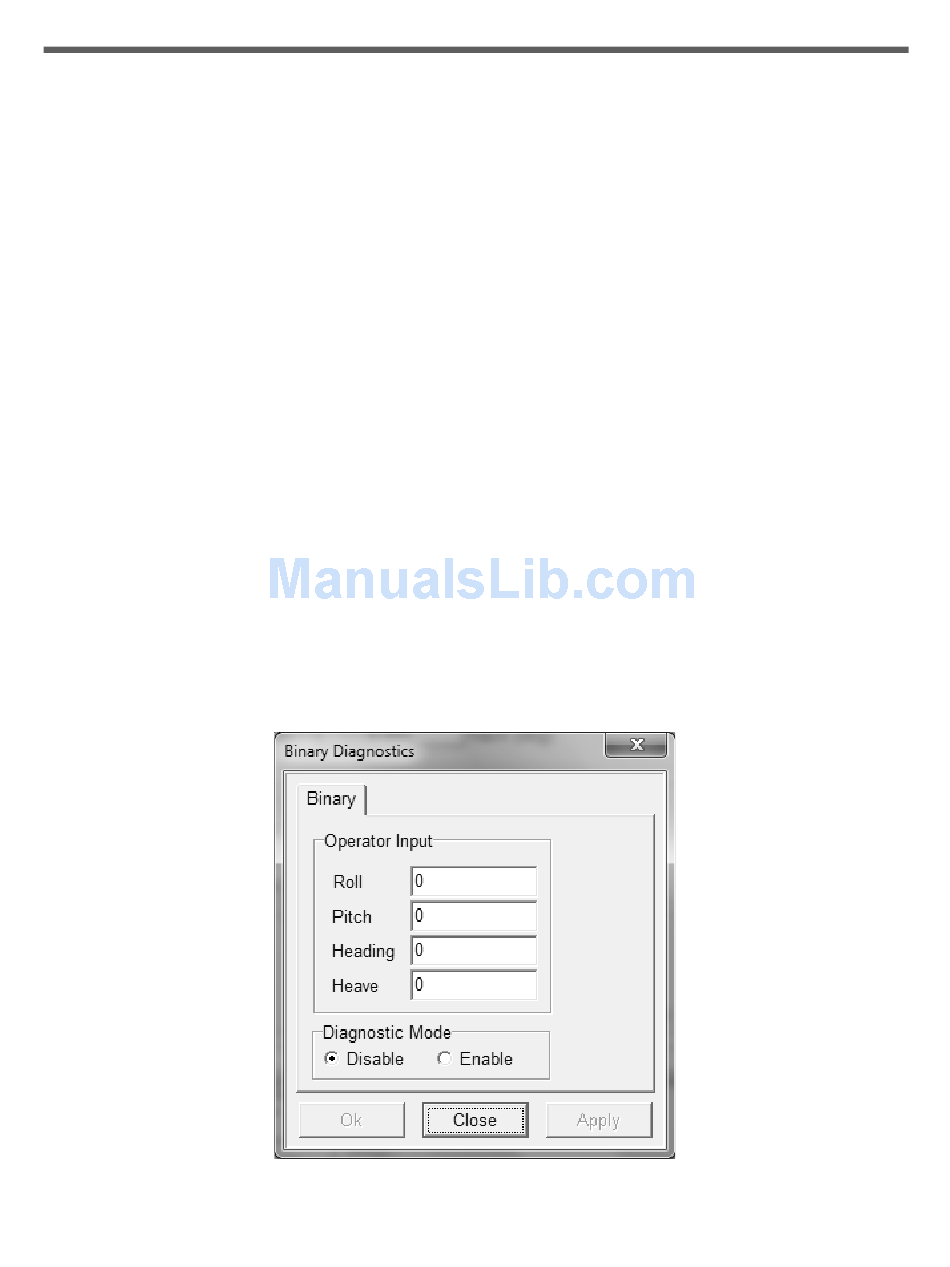

Figure 56: POSView Binary Diagnostics
