Display Diagnostics
Display diagnostics permit the operator to view selected POS MV real-time internal data as an aid to
debugging system problems. Select Diagnostics on the MV-POSView menu bar to display the following
selections:
• Primary GNSS
• Secondary GNSS
• Base GNSS (Base 1 and Base 2)
• Aux GNSS
• Control Port
Contact Applanix Customer Support for assistance, see page A-1
Base 1/2 GNSS Diagnostics
The PCS provides a diagnostic window for input differential corrections. This window provides information
that can aid in diagnosing problems related to input differential corrections. Separate windows for Base
1/2 corrections can be viewed by navigating to Diagnostics, Base GNSS from the menu bar. An
example of this window is shown in Figure 57 below.
The Summary tab, shown in Figure 57 above, provides a summary of diagnostics information. This tab is
split into four main categories: Status, Base Messages, Diagnostics, and Message Faults.
8-4
• Display, Data & NVM
• Time & Pulses
• IMU
• NMEA & Binary Output
• Other

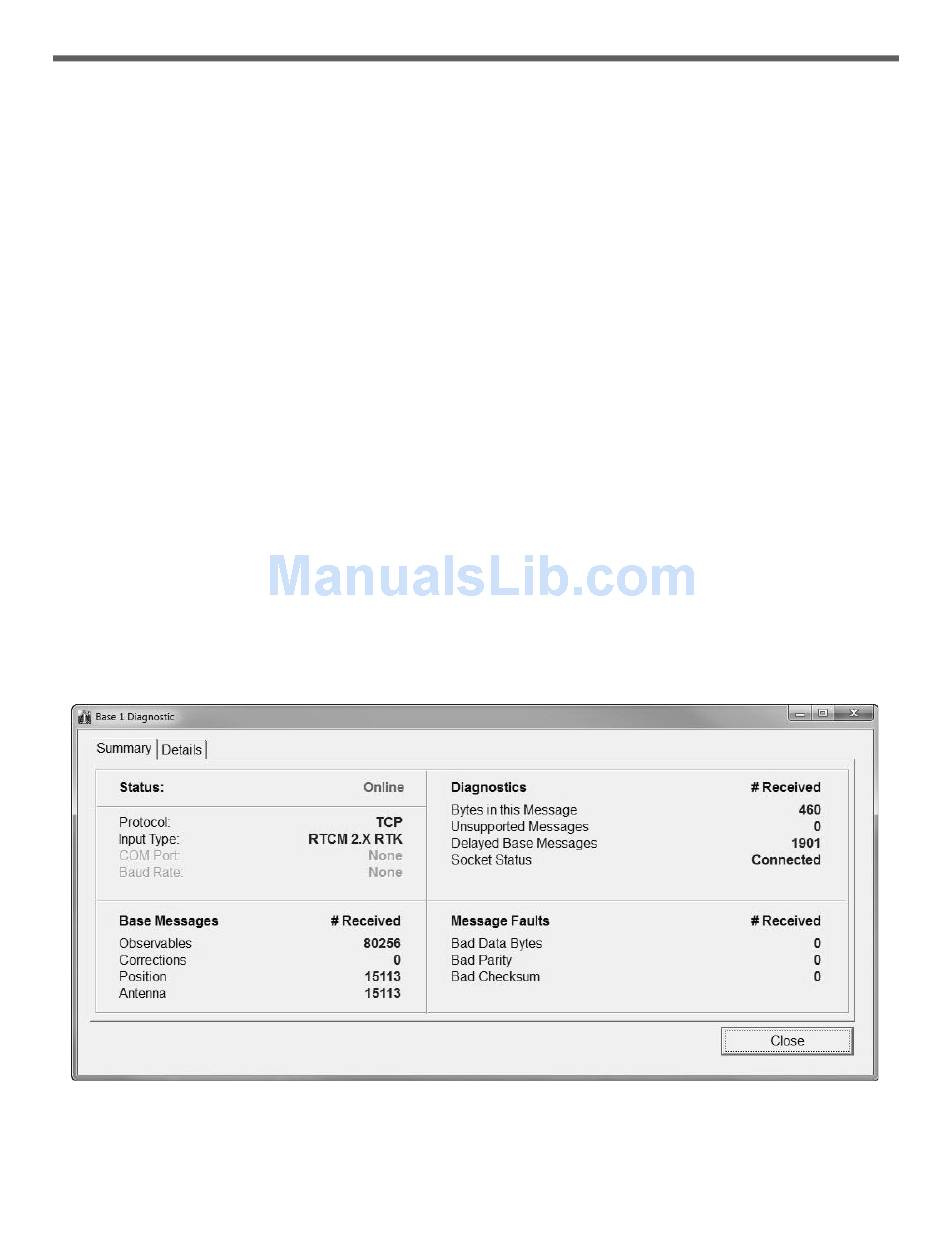

Figure 57: Base 1/2 Diagnostics Window
