POS MV V5 Installation and Operation Guide
Theory
of Operation

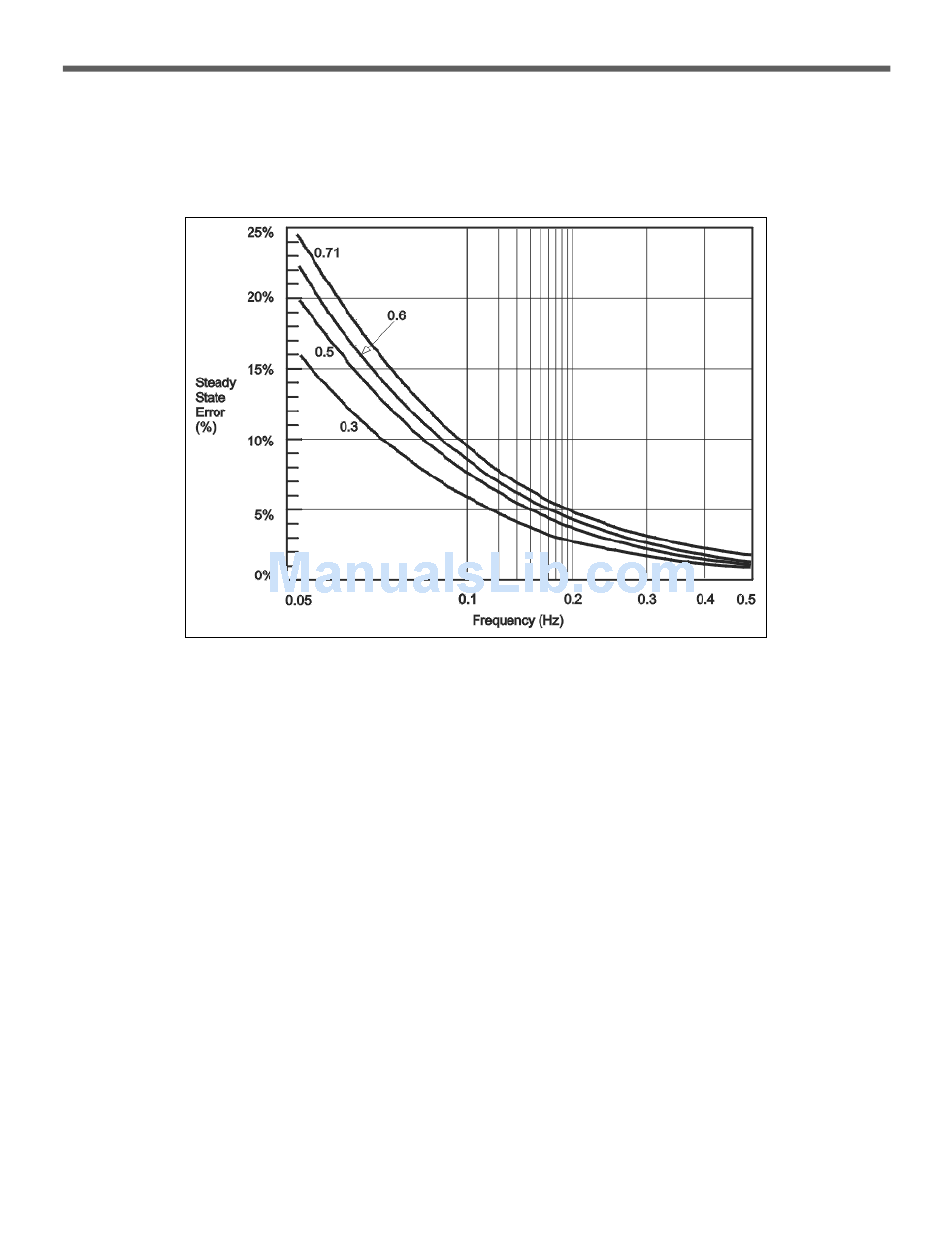

Figure 86 shows a plot of steady state heave error as a percentage of heave amplitude against heave
frequency for four damping ratios at the default corner heave bandwidth of 20 seconds.
Figure 86: Percentage Steady State Error with Damping Ratio
B-15
Copyright © Applanix Corporation, 2017
