POS MV V5 Installation and Operation Guide
System
Operation
names for the primary internal logging are managed using the same MV-POSView controls as for the
typical USB logging.
To access the logging configuration and control menus, select one of the following from the MV-POSView
menu: Logging, Ethernet Logging... or Logging, USB Logging....
The logging screens (Figures 45 and 46) permit the selection of data groups to be recorded and define
the logging rate for those data groups.
The Ethernet logging port is intended for data logging for a delayed processing application where data
loss cannot be tolerated. This port implements a very large storage buffer to minimize the risk of data
loss.
The logging method, Ethernet or Removable media, is changeable at any time, even if logging is in
progress. To accept the screen parameters and not close the screen, click the Apply button. To accept
the screen parameters and close the screen, click the OK button.

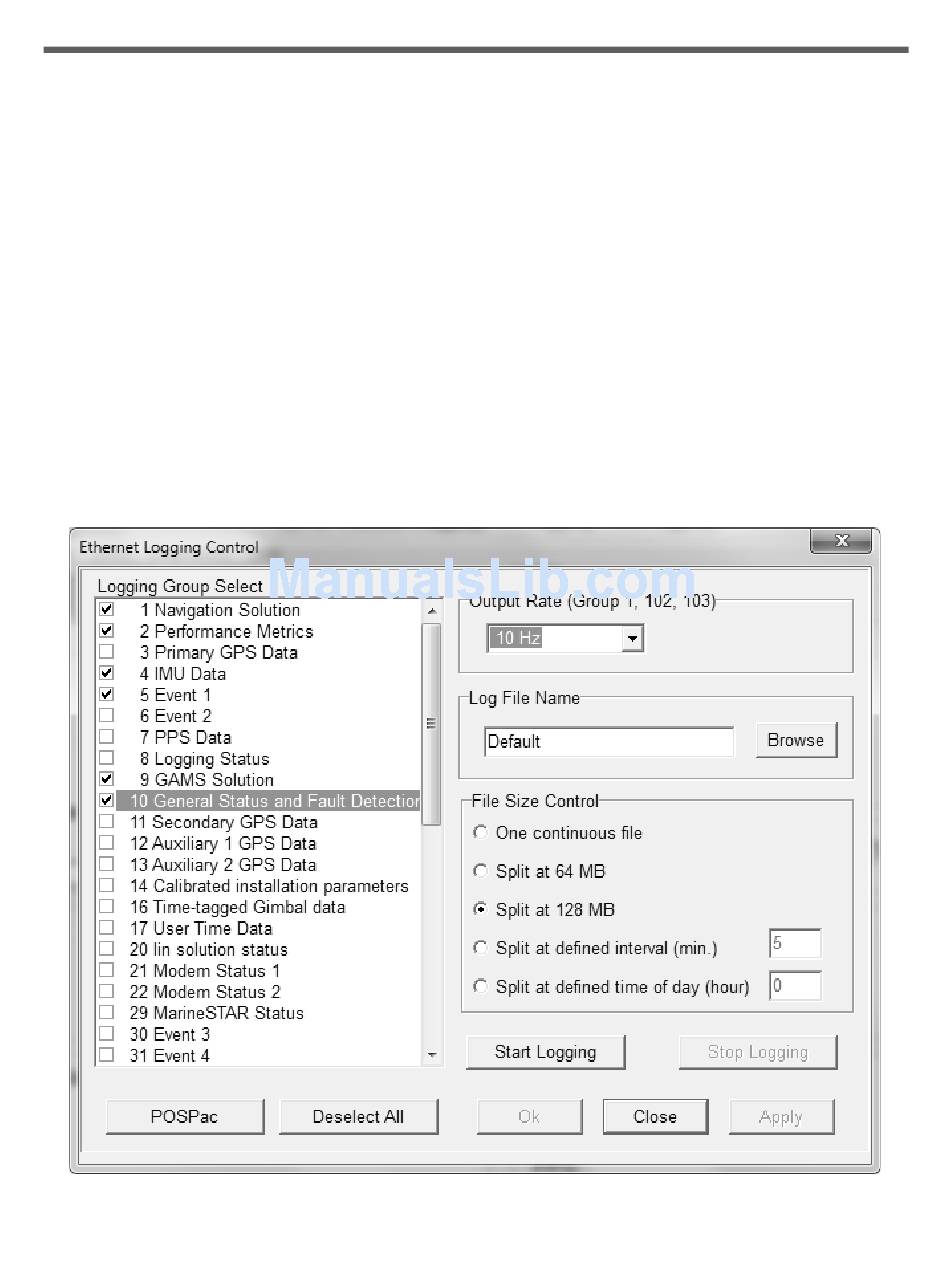

Figure 45: Ethernet Logging Control
