Figure 21: Posview Sensor Mounting Tab - Applanix POS MV V5 Installation And Operation Manual

POS MV V5 Installation and Operation Guide
System
Configuration
Note: These settings become active immediately. To save the settings to non-volatile memory, select
Settings, S ave Settings . This permits the system to initialize using these installation parameters
whenever the PCS is powered-on.
Note: Any changes made to the IMU or the Global Navigation Satellite System (GNSS) lever arm
parameters will cause the fields to reset and begin again automatically.
Note: The Compute IMU w.r.t Ref. Misalignment option provides a tool that allows converting of
measured roll, pitch, and heading of IMU in Vessel frame and automatically compute and populate the
correct values for "IMU Frame w.r.t Ref. Frame" in Figure 18.

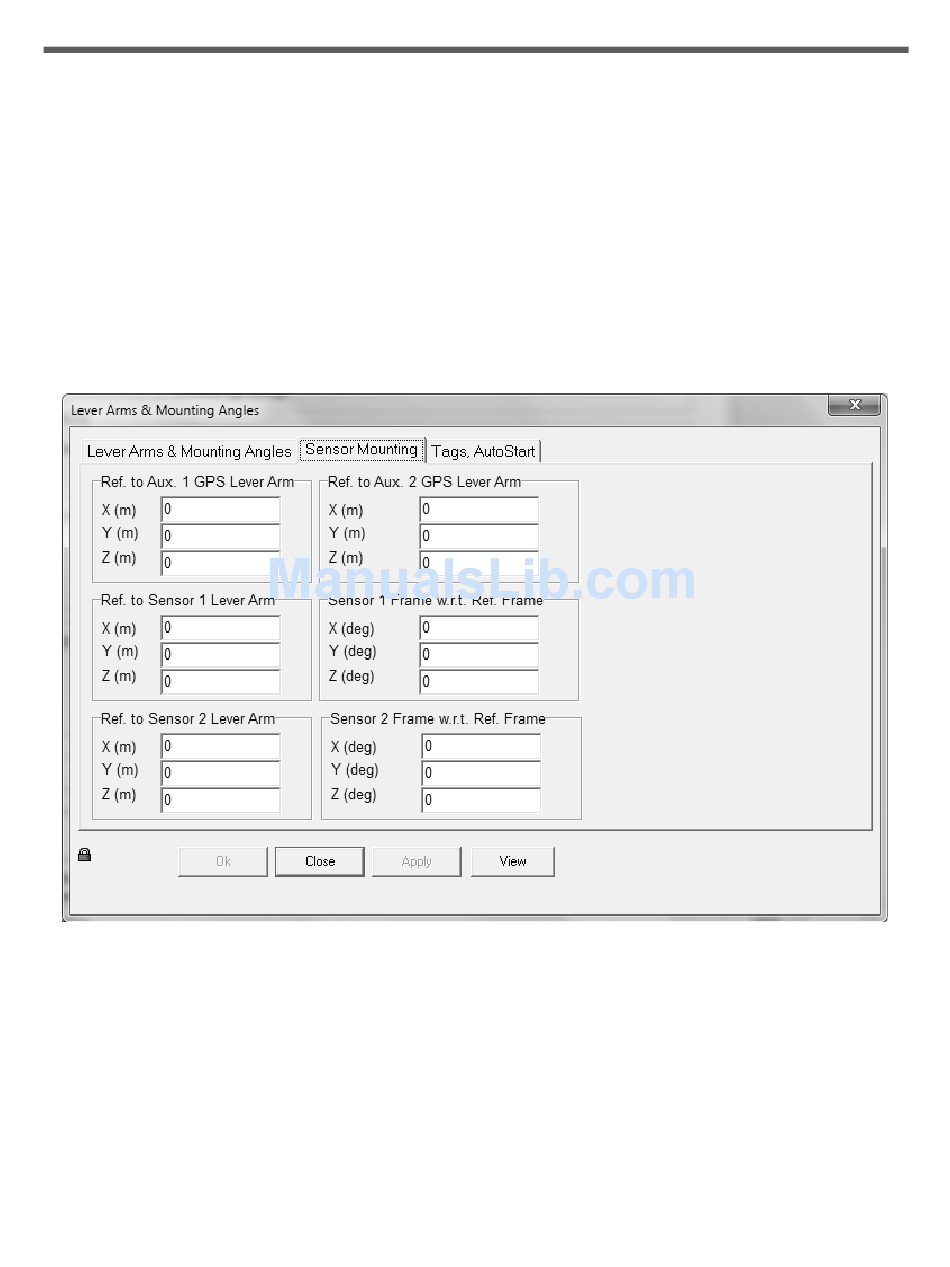

Figure 21: POSView Sensor Mounting Tab

GAMS Parameters are entered separately in Settings, Installation, GAMS Parameter Setup. If user
knows the vector from phase centre of primary antenna to phase centre of secondary antenna in vehicle
frame, they enter it directly without having rely on calibration procedure outlined on page 4-21.
