POS MV V5 Installation and Operation Guide
Fault
Identification
4. Check that baud rate is sufficient to transmit data selected.
5. Check serial cable integrity.
6. Disconnect remote end of cable from sonar or other receiving equipment and connect cable to
PC running serial program (e.g. ProComm or Hyper Terminal). Adjust baud and protocol to match
PCS output settings. If data received from POS, problem is receiving equipment.
To check the input functions (Base GNSS and Auxiliary GNSS) perform the following steps:
1. Select Diagnostics, Base GNSS, Base 1 or 2, or Diagnostics, Aux GNSS from controller menu
bar, see Figure 78.
2. Check Bytes Received field. If no
bytes received, may indicate PCS
hardware interface problem; try
another COM port. Reassign Base
or Aux GNSS input to unused
COM port. If communications
restored, note defective COM port
for future reference.
3. Check serial cable integrity.
4. Disconnect PCS end of serial
cable and connect to PC running a serial program (e.g. ProComm or Hyper Terminal). Adjust
baud and protocol to match Base GNSS or Aux GNSS output settings. If data received from
GNSS, problem is PCS.
9-32

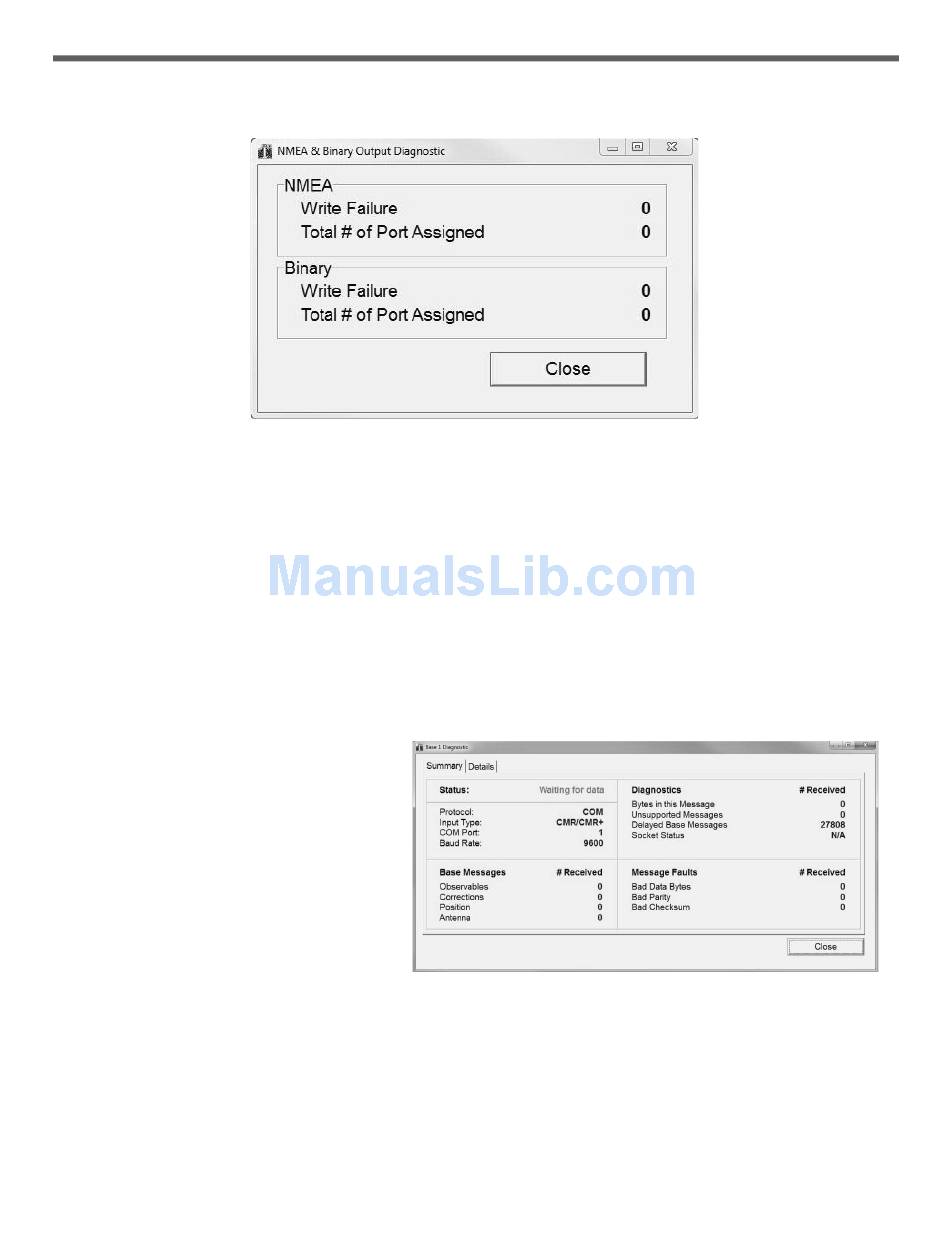

Figure 77: POSView NMEA & Binary Output Diagnostic

Figure 78: POSView Base 1 Diagnostic
