Figure 11: Com Connector Pin Arrangement; Table 7: Com Connector Pin Assignment; Table 8: Com Connector Com Port Configuration - Applanix POS MV V5 Installation And Operation Manual

POS MV V5 Installation and Operation Guide
Installation
I/O Pin
10
11
9, 12
Physical Interface
To ensure data integrity, use high quality RS-232 cable with its shielding connected through the back
shell to ground at both cable ends.
Interface Configuration
Table 8 identifies the possible configurations for the COM connector COM ports (default in bold).
2-18

Table 7: COM Connector Pin Assignment

Pin Description
1 COM 1 Rx
3 COM 1 Tx
4 COM 1 RTS
2 COM 1 CTS
Signal Ground
8 COM 2 Rx
6 COM 2 Tx
5 COM 2 RTS
7 COM 2 CTS
Signal Ground
Reserved – do not
connect
POS MV Receptacle:
Lemo HEN.2F.312.CLNP
12 pin female (shown)
Cable Plug:
Lemo FGN.2F.312.CLC

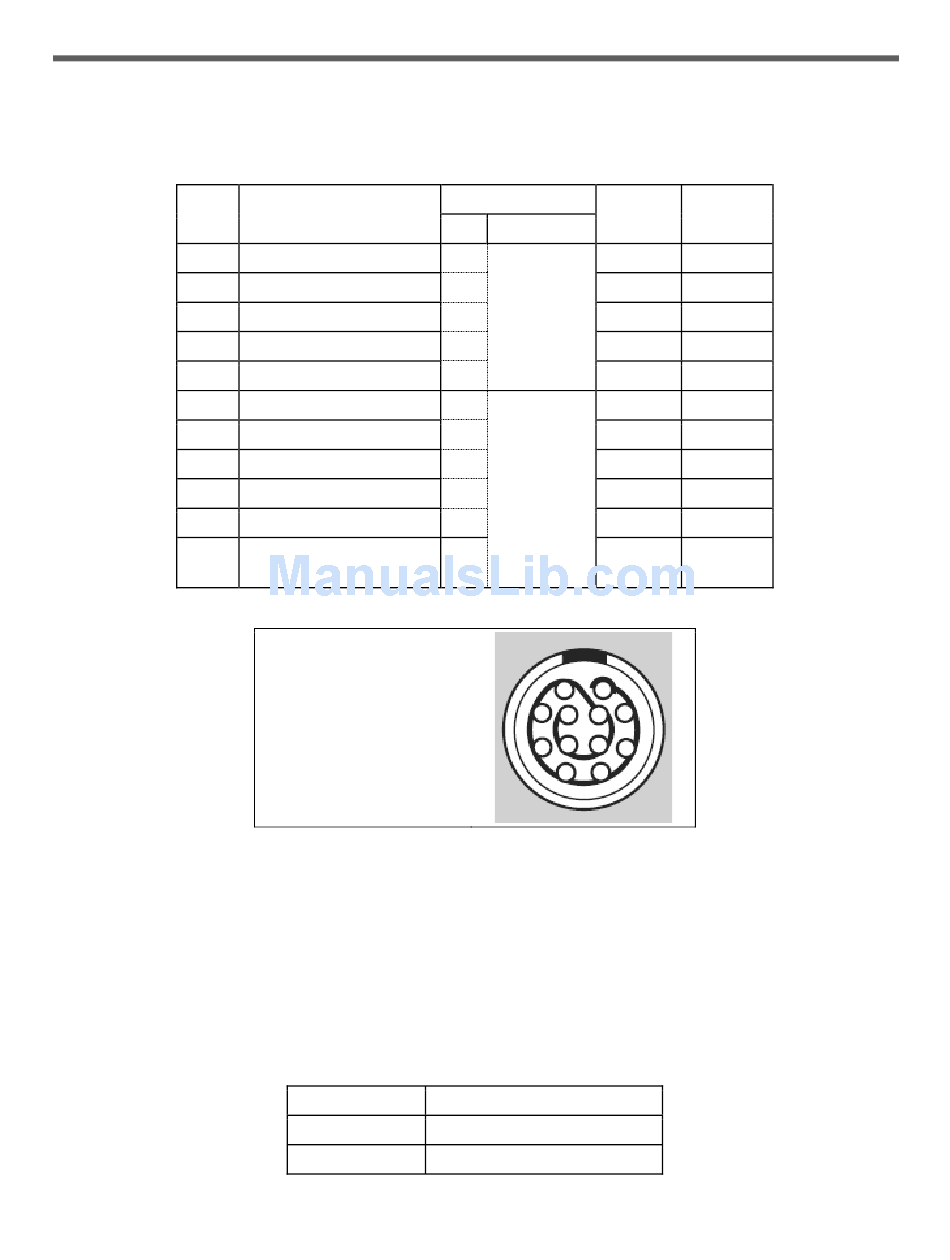

Figure 11: COM Connector Pin Arrangement

Table 8: COM Connector COM Port Configuration

Setting
Baud Rate
Parity
I/O Cable Mapping
PIN Connector
2
3
DE-9
7
(Male)
8
Common
5
2
3
7
DE-9
8
(Male)
Common
5
4,12
Value
2400 to 115200 (9600)
None, Even, Odd
Signal Signal
Type Direction
RS232 Input
RS232 Output
RS232 Output
RS232 Input
Common
RS232 Input
RS232 Output
RS232 Output
RS232 Input
Common
