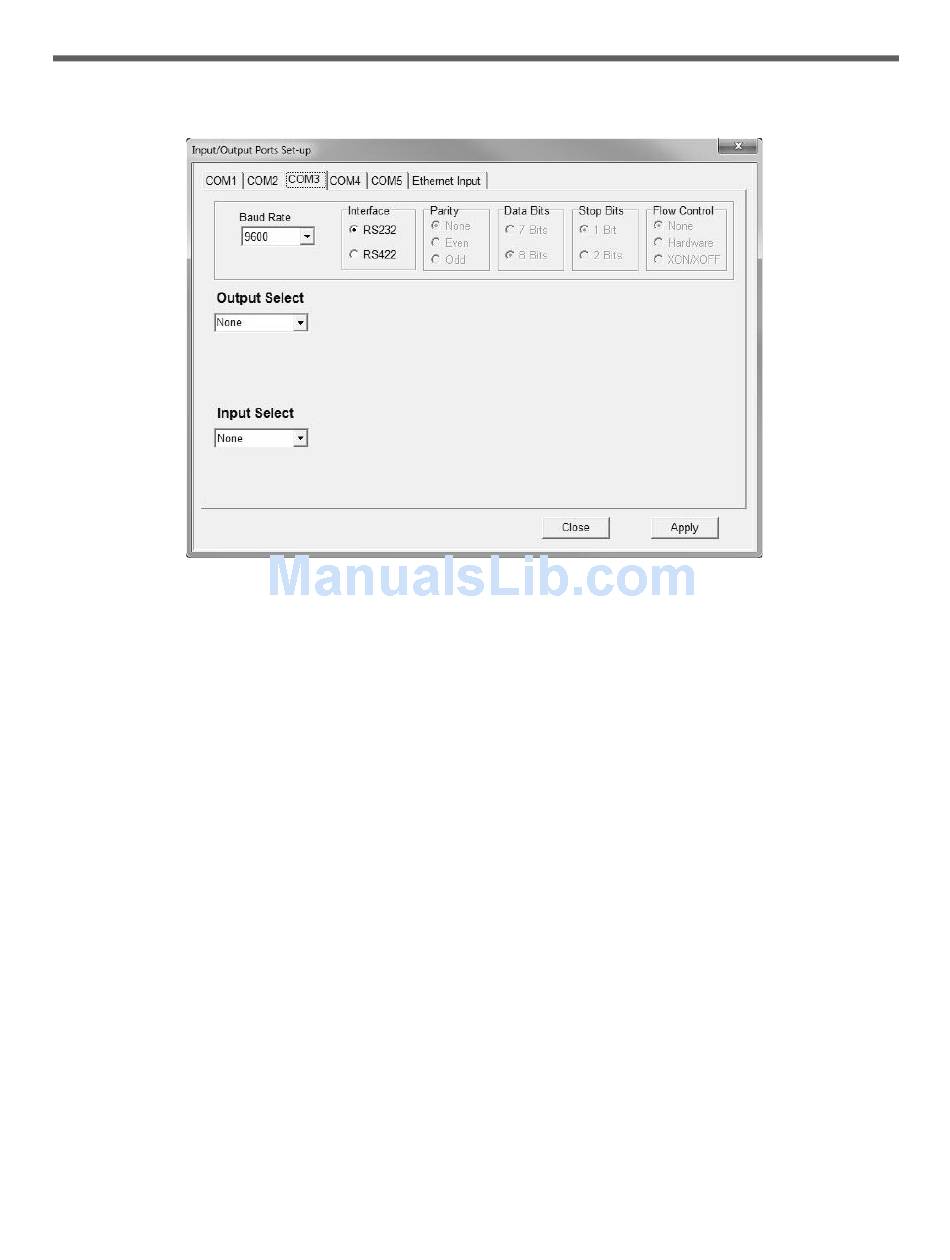

Figure 27: Input/Output Ports Set-up – COM3
To accept the screen parameters, click the Apply button. To abort any changes or to close the screen,
click the Close button.
Ethernet Input Port Set-up
The Ethernet Input tab on the Input/Output Ports Setup window is similar to the COM port setup except
that only Base 1 & 2 inputs are available, and of course Ethernet parameters must be specified instead of
COM port parameters as shown in Figure 28. A valid Internet Address, Port number must be entered and
a Protocol selected or the Ethernet connection will not be established.
