Regulate

Description
Test
Method
The image cycles between two (2) patterns. In the
primary version, the first pattern is a white outline
that defines the edges of displayed video. The other
pattern has the same outline plus a solid white
rectangle in the center. The size of the solid
rectangle equals 95% of the height and width of
displayed video. The speed of the cycle cannot be
changed.

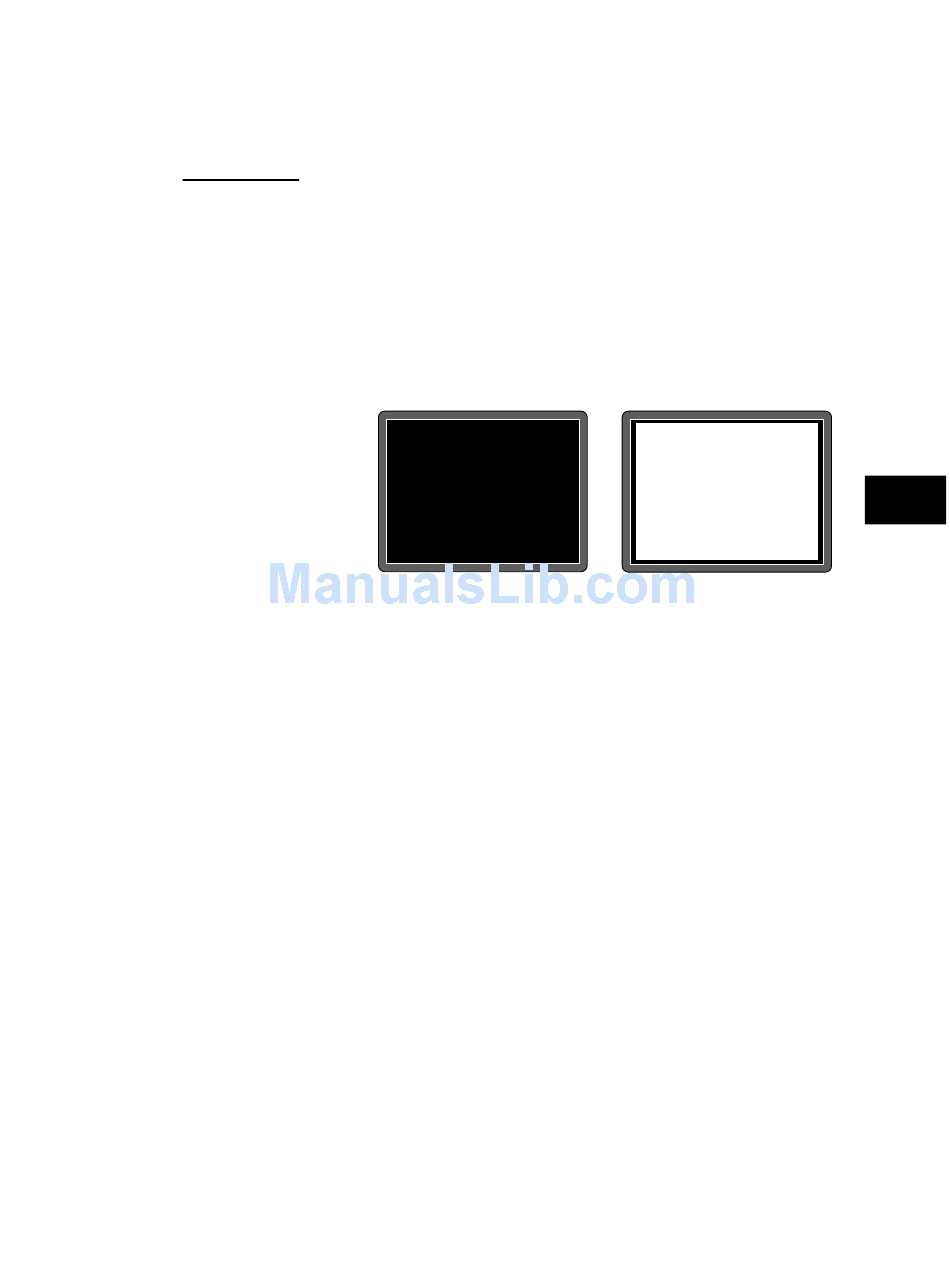

The secondary version has a thick white frame
with a black center for the first pattern and a solid
white active video area for the other pattern.
High voltage regulation
The size of the border should not change for each
half of the image. The change in border size
between the two images should be within the spec
limits of the monitor.
