Image Knob Directory Editor
Going through all of the available images with the
Image knob can be time consuming. This is particu-
larly true if you regularly use only a few images
that may be scattered over the knob locations. The
801G* can be set up to show only the images you
want, in the order you want, when the "Image" knob
is turned. The 801G* maintains a list of these im-
ages in non-volatile memory. This list can be ed-
ited. You will need to edit the list if you wish to use
the knob with images you have created. A typical

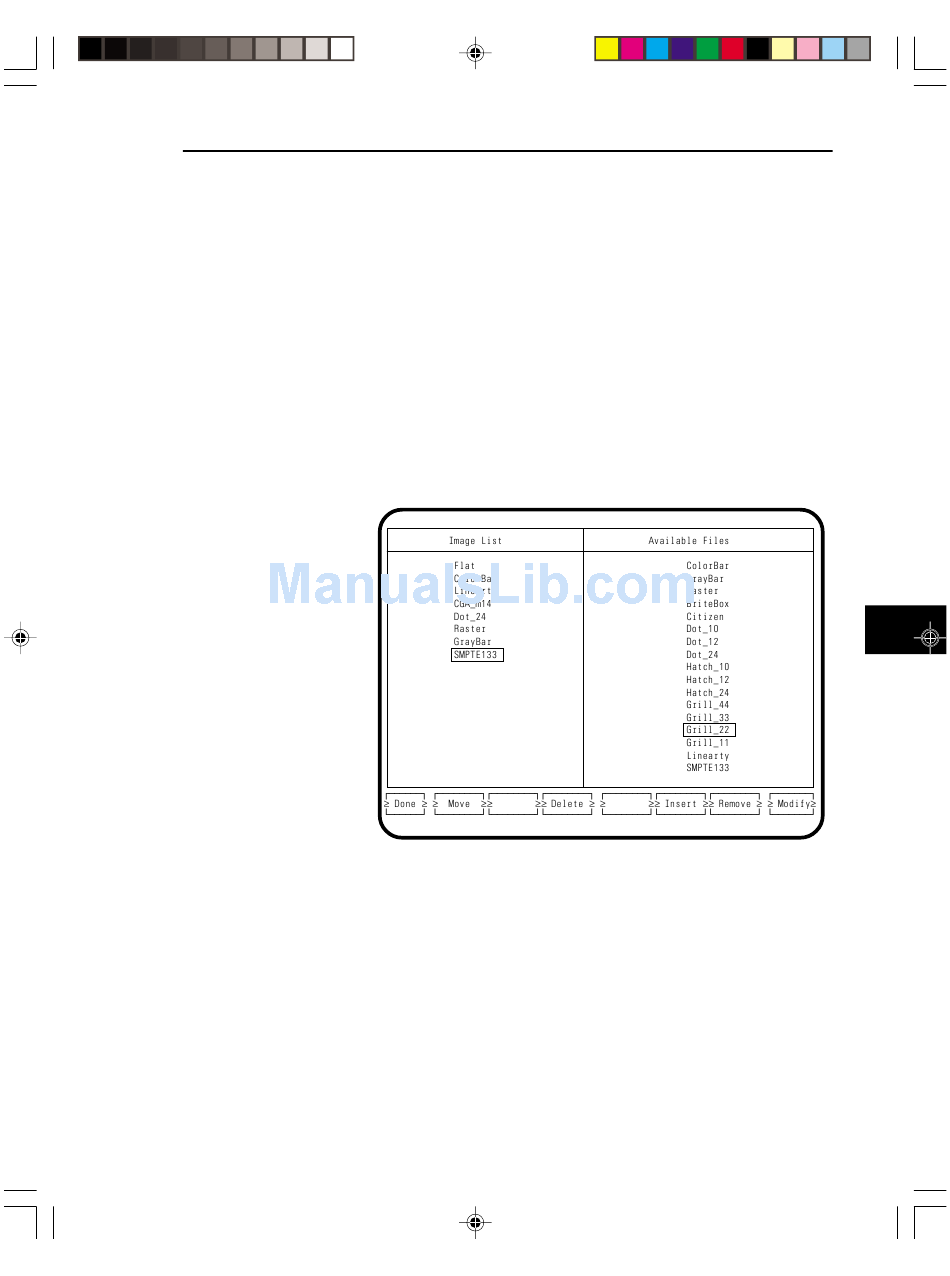

image list editor screen is shown here. The actual
editor screen uses mostly lit text on a black back-
ground.
The left hand side of the screen shows the current
contents of the image knob directory. The images
appear in the order that they are selected by the
"Image" knob during normal operation.
While editing, the "Format" knob moves a selection
box through the left hand list. The list will scroll if
it can not fit on the screen.
The right hand side shows all of the available im-
ages. The built-in images are at the top of the list.
The built-in images are followed by a factory de-
