Format Editor

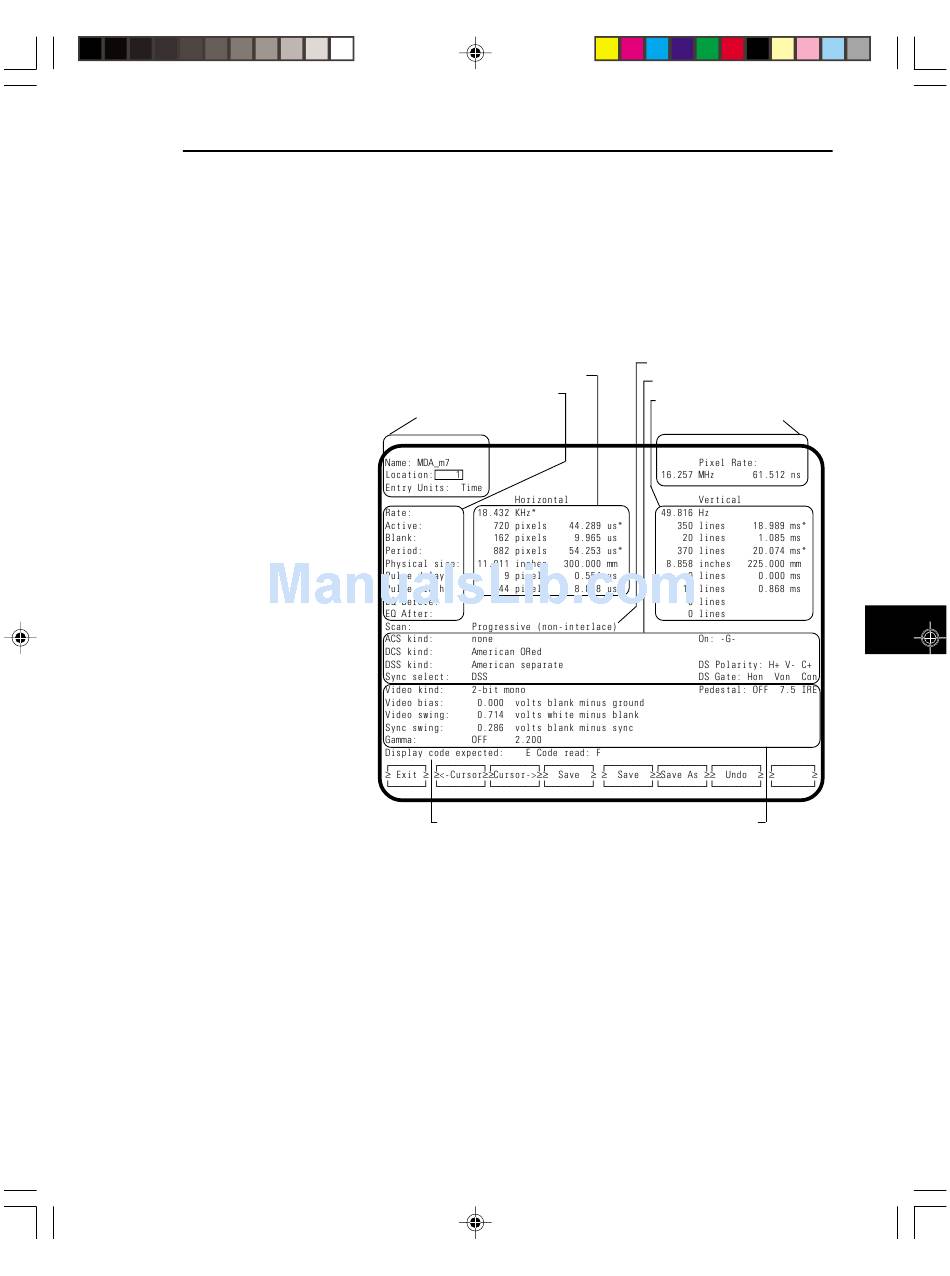

Figure 6-1
Format Editor Screen

Knob Functions

The format editor is one of the screens available in
the programming mode. You can view and modify
the contents of any format stored in non-volatile
memory using the format editor. A typical format
editor screen is shown here. The actual editor screen
uses mostly lit text on a black background.
Horizontal Parameters
Hor. & Vert. Parameter Names
Format Name & Location
Entry Units of Measure
Display Code Parameter
The 801G*'s top knob moves a selection box among
the parameters on the screen. Knob rotation causes
a "snaking" action. The exact path taken will de-
pend on the units of measure you have selected for
data entry. The example screen shows the memory
location as being selected.
The bottom knob modifies the parameter that the
top knob has selected. If a non-numeric parameter
(e.g. sync type) is selected, the bottom knob will
cycle through a list of available choices. If a nu-
Interlace Control
Sync Output Control
Vertical Timing Parameters
Pixel Rate & Period
Video Output Parameters
Editing Formats 6-9
