Strokes0, Strokes1 - Quantum Data 801GC, 801GF, 801GX Owner's And Programmer's Manual

Strokes0, Strokes1

Description
Purpose
This image may be called out by some display
m a n u f a c t u r e r s ' t e s t p r o c e d u r e s . T h e S t r o k e s 0

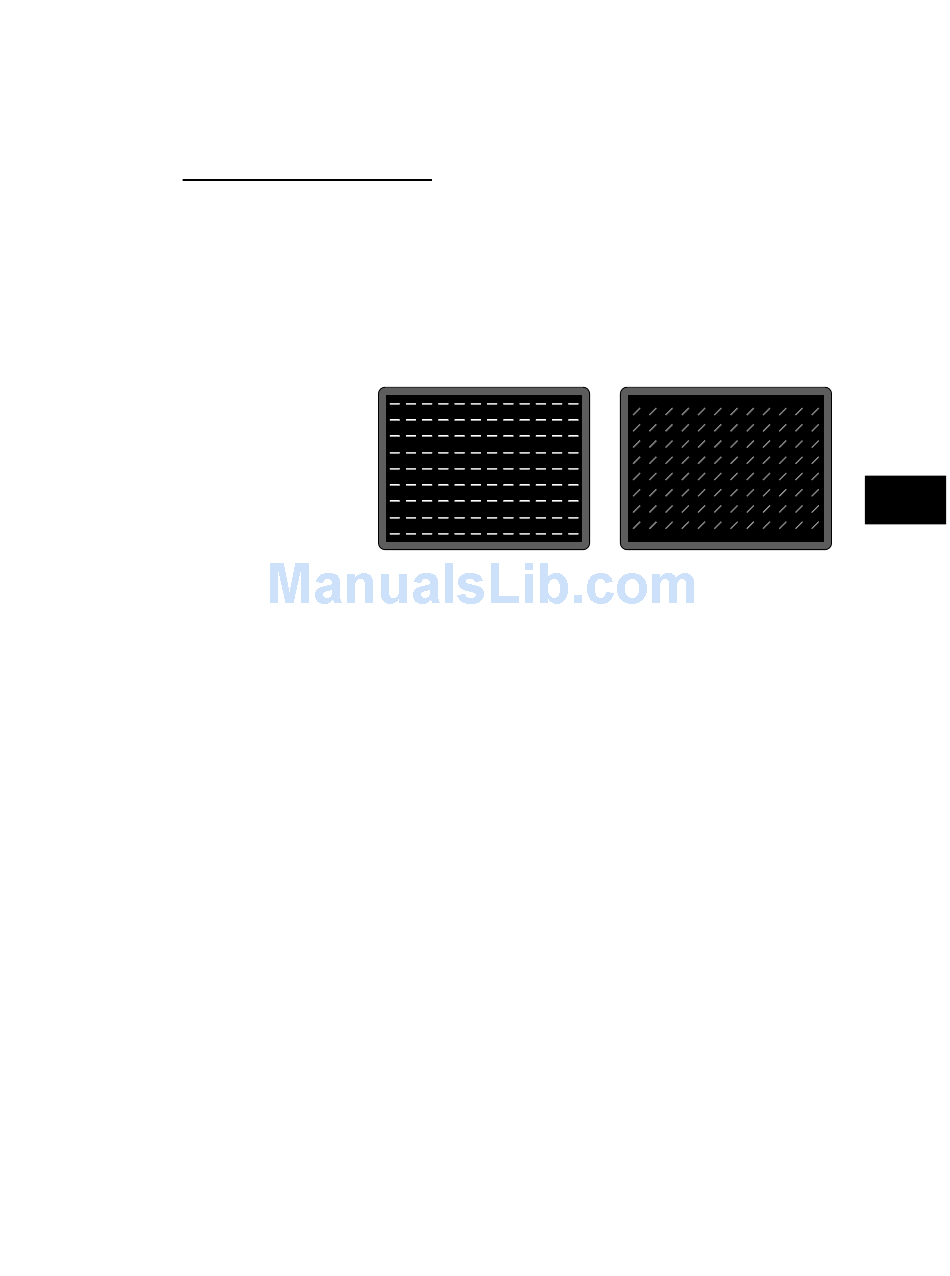

version consists of multiple groups of separated
red, green and blue horizontal lines drawn on a
black background. The Strokes1 version consists
of multiple groups of separated red, green and
blue diagonal lines drawn on a black background.
These are special-purpose test patterns used in
test and alignment procedures specified by one
or more display manufacturers.
