Hatch4x3, Hatch5x4 and Hatch8x8

Description
Purpose

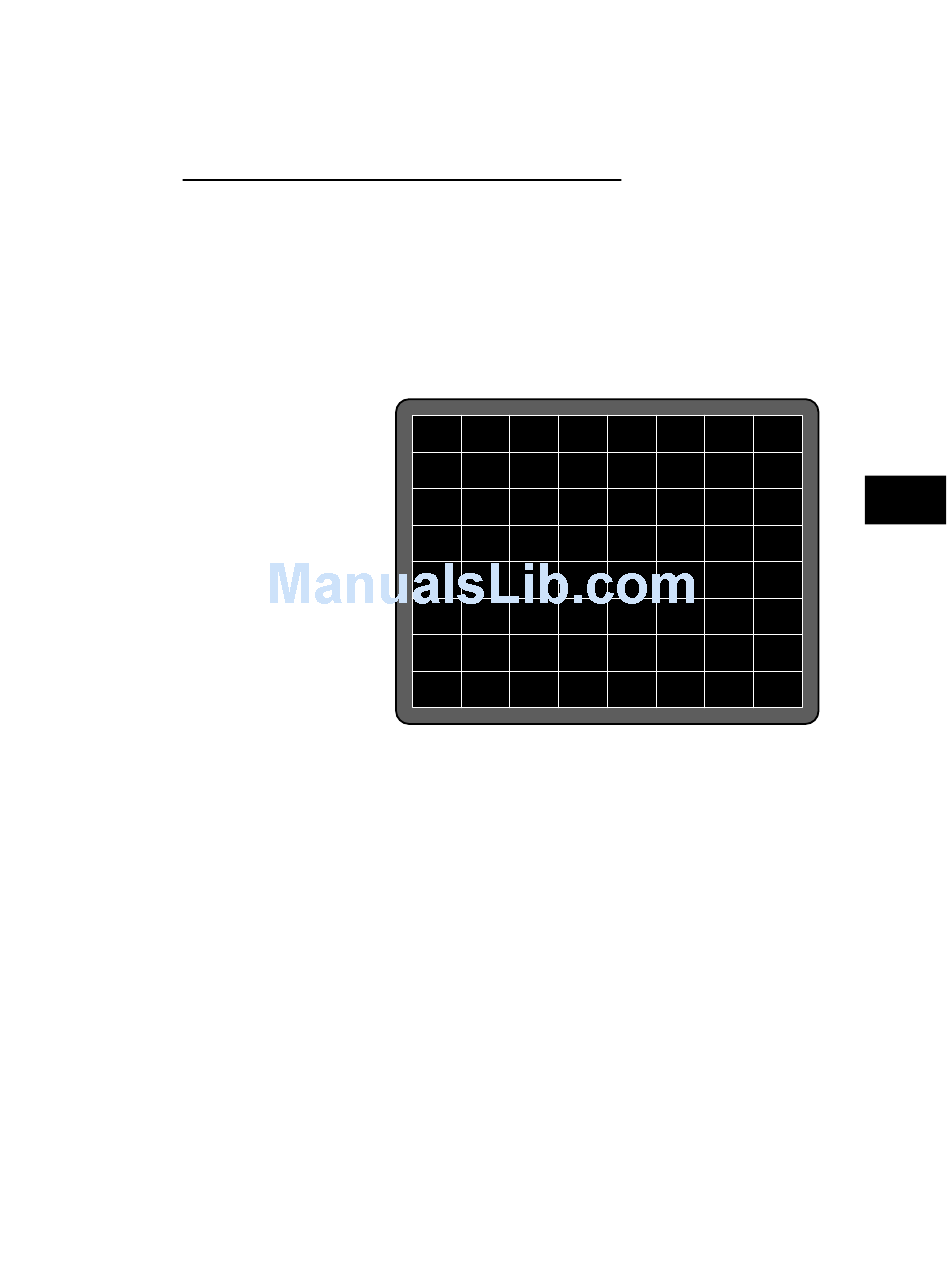

These are different versions of a crosshatch pattern
that may be called for by some display manufacturers'
test procedures. The primary version consists of white
crosshatch on a black background.
The secondary version inverts the image to black
lines on a white background.
This is a general purpose test image that can be
used to check and adjust video scan linearity and
geometry and color convergence.
