BNC to RCA
adapter supplied
with 802GX only
V Sync Blue Analog Video
H / CS Sync

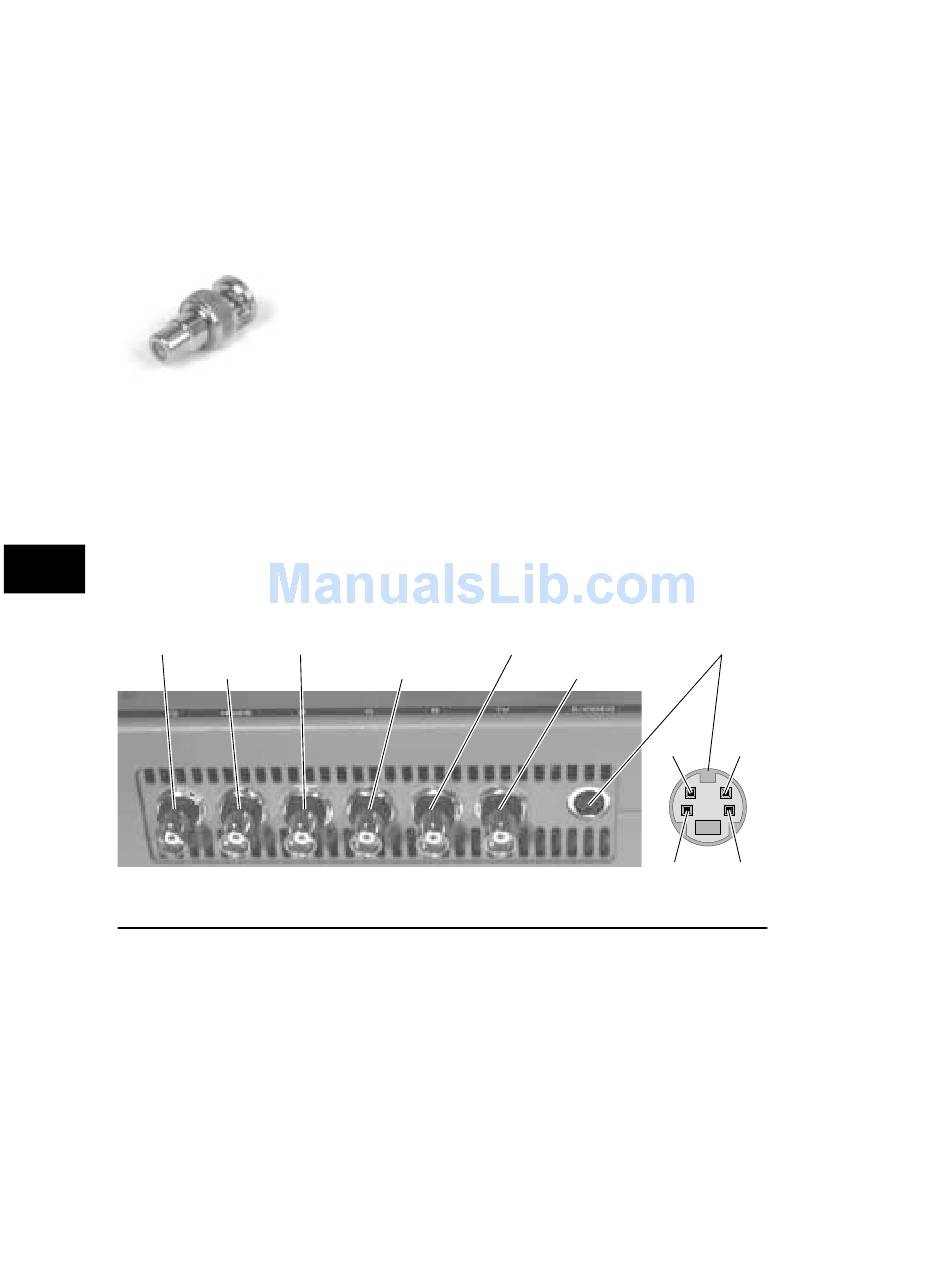

Figure 5-2 BNC and S-VIDEO Output Connectors

Display Codes

What is a Display
Code?
5-6
Chapter 5: Making Connections

BNC Output Connectors

All models have five BNC connectors along the right
side as shown in figure 5-2. They are for driving
analog workstation and projection displays that use
RGB component video with or without separate
sync(s).
The 801GX has a sixth connector which is used for
the NTSC / PAL TV encoded video. We supply a
separate BNC to RCA jack adapter (#30-00123), shown
on the left, to match the connectors used on many
commercial TV type monitors.

S-VIDEO Connector (801GX Only)

A 4 position mini-DIN receptacle is to the right of
the BNC connectors. It is used for the NTSC / PAL
TV compatible S-VIDEO luminance (Y) and chromi-
nance (C) outputs.
Red Analog Video
Green Analog Video
Some displays have an identification code hard-wired
into their input connector. This code consists of a
unique combination of floating and grounded pins
on the connector.
Model 801GC, 801GF & 801GX¥Rev. A
S-VIDEO (801GX)
TV Video (801GX)
C
Gnd
Y
Gnd
