Sequence Editor

6-38
Chapter 6: Programming
Sequences are created and modified using the se-
quence editor. It is accessed through the sequence

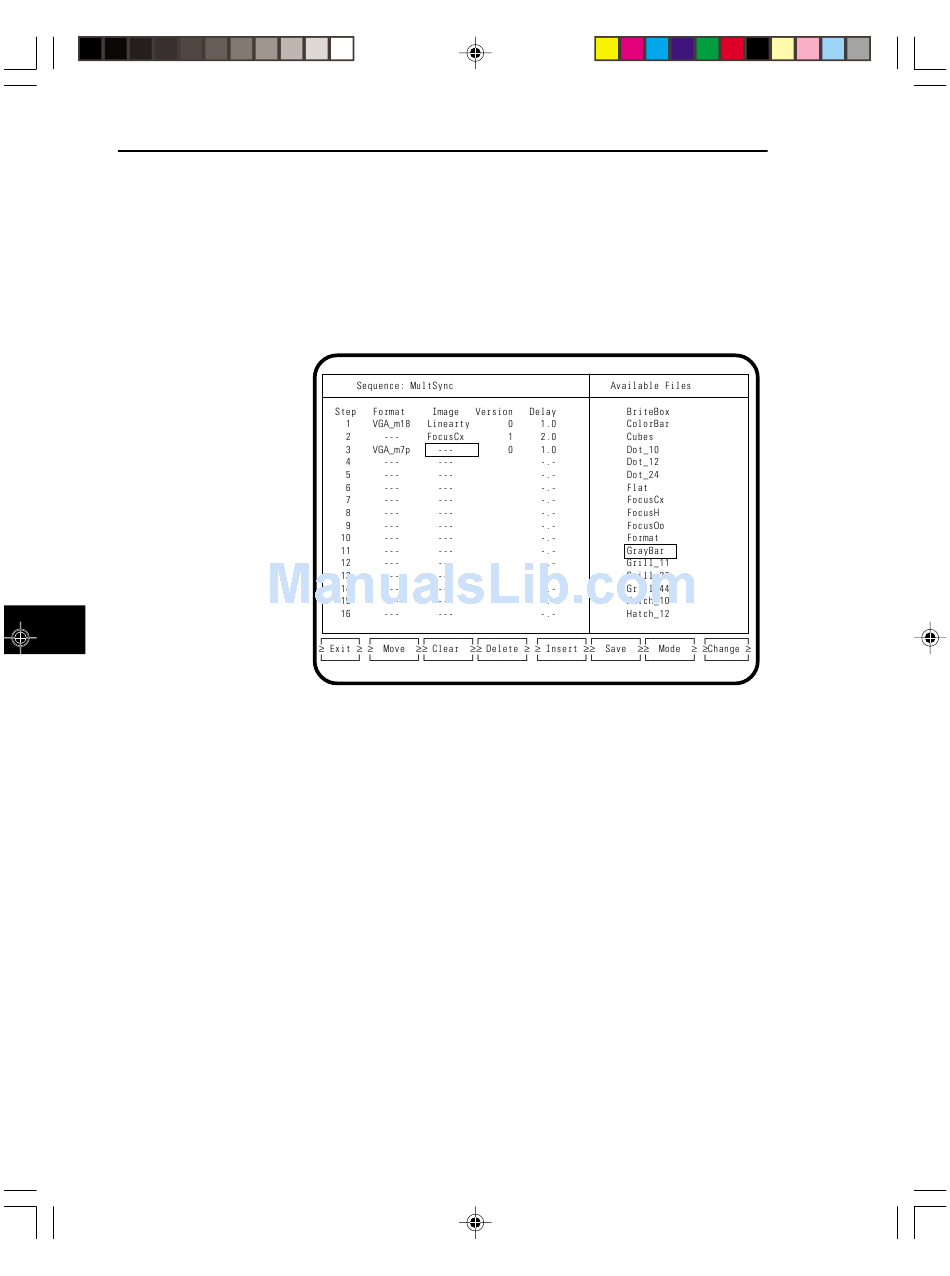

knob directory editor in the programming mode. A
typical sequence editor screen is shown here. The
actual editor screen uses mostly lit text on a black
background.
Most of the left side of the screen displays the con-
tents of the sequence. This includes the step num-
ber, format, image and auto-sequence delay time for
each step. The name of the sequence file being ed-
ited is shown at the top of the left side. If the label
"Mode:" appears to the right of the name, it means
the 801G* will normally power-up in the given "se-
quence" mode using this sequence file.
The information shown on right side of the screen
will depend on what is selected on the left side of
the screen. If you are in the "Step" column, the right
side will be blank. If you are in the "Format" col-
umn, a list of all available formats stored in the 801G*
is shown. If you are in the "Image" column, a list of
all available built-in and custom images is shown.
If you are in the "Version" column, a zero (0) or a
one (1) is shown. If you are in the "Delay" column,
a list of available delay times is shown.
