Goodrive200 inverters

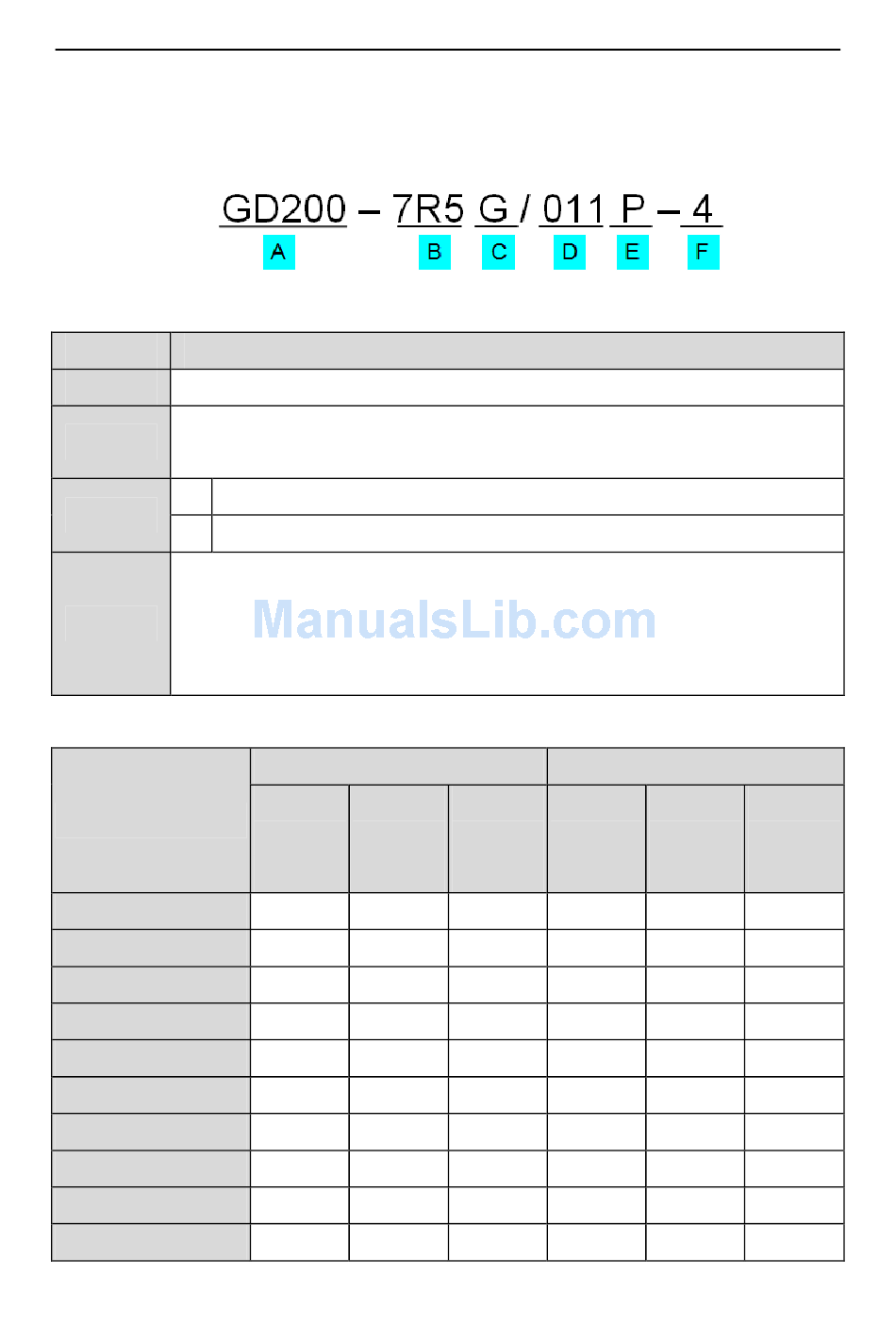

3.5 Type designation key

The type designation contains information on the inverter. The user can find the type
designation on the type designation label attached to the inverter or the simple name plate.
Key
A GD200: abbreviation of Goodrive200
3-digit code: output power. "R" means the decimal point; "011":11kW;
B, D
"015":15kW
C G:Constant torque load
C, E
E P:Variable torque load
Input voltage degree:
2: AC 3PH 220V(-15%)~240V(+10%)
F
4: AC 3PH 380V(-15%)~ 440V(+10%)
6: AC 3PH 520V(-15%)~690V(+10%)

3.6 Rated specifications

Model
GD200-1R5G-4
GD200-2R2G-4
GD200-004G/5R5P-4
GD200-5R5G/7R5P-4
GD200-7R5G/011P-4
GD200-011G/015P-4
GD200-015G/018P-4
GD200-018G/022P-4
GD200-022G/030P-4
GD200-030G/037P-4
Fig 3-4 Product type
Constant torque
Output Input
power current
(kW) (A)
1.5 5.0
2.2 5.8
4 13.5
5.5 19.5
7.5 25
11 32
15 40
18.5 47
22 56
30 70
16
Instructions
Output Output
current power
(A) (kW)
3.7
5
9.5 5.5
14 7.5
18.5 11
25 15
32 18.5
38 22
45 30
60 37
Product overview
Variable torque
Input Output
current current
(A) (A)
19.5 14
25 18.5
32 25
40 32
47 38
56 45
70 60
80 75
