Goodrive200 inverters
Installation guidelines

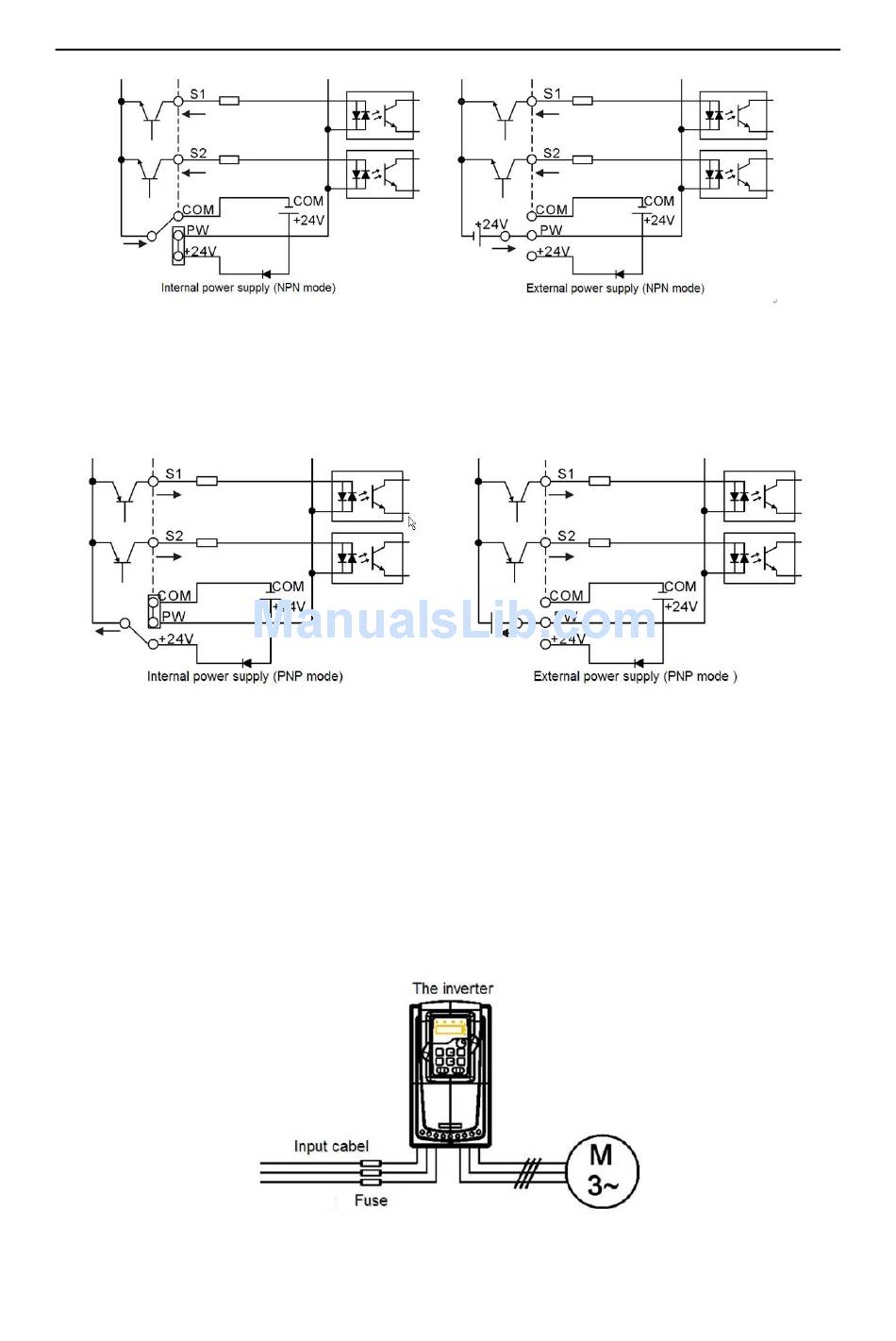

Fig 4-23 NPN modes
If the signal is from PNP transistor, please set the U-shaped contact tag as below according
to the used power supply.
Fig 4-24 PNP modes
4.4 Layout protection
4.4.1 Protecting the inverter and input power cable in short-circuit situations
Protect the inverter and input power cable in short circuit situations and against thermal
overload.
Arrange the protection according to the following guidelines.
Fig 4-25 Fuse configuration
35
