7.18 Fixed-length control

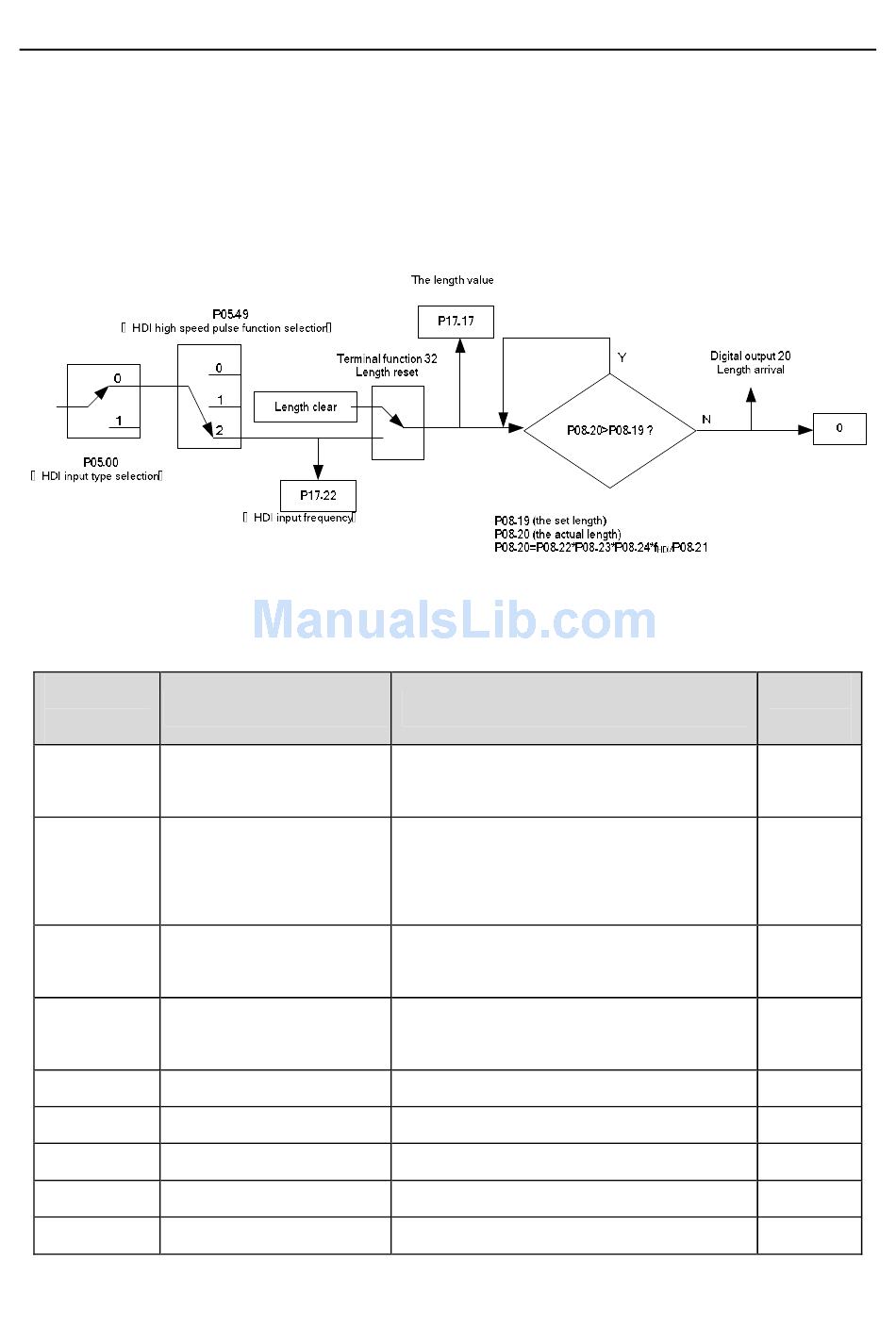

Goodrive200 series inverters support fixed-length control function which can input length counting
pulse through HDI, and then count the actual length according to the internal counting formula. If
the actual length is longer than or equal to the set length, the digital output terminal can output the
length arrival pulse signal of 200ms and the corresponding length will be cleared automatically.
Note: the length arrival belongs to pulse output and the lasting time is 200ms.
Function
code
P05.00 HDI input type selection
Corresponding setting of
P05.40
the upper limit of AI2
P05.01~ Digital input function
P05.09
P06.01~ Digital output function
P06.04
P08.19
P08.20
P08.21
P08.22
P08.23
Name
selection
selection
Setting length
Actual length
Pulse per rotation
Alxe perimeter
Length ratio
Detailed instruction of parameters
0: HDI is high pulse input
1: HDI is switch input
0: Frequency setting input
1: Counter input
2: Length counting input
32: Length reset
21: Length arrival
0~65535m
0~65535m
1~10000
0.01~100.00cm
0.001~10.000
195
Basic operation instruction
Default
value
10.00cm
1.000
0
0
0
0
1
