Chapter 4
Installation Procedure

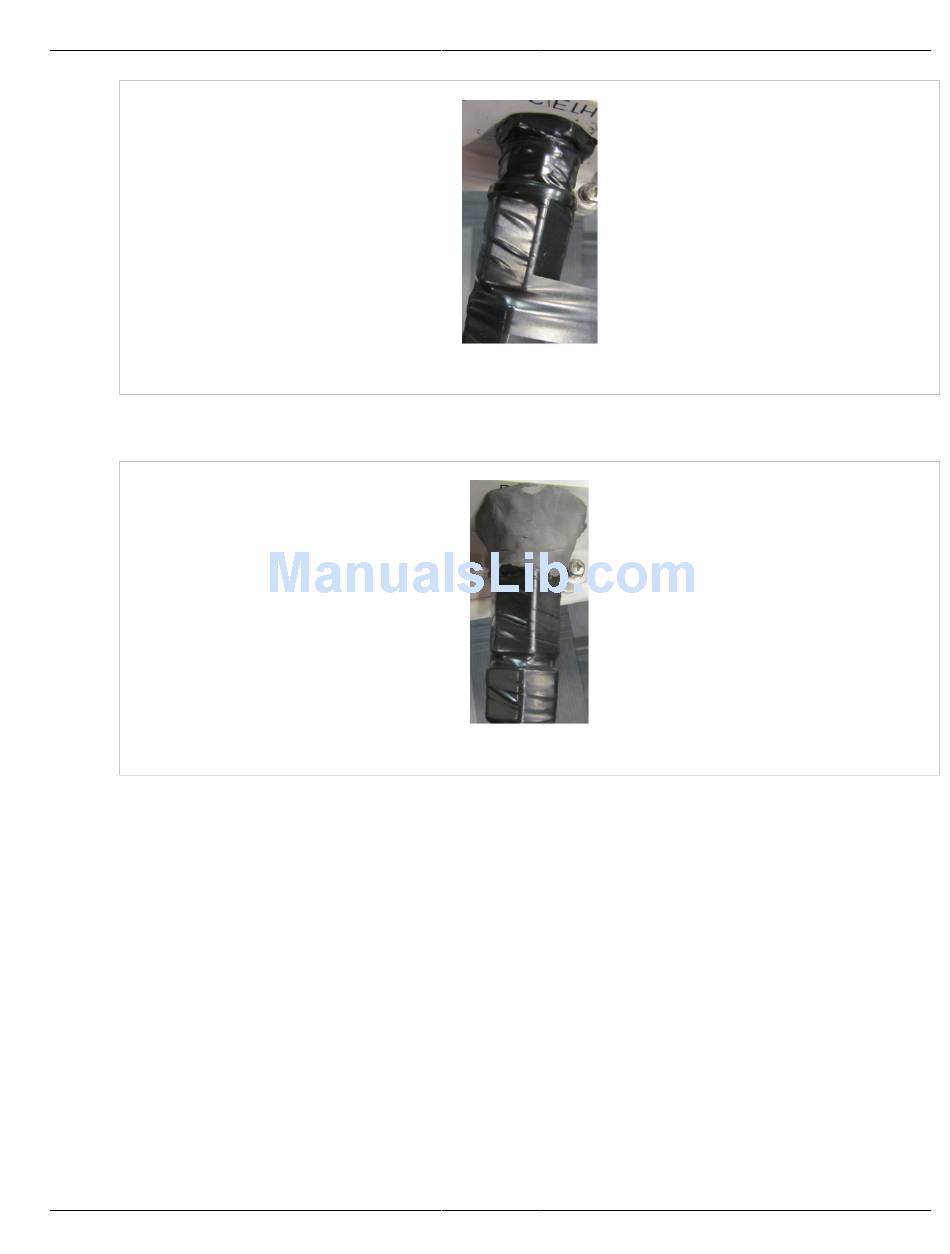

Figure 17: Wrapping the Connector with Electrical Tape
4. Work mastic putty or duct sealing putty between the connector and the body of the radio or antenna. Ensure
the putty fills any gaps not covered by the tape.
Figure 18: Sealing Gaps with Putty
5. Apply two layers of electrical tape over the rubber splicing tape for UV protection.
Section 4.10.2

Assembling the RJ45 Connector

The ODU CPE uses a male, shielded, RJ45 connector to provide the data and Power over Ethernet (PoE)
connection to the device. To assemble the RJ45 connector, follow the instructions in this section. Before
beginning, you will need the following items:
• CPE RJ45 Connector Kit
• Category 5e cable of suitable length for your application (for information on cable specifications, see
Appendix B, IDU to ODU Cable
• Standard cable splicing tools, including a standard crimp tool
Procedure: Assembling the CPE RJ45 Connector
1. Slide the connector parts on to the end of the cable as shown in
30
Specifications)
RUGGEDCOM WiN5100/WiN5200
Figure 19.
Assembling the RJ45 Connector
User Guide
