5.3.3

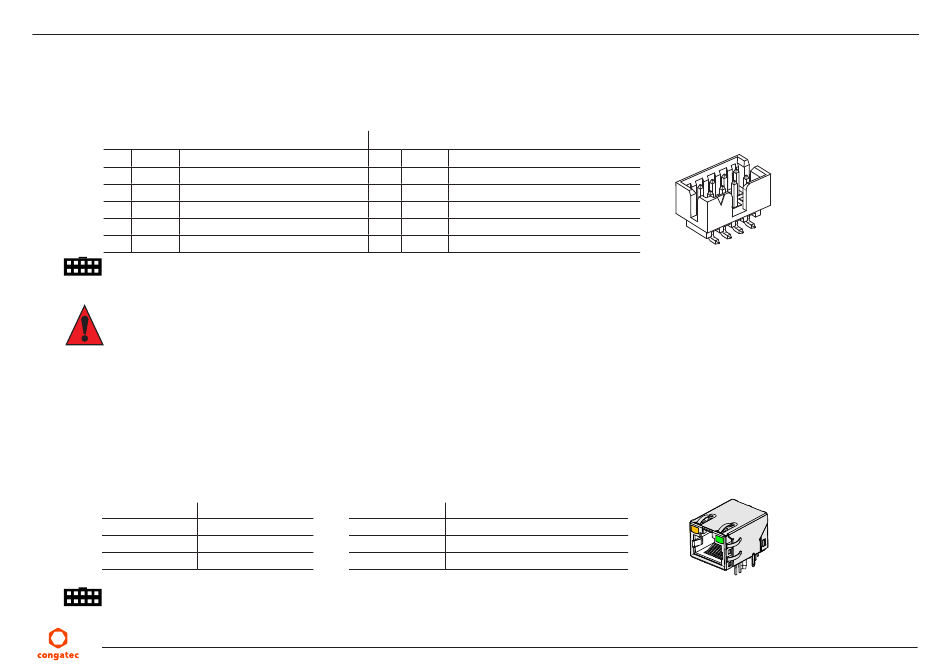

USB 2.0 Header

The conga-PA5 provides an USB 2.0 header (X8) for two additional USB 2.0 ports.
Table 15 X8 Pinout Description
Port 1
Pin Signal Description
1 +5V +5V supply
3 Data1- Hi-speed differential signal (negative)
5 Data1+ Hi-speed differential signal (positive)
7 GND Ground
9 SH Shield Ground
Connector Type
X8: 5x2 pins, 2.00 mm pitch (Molex 87832-1014); Possible Mating Connector: Molex 87568-1063
Caution
The maximum cable length of a USB 2.0 device connected to the header shall not exceed 3 meters in order to comply to EN 55024:2010.
5.4

Gigabit Ethernet Ports

The conga-PA5 provides two Gigabit Ethernet ports (X12, X13). Both ports support Wake-on-LAN (WOL). The signals are routed from the Intel
Gigabit Ethernet controller i211 (commercial variants) or i210 (industrial variants). The controller does not support the Intel
Table 16 Gigabit Ethernet Port LEDs Description
LED Left Side Description
Off 10 Mbps link speed
Green 100 Mbps link speed
Orange 1000 Mbps link speed
Connector Type
X12, X13: 8-pin RJ45 connector with Gigabit magnetic and LEDs
Copyright © 2017 congatec GmbH
Port 2
Pin Signal Description
2 +5V +5V supply
4 Data2- Hi-speed differential signal (negative)
6 Data2+ Hi-speed differential signal (positive)
8 GND Ground
10 SH Shield Ground
LED Right Side Description
Off No link
Steady On Link established, no activity detected
Blinking Link established, activity detected
PA50m112
X8
AMT feature.
®
X12, X13
30/48
®
