To insert a SIM card in the internal tray, locate the retaining lip (metal fastening labeled OPEN) so you can open the
tray and place the SIM card inside. The steps are as follows:
(1) Using a fingernail, pull the visible flap slightly back (toward the OPEN arrow) to release it from the plastic lip
holding it.
(2) Open the tray.
(3) Insert the SIM card so that it matches the edges of the tray. If it isn't correctly inserted, the tray won't close.
(4) Return the tray holding the SIM card to its original position.
(5) Again, using a fingernail, pull the top flap slightly back (as in step 1) so it gently slides back under the plastic lip
without damaging the holder. The card is now securely held.

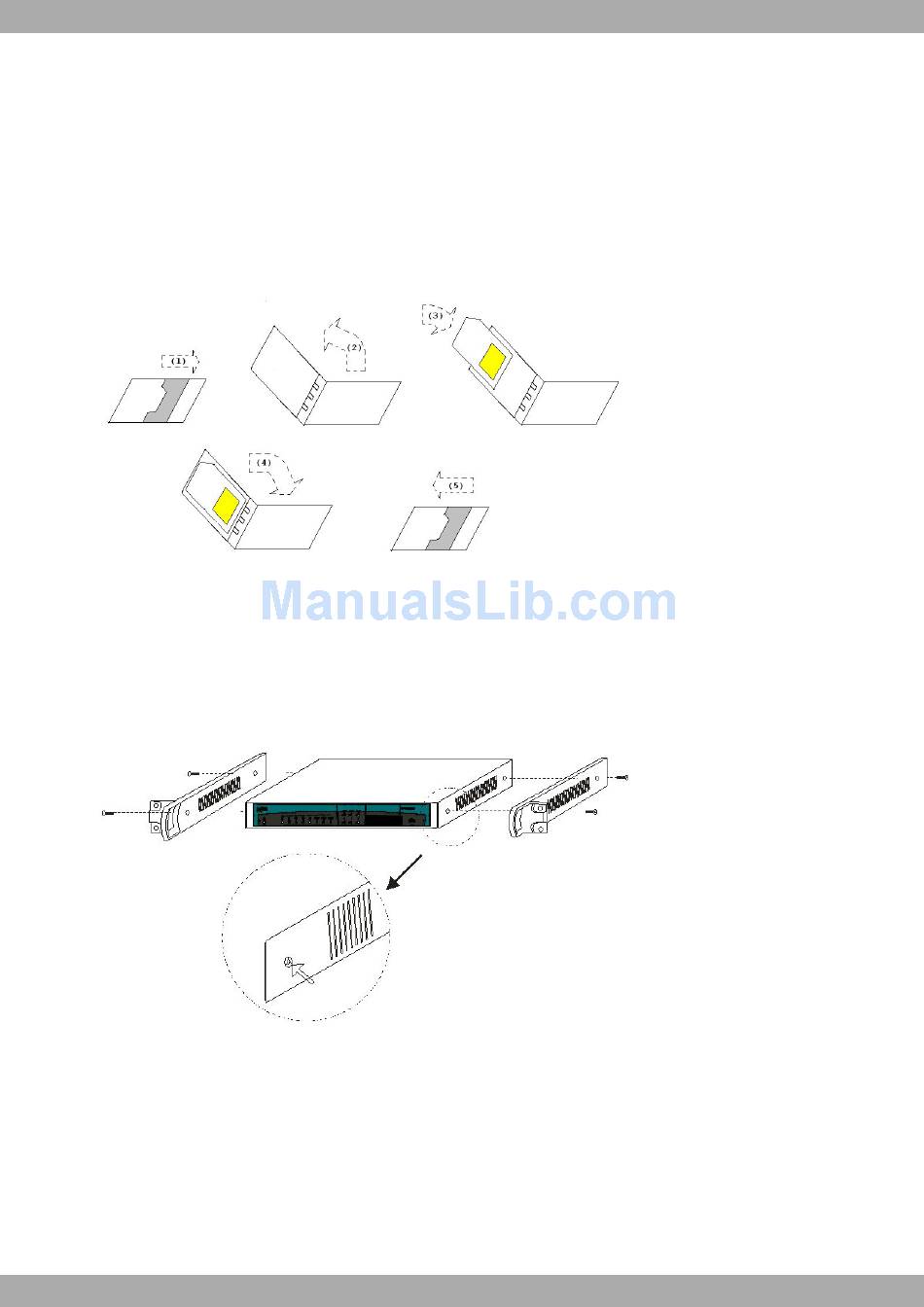

Fig. 25: Steps to insert the SIM

1.4 Installation in rack

To install the Teldat C6 in a 19-inch rack, you need two plastic strips (see Figure 1.26). The strips and screws are not
included in the basic packet and need to be purchased separately.
Both strips are attached to the device through four screws: two on each side. Figure 1.26).
Fig. 26: Rack adaptation
By defaulr, the bores where screws must be inserted leave the factory protected by blind covers. The covers can be
removed with a sharp tool (such as a small flat screwdriver). The strips are easier to install if you first remove the up-
per casing of the router.
