1 Router Installation
The Teldat C/S/G/A models (except for the Teldat C6) are powered through an external AC/DC source. For further
details, please see the Appendix.
To connect the power source to the router, follow the steps listed in the earlier table: make sure the switch is OFF (0)
and the power supply is NOT connected to the mains; find the POWER plug (on the rear panel) and plug it into the
power source. Both the connector and the receptacle have grooves that are specifically designed so that the con-
nector can only be installed properly.
Use the grounded cable (supplied) to connect the power source to the mains.
1.2.1.1 Devices with internal power supply source
To connect the power source to the device: check that the power switch is in the OFF position (0) and that the device
is NOT connected to the mains. Find the power connector plug (on the rear panel) and insert the grounded power
cable (supplied). The shape of the connector ensures it's correctly inserted.

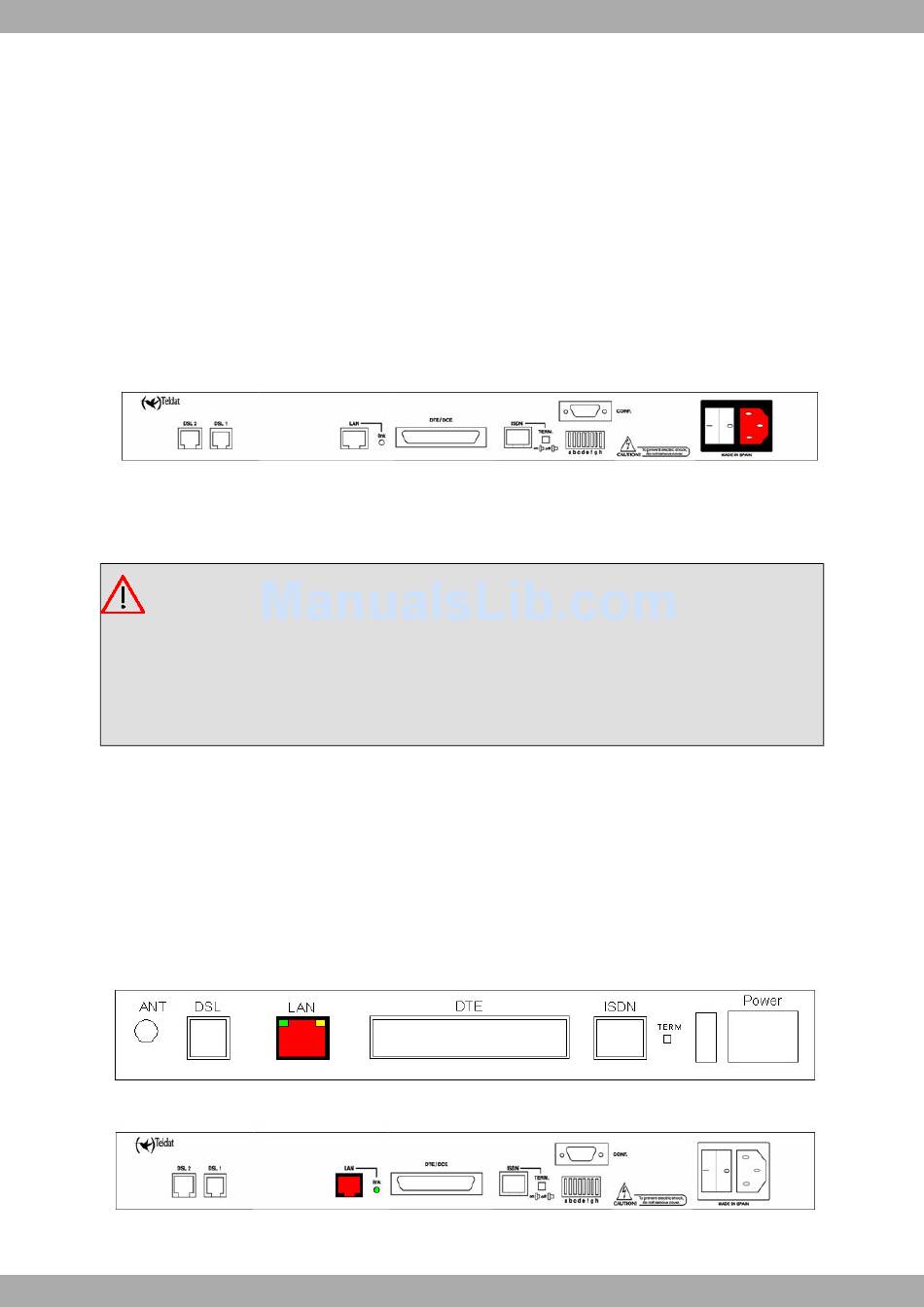

Fig. 4: Connecting the power with the internal source
To avoid electric shocks, residual current circulation and any other unwanted effects that may disrupt communica-
tion, the following is recommended:
Warning
All interconnected communication devices should be plugged to THE SAME GROUNDED POWER
OUTLET, which should, at the same time, be of good quality (lower than 10 ohms).
Whether the workplace is provided with an uninterrupted power supply system (UPS), regulated supply,
or it is independent from the rest (such as lighting, etc.), it is highly recommended that all data devices
should be connected to the same power source. This will avoid operating and premature aging prob-
lems of drivers and other components..

1.2.2 Data Connections

The Teldat C/S/G/A routers are equipped with the following connectors (some models may not have all):
LAN:
Ethernet Interface 10BaseT for LAN connection: the LNK LED indicates when the physical layer is established and
the RxD LED signals frame reception (except in the Teldat C6).
Available in all models (except those equipped with a switch).
Fig. 5: LAN Connector, LNK LED and RxD LED
Fig. 6: LED LINK and LAN connector in the Teldat C6 model
