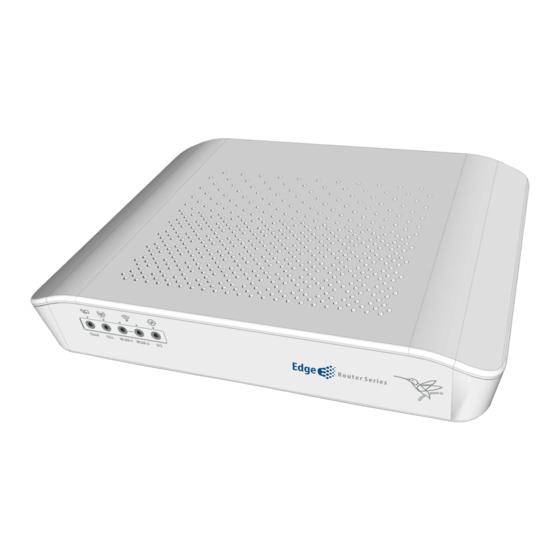

Installation Manual
Copyright© Teldat Dm1054-I Version 1.0 01/2023 Teldat S.A.
Teldat Connect-FW5G
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Connect-FW5G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Teldat Connect-FW5G

  • Page 1 Manual Teldat S.A. Teldat Connect-FW5G Installation Manual Copyright© Teldat Dm1054-I Version 1.0 01/2023 Teldat S.A. Teldat Connect-FW5G...
  • Page 2 This publication is subject to change. Teldat S.A. offers no warranty whatsoever for information contained in this manual. Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv- ery, supply or use of this manual.
  • Page 3: Table Of Contents

    Chapter 2 Teldat Connect-FW5G ....... 3 Characteristics ........
  • Page 4 USB 3.0 interface ........Teldat Connect-FW5G...
  • Page 5 Regulatory model “TLDPM03E1” compliance ..... . . WI-FI specifications ........Teldat Connect-FW5G...
  • Page 6: I Related Documents

    Related Documents Teldat S.A. I Related Documents Teldat Dm704-I Configuration and Monitoring Teldat Dm709-I LAN interfaces Teldat Dm717-I Bridge Teldat Dm748-I Software Updating Teldat Dm771-I Wireless LAN Interface. Teldat Dm781-I Cellular Interface Teldat Dm830-I MNGPLAT Feature Teldat Connect-FW5G...
  • Page 7: About This Guide

    1 About this Guide Teldat S.A. Chapter 1 About this Guide This is the installation manual for the Teldat Connect-FW5G router and contains information on how to correctly in- stall the device in a working environment. 1.1 Supported devices The information provided in this installation manual only applies to the Teldat Connect-FW5G router.
  • Page 8: Teldat Connect-Fw5G

    2.1.2 Hardware monitoring The LEDs on the front and the rear panel are used to monitor the hardware in the Teldat Connect-FW5G router. These LEDs provide visual information on the state of the device and reference the condition of the hardware com- ponents, indicating whether or not there is connectivity, data flow, etc.
  • Page 9: Components And Power Supply

    3 Components and Power Supply Teldat S.A. Chapter 3 Components and Power Supply The following chapter provides detailed information on the chassis of the Teldat Connect-FW5G router and its com- ponents. This information includes: • Components. • Information on assembly.
  • Page 10: Rear Panel

    Default Configuration Process Yellow -> Error, component operating incorrectly. Green -> System initialized and operating. 3.1.2 Rear panel The following figure shows the rear panel. Here you will find the majority of Teldat Connect-FW5G router connect- ors. Rear panel Fig. 3:...
  • Page 11 4-port Ethernet LAN connections on page 16 LAN connectors on page 29 LAN interface on page 31 CONSOLE. Provides access to the Teldat Connect-FW5G local console for con- figuration and monitoring purposes. Connecting for configuration on page 19 Configuration connector on page 30...
  • Page 12: Side Panel

    - Steady: 10/100/1000M link established. - Blinking: Transferring data. Yellow Fiber status: - Steady: 1000M link established. None Interface is either unavailable, not installed, or not registered. 3.1.3 Side panel SIM holder and Kensington slot are located on the side panel. Teldat Connect-FW5G...
  • Page 13: Mounting An Anti-Theft Security Cable

    3.2 Mounting an anti-theft security cable Teldat Connect-FW5G devices have been equipped with a standard Kensington security slot to which a security cable can be attached. The T-bar lock of the security cable allows the device to be attached to an anchor point, thus preventing potential thefts.
  • Page 14: Installation

    3.3 Installation 3.3.1 Standalone Teldat Connect-FW5G devices can be placed as standalone on a flat, stable surface. Make sure there is enough space around the router (for ventilation purposes) and check that the power cord and data cables can easily reach it.
  • Page 15: Rack Mounting

    Step 2. Hang the router on the screws. 3.3.3 Rack mounting Teldat Connect-FW5G devices can be installed in a 19” rack. Note The necessary kit is not provided by default and has to be acquired separately.
  • Page 16 To install the kit, follow these steps: • Step 1. Place side A as shown in the image. Place the bracket at the bottom (1) and adjust it until it is fastened and in line with the side panel (2). Teldat Connect-FW5G...
  • Page 17 Fig. 14: Side A installation • Step 2. Do the same with side B. Fig. 15: Side B installation • Step 3. Insert screws C using a screwdriver. Use a Phillips PH1 screwdriver to fasten the screws. Fig. 16: Screws Teldat Connect-FW5G...
  • Page 18 3 Components and Power Supply Teldat S.A. Fig. 17: Screw installation Fig. 18: Screw placement Fig. 19: Screw view • Step 4. Make sure the mounting points (green arrows) appear as shown in the following figure: Teldat Connect-FW5G...
  • Page 19: Plug-In Modules

    The Teldat Connect-FW5G does not have plug-in modules. Reserved for future use. 3.5 Power source The Teldat Connect-FW5G router is powered through an external AC/DC power adapter. Warning The equipment must be used with the power supply provided by the manufacturer.
  • Page 20: Rst Button

    Some devices leave the factory with customized settings. This personalization means your router's de- fault configuration (and that of the embedded access point, where applicable) may be different from the one shown above. 3.7 Data connections The Teldat Connect-FW5G router has the following data connections. Teldat Connect-FW5G...
  • Page 21: 4-Port Ethernet Lan Connections

    By default, LAN ports are configured as independent and have their own MAC address. They are iden- tified as ethenet0/0/0 (LAN1) to ethernet0/0/3 (LAN4). If you need them to belong to a bridge, please see manual: “Teldat Dm717-I Bridge ” for more informa- tion.
  • Page 22: Wwan Antenna Connection

    EN 60825-1:2007 standard. 3.7.3 WWAN antenna connection The Teldat Connect-FW5G model has four connectors for WWAN antennas on the rear and side panels (to install the antennas provided). To assemble or dismantle the antennas, simply screw or unscrew them into or out of the SMA connectors located on the rear panel of the router.
  • Page 23 To achieve optimum performance, the radio frequency accessories installed (antennas and cables) should be those recommended by Teldat. Teldat offers a range of suitable accessories (90º mount antennas, antennas for outdoor installation, antennas for ceiling installation, extension cables, etc.) for different locations.
  • Page 24: Wireless Lan Internal Antennas

    The Teldat Connect-FW5G router has a Wireless WAN interface that may need a SIM card to operate. The Teldat Connect-FW5G has one protected SIM tray located on its side panel, as shown in the following figure. Fig. 28: SIM tray To access the internal SIM, remove the SIM cover and insert the SIM card in its slot.
  • Page 25 Always disconnect the device form the main power supply before installing the SIM cards. Always disconnect the device before removing the casing to access the trays. When inserting the SIM cards, please protect yourself against electrostatic discharges (ESD). Do not touch the SIM card connectors. Teldat Connect-FW5G...
  • Page 26: Compliance

    Parque Tecnológico de Madrid, 28760 Tres Cantos, Madrid, Spain International Phone +34 91 807 65 65 4.2 Risk identification WARNING: Signal word used to designate a potentially dangerous situation that may cause severe injuries or death if not avoided. 4.3 Safety warnings Teldat Connect-FW5G...
  • Page 27 4 Compliance Teldat S.A. Teldat Connect-FW5G...
  • Page 28: Weee Information

    This device is an Energy Related Product (ErP) with High Network Availability (HiNA) and automatically switches to a power-saving Network Standby mode when no packets have been transmitted for 10 minutes (set by default). When the Teldat Connect-FW5G is not needed, it can also be turned off and the power supply disconnected to save energy.
  • Page 29: Psu Energy Efficiency

    Teldat S.A. Network Standby: 7.2W All Teldat Connect-FW5G interfaces can be shut down individually. Check the configuration manuals to learn how to disable each interface. For further information, please see manual: Teldat “Dm772-I Configuration Interfaces” . 4.7 PSU energy efficiency...
  • Page 30: Ec Declaration Of Conformity

    In accordance with Article 10 of 2014/53/EU, we inform you that national restrictions and requirements may apply for authorization purposes. These can change with time. Teldat S.A. recommends that you check with local authorities for the latest status of national regulations.
  • Page 31: Operating Frequency

    38. 4.12 Intended use of the equipment The Teldat Connect-FW5G device can be deployed as a Customer Premises Equipment (CPE) in enterprise branch offices or in environments managed by the service provider. This product must only be used indoors.
  • Page 32: Appendix A Technical Information

    For further information, please see manual: “Teldat Dm830-I MNGPLAT feature” . A.2 Updating the software The Teldat Connect-FW5G router can be updated to new versions. Please contact your dealer for further details on new releases. There are several ways to update a Teldat router. For further information, please see manual: “Teldat Dm748-I Soft- ware Updating”...
  • Page 33: Connecting To The Device

    Teldat S.A. A.3 Connecting to the device A.3.1 Connecting using the local console (CONSOLE connector) The Teldat Connect-FW5G router has a RJ45 female connector on the front panel, known as CONSOLE, which provides access to the device's local console. CONSOLE Connector Fig.
  • Page 34: Connectors

    BI-DA+ BI-DA- BI-DA- BI-DB+ BI-DB+ BI-DC+ BI-DC- BI-DB- BI-DB- BI-DD+ BI-DD- A.4.3 WAN SFP connectors Standard SFP connector A.4.4 WWAN connector Devices equipped with this interface have two (4G models) or four (5G models) SMA female connectors installed. Teldat Connect-FW5G...
  • Page 35: Usb 3.0 Connector

    RF in/out External A.4.5 USB 3.0 connector Type-A Signal VBUS D- (USB 2.0) D+ (USB 2.0) SSRX- (USB 3.0) SSRX+ (USB3.0) GND_DRAIN SSTX- (USB 3.0) SSTX+ (USB 3.0) Shell Shield A.4.6 Configuration connector RJ45 CONFIGURATION RJ45 PIN CONF Teldat Connect-FW5G...
  • Page 36: Power Supply Connector

    1 GByte (DDR4) STORAGE UNIT eMMC Memory (8 GBytes). A.5.2 LAN interface PROTOCOLS Ethernet (802.3). PORTS 4-port MDI/MDX auto-detection. SPEED 10/100/1000 Mbps (Base-T). CONNECTOR RJ45 female. A.5.3 WAN Base-T interface STANDARDS Ethernet (802.3). SPEED 10/100/1000 Mbps (Base-T). CONNECTOR RJ45 female. Teldat Connect-FW5G...
  • Page 37: Wan Sfp Interface

    Technical Information Teldat S.A. A.5.4 WAN SFP interface STANDARDS 802.1Q (VLAN). 1000-Base-X. MSA and SFF 8472 compliant. SPEED 1000 Mbps full duplex. TYPES LX/LH (single-mode 1310 nm). SX (multi-mode 850 nm). ZX (single-mode 1550 nm). CONNECTOR Standard SFP connector. Teldat Connect-FW5G...
  • Page 38: Wireless Wan Interface

    Speed (DL/UL) The data rates presented are only theoretical, meaning the actual value will de- pend on the network's condition. RM520N-GL: • 5G-NR • NSA: DL 3.3 Gbps; UL 600 Mbps • SA: DL 2.4 Gbps; UL 900 Mbps Teldat Connect-FW5G...
  • Page 39 • MHB (Middle High Band): 1452–2690 MHz • UHB (Ultra High Band): 3400–3800 MHz • n77/n78: 3300–4200 MHz • n79: 4400–5000 MHz • LAA (License Assisted Access): 5150-5925 MHz • TX: Transmit • PRX: Primary Reception • DRX: Diversity Reception Teldat Connect-FW5G...
  • Page 40: Wireless Lan Interface

    802.11ac: up to 192.6Mbps (20MHz channel) 802.11ac: up to 400Mbps (40MHz channel). 802.11ac: up to 866.7Mbps (80MHz channel) 802.11ax: 2.4GHz up to 458Mbps, 5GHz up to 1.2Gbps. Output power limitation Adjustable Output Power @2.4GHz: Max. 16,35 dBm @5GHz: Max. 18,12 dBm Teldat Connect-FW5G...
  • Page 41: Usb 3.0 Interface

    Desktop / chassis for a 1 U high Rack mount enclosure. DIMENSION 232.8mm X 183.2mm X 45.2mm (excluding LTE antenna) WEIGHT 0.6 Kg A.5.11 Environmental specifications TEMPERATURE OPERATING NORMALLY: 0 ºC to 40 ºC. STORED: -25 ºC to 70 ºC. RELATIVE HUMIDITY 10 % to 95 %. Teldat Connect-FW5G...
  • Page 42: Ce Radio Information

    +23 dBm ± 2 dB Rx: 2620–2690 MHz Band 20 Tx: 832–862 MHz +23 dBm ± 2 dB Rx: 791–821 MHz Band 28 Tx: 703–748 MHz +23 dBm ± 2 dB Rx: 758–803 MHz Technology: UMTS(WCDMA)/ HSDPA/ HSUPA/ HSPA+/ DC-HSPA+. RM520N-GL specifications. Teldat Connect-FW5G...
  • Page 43: Regulatory Model "Tldpm03E1" Compliance

    B.1.1 Regulatory model “TLDPM03E1” compliance The conformity assessment procedure mentioned in Article 17 and detailed in Annex III of Directive 2014/53/EU has been verified when it comes to the Teldat Connect-FW5G with Regulatory Model "TLDPM03E1" using the following technologies and bands: •...
  • Page 44 • 11n(HT20 MCS7): -66 dBm • 11n(HT40 MCS7): -64 dBm • 11ac(VHT20 MCS8): -61 dBm • 11ac(VHT40 MCS9): -58 dBm • 11ac(VHT80 MCS9): -55 dBm • 11ax(HE20 MCS11): -56 dBm • 11ax(HE40 MCS11): -53 dBm • 11ax(HE80 MCS11): -51 dBm Teldat Connect-FW5G...
