- Page 1 Manual Teldat S.A. Teldat Connect-FW Installation Manual Copyright© Teldat Dm1045-I Version 1.2 10/2022 Teldat S.A. Teldat Connect-FW...
- Page 2 This publication is subject to change. Teldat S.A. offers no warranty whatsoever for information contained in this manual. Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv- ery, supply or use of this manual.
-
Page 3: Table Of Contents
Chapter 2 Teldat Connect-FW ....... . 3 Characteristics ........ - Page 4 Environmental specifications ......Appendix B CE Radio Information....... 27 Teldat Connect-FW...
- Page 5 Teldat S.A. WI-FI specifications ........Teldat Connect-FW...
-
Page 6: I Related Documents
Related Documents Teldat S.A. I Related Documents Teldat Dm704-I Configuration and Monitoring Teldat Dm709-I LAN interfaces Teldat Dm748-I Software Updating Teldat Dm771-I Wireless LAN Interface. Teldat Connect-FW... -
Page 7: About This Guide
1 About this Guide Teldat S.A. Chapter 1 About this Guide This is the installation manual for the Teldat Connect-FW router and contains information on how to correctly install the device in a working environment. 1.1 Supported devices The information provided in this installation manual only applies to the Teldat Connect-FW router. -
Page 8: Teldat Connect-Fw
2.1.2 Hardware monitoring The LEDs on the front panel are used to monitor the hardware in the Teldat Connect-FW router. These LEDs provide visual information on the state of the device and reference the condition of the hardware components, indic- ating whether or not there is connectivity, data flow, etc. -
Page 9: Components And Power Supply

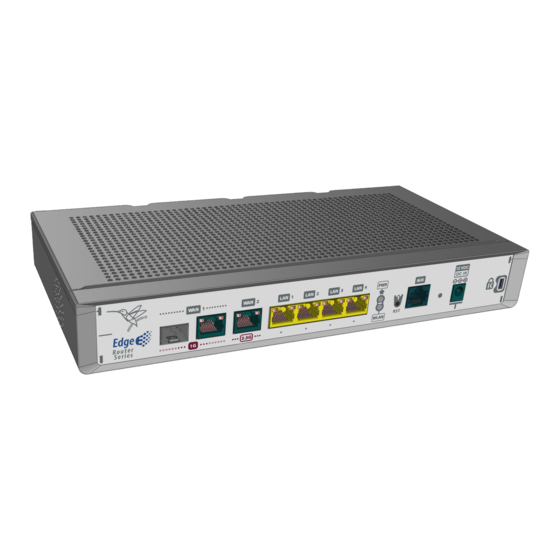

• SIM card installation. 3.1 Components 3.1.1 Front panel The following figure shows the front panel. Here you will find the majority of Teldat Connect-FW router connectors. Front panel Fig. 2: The following table provides information on each connector, as well as a description:... - Page 10 RST. Reset button. For further information on how the reset button works, please RST button on page 11. Aux. Provides access to the Teldat Connect-FW local console for configuration and monitoring purposes. For more information on the Aux connector, refer to:...
- Page 11 Switch LEDs Fig. 5: Switch LED indicators Description Yellow Connected to 10/100 M: - Steady: Not transferring data. - Blinking: Transferring data. Yellow + Green Connected to 1000 M: - Steady: Not transferring data. - Blinking: Transferring data. Teldat Connect-FW...
-
Page 12: Underside Panel
3.2 Mounting an anti-theft security cable Teldat Connect-FW devices have been equipped with a standard Kensington security slot for attaching a security cable. The T-bar lock of the security cable allows the device to be attached to an anchor point, thus preventing po- tential thefts. -
Page 13: Installation
3.3 Installation 3.3.1 Standalone Teldat Connect-FW devices can be placed as standalone on a flat, stable surface. Make sure there is enough space around the router (for ventilation purposes) and check that the power cord and data cables can easily reach it. -
Page 14: 19'' Rack Installation
Step 2. Hang the router on the screws. 3.3.3 19'' Rack installation The Teldat Connect-FW device can be installed in a 19” rack. Note The rack mount kit, composed of strips and screws, is not delivered by default with the router and must be acquired separately. -
Page 15: Power Source
Fig. 12: Note The device has been designed to allow brackets to be attached to the front or rear of the router chassis. 3.4 Power source The Teldat Connect-FW router is powered through an external AC/DC power adapter. Teldat Connect-FW... -
Page 16: Rst Button
• For the device to boot with the default configuration, release the Reset button while the WLAN LED is blinking (i.e., before the 10-second period expires). Once the default configuration is running, the router's default configuration establishes the following access IP and mask address: • IP address: 192.168.0.1 • IP mask: 255.255.255.0 Teldat Connect-FW... -
Page 17: Data Connections
3.6.2 WAN Combo connection The Teldat Connect-FW has one combo Gigabit Ethernet interface for WAN connection. This port has 2 connectors - SFP for an optical link and RJ45 for a 10/100/1000 Base-T link - but they cannot work simultaneously. -
Page 18: Wan 2.5G Connection
EN 60825-1:2007 standard. 3.6.3 WAN 2.5G connection The Teldat Connect-FW has one 2.5 Gigabit Ethernet interface for WAN connection. This port has an RJ45 for a 10/100/1000/2500 Base-T link with automatic MDI/MDIX detection. Please pay careful attention to the labeling to avoid mistaking these ports for other types of ports: WAN 2.5G connector... - Page 19 3 Components and Power Supply Teldat S.A. AUX. Connector Fig. 18: Teldat Connect-FW...
-
Page 20: Compliance
Parque Tecnológico de Madrid, 28760 Tres Cantos, Madrid, Spain International Phone +34 91 807 65 65 4.2 Risk identification WARNING: Signal word used to designate a potentially dangerous situation that may cause severe injuries or death if not avoided. 4.3 Safety warnings Teldat Connect-FW... - Page 21 4 Compliance Teldat S.A. Teldat Connect-FW...
-
Page 22: Weee Information
This device is an Energy Related Product (ErP) with High Network Availability (HiNA) and automatically switches to a power-saving Network Standby mode when no packets have been transmitted for 10 minutes (set by default). When the Teldat Connect-FW is not needed, it can also be turned off disconnecting the power supply to save en- ergy. -
Page 23: Ec Declaration Of Conformity
Richtlinie 2009/125/EG (ErP) Richtlinien 2011/65/EU und 2015/863/EU (RoHS) des Europäischen Parlaments. Spanish (ES) Español Por la presente, Teldat S.A. declara que el tipo de equipo de telecomunicaciones Teldat Connect-FW es conforme con: Directiva 2014/53/EU (RED) o Directiva 2014/30/UE (EMC) Directiva 2014/35/UE (LVD) -
Page 24: National Restrictions
27. 4.12 Intended use of the equipment The Teldat Connect-FW can be deployed as a Customer Premises Equipment (CPE) in enterprise branch offices or in environments managed by the service provider. This product must only be used indoors. -
Page 25: Appendix A Technical Information
A.3 Connecting to the device A.3.1 Connecting using the local console (AUX connector) The Teldat Connect-FW router has a RJ45 female connector on the front panel, known as AUX, which provides ac- cess to the device's local console. AUX Connector Fig. -
Page 26: Connectors
Connection to the configuration port can be carried out using the the RJ45 connector cable, supplied with the device, and an RJ45 female-DB9 female adapter (also provided). Connecting for Configuration Fig. 20: For further information, please see manual: “Teldat Dm704-I Configuration and Monitoring” . A.4 Connectors A.4.1 LAN connectors RJ45 LAN... -
Page 27: Wan Base-T Connectors
A.4.2 WAN Base-T connectors RJ45 WAN RJ45 PIN FE Signals GE Signals BI-DA+ BI-DA+ BI-DA- BI-DA- BI-DB+ BI-DB+ BI-DC+ BI-DC- BI-DB- BI-DB- BI-DD+ BI-DD- A.4.3 WAN SFP connector Standard SFP connector A.4.4 Configuration connector RJ45 CONFIGURATION RJ45 PIN CONF Teldat Connect-FW... -
Page 28: Power Supply Connector
Memory (4 GBytes). A.5.2 LAN interface PROTOCOLS Ethernet (802.3). PORTS 4-port MDI/MDX auto-detection. SPEED 10/100/1000 Mbps (Base-T). CONNECTOR RJ45 female. A.5.3 WAN Base-T interface STANDARDS Ethernet (802.3). SPEED WAN-1: 10/100/1000 Mbps (Base-T). WAN-2: 10/100/1000/2500 Mbps (Base-T). CONNECTOR RJ45 female. Teldat Connect-FW... -
Page 29: Wan Sfp Interface
Technical Information Teldat S.A. A.5.4 WAN SFP interface STANDARDS 802.1Q (VLAN). 1000-Base-X. MSA and SFF 8472 compliant. SPEED 1000 Mbps full duplex. TYPES LX/LH (single-mode 1310 nm). SX (multi-mode 850 nm). ZX (single-mode 1550 nm). CONNECTOR Standard SFP connector. Teldat Connect-FW... -
Page 30: Wireless Lan Interface
802.11ac: up to 192.6Mbps (20MHz channel) 802.11ac: up to 400Mbps (40MHz channel). 802.11ac: up to 866.7Mbps (80MHz channel) 802.11ax: 2.4GHz up to 458Mbps, 5GHz up to 1.2Gbps. Output power limitation Adjustable Output Power @2.4GHz: Max. 16,35 dBm @5GHz: Max. 18,12 dBm Teldat Connect-FW... -
Page 31: Configuration Interface
283mm x 144mm x 40mm WEIGHT 0.6 Kg A.5.9 Environmental specifications TEMPERATURE OPERATING NORMALLY: 0 ºC to 45 ºC. STORED: -25 ºC to 70 ºC. RELATIVE HUMIDITY 10 % to 95 %. NOISE 38.3 dB SPL (5000 rpm). Teldat Connect-FW... -
Page 32: Appendix Bce Radio Information
• 11n(HT20 MCS7): -72 dBm • 11n(HT40 MCS7): -70 dBm • 11ax(HE20 MCS11): -62 dBm • 11ax(HE40 MCS11): -59 dBm • 5GHz • 11a(54Mbps): -68 dBm • 11n(HT20 MCS7): -66 dBm • 11n(HT40 MCS7): -64 dBm • 11ac(VHT20 MCS8): -61 dBm Teldat Connect-FW... - Page 33 CE Radio Information Teldat S.A. • 11ac(VHT40 MCS9): -58 dBm • 11ac(VHT80 MCS9): -55 dBm • 11ax(HE20 MCS11): -56 dBm • 11ax(HE40 MCS11): -53 dBm • 11ax(HE80 MCS11): -51 dBm Teldat Connect-FW...
