1 Router Installation
Requires a software license for operating purposes.

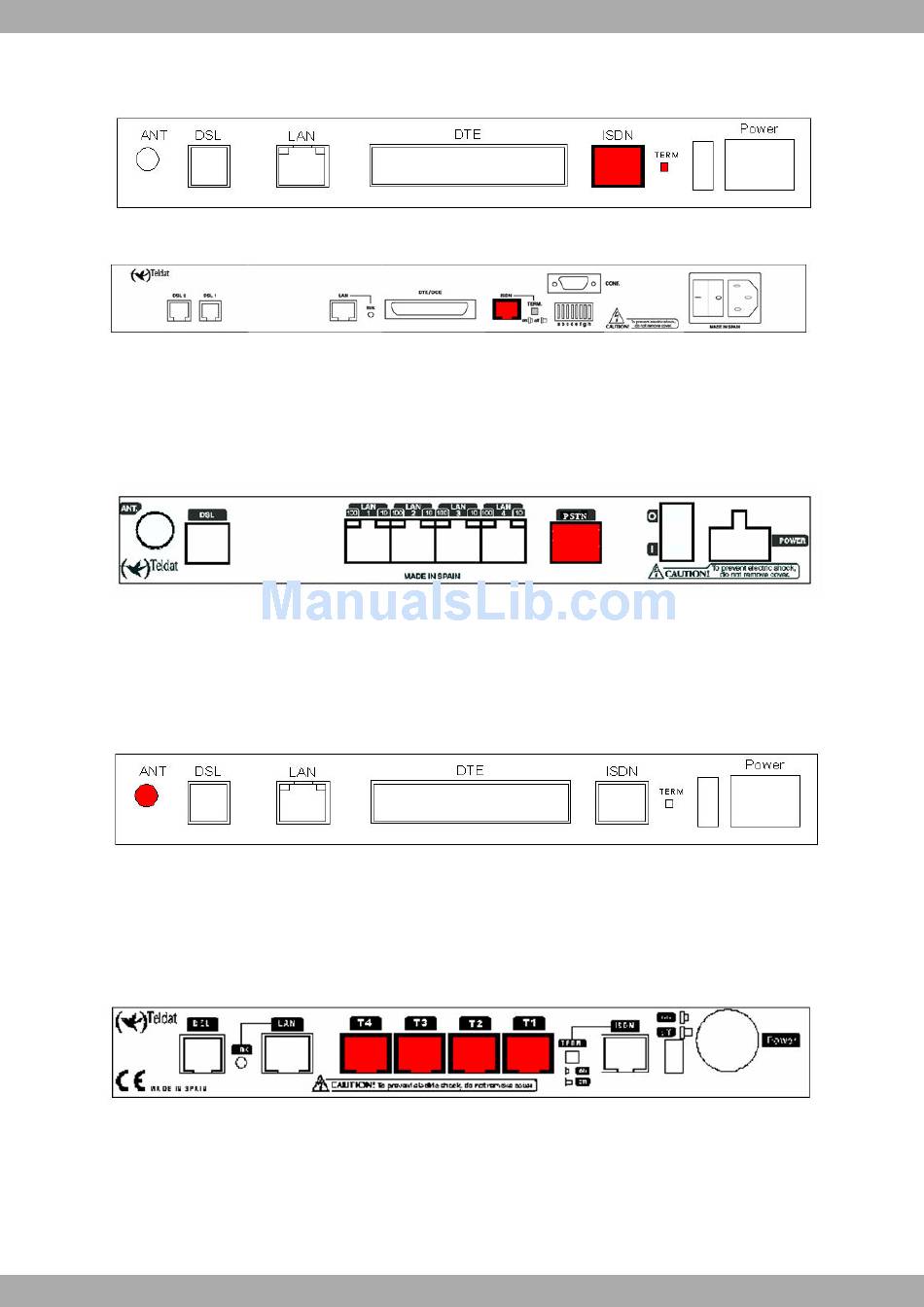

Fig. 12: ISDN connector and TERM pushbutton
Fig. 13: ISDN connector and TERM pushbutton: Teldat C6
PSTN:
RTC modem interface (V.92 bis or similar).
Available depending on the model.
Fig. 14: PSTN Connector
ANT.:
RF antenna connector.
Requires a GSM/GPRS plug-in card and software license for operating purposes.
Fig. 15: RF antenna connector
ASYNCHRONOUS SERIAL INTERFACES:
Asynchronous serial interfaces to connect POS modems (point of sale) etc.
Available depending on model.
Fig. 16: Specific asynchronous POS connectors
1.2.2.1 DSL Connection
The DSL interface has a female RJ11 connector with 4 wires. Only the central pair is used for data transmission/recep-
tion. SHDSL, however, uses 4 wires.
For connection purposes, use the telephone cable with male RJ11connectors (provided with the router).
6 Teldat C/S/G/A Routers Family Installation Manual
