1 Router Installation

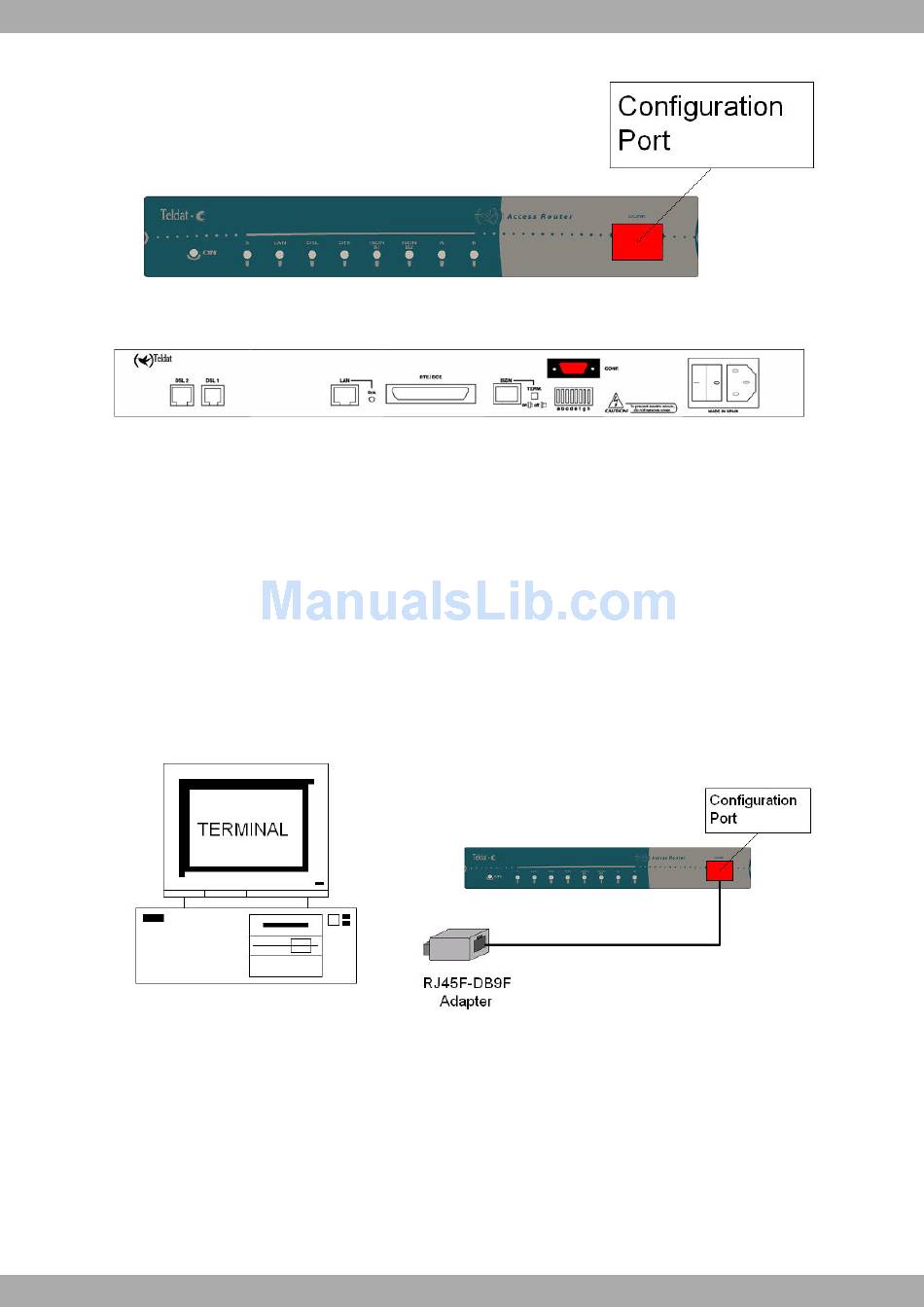

Fig. 22: Configuration connector
Fig. 23: Configuration connector in the Teldat C6 model
To connect to the configuration port, use the RJ45 cable together with the female RJ45-female DB9 adapter, both
provided with the device. If the terminal has DB25 connectors, you must use an additional adapter. The Teldat C6 re-
quires a serial cable with DB9 male/DB9 female connectors with an additional adapter.
Fig. 24: Connection for configuration

1.3 Installing the SIM card

The Teldat G has a GSM/GPRS interface where at least one SIM card must be inserted so the router can operate.
The Teldat G can include one or two SIM trays, depending on the hardware. The SIM trays are located inside the
device, so you need to remove the outer casing to install the SIMs.
In devices with two SIM trays, you need to install at least one SIM card. When only one SIM card is being used, it
must be inserted in the SK1 tray.
10
Terminal configuration is as follows:
- Speed: 9600 bps
- Eight data bits
- One stop bit
- No bit parity
- No type of flow control
