1 Router Installation
DTE
PSTN
A
B
C

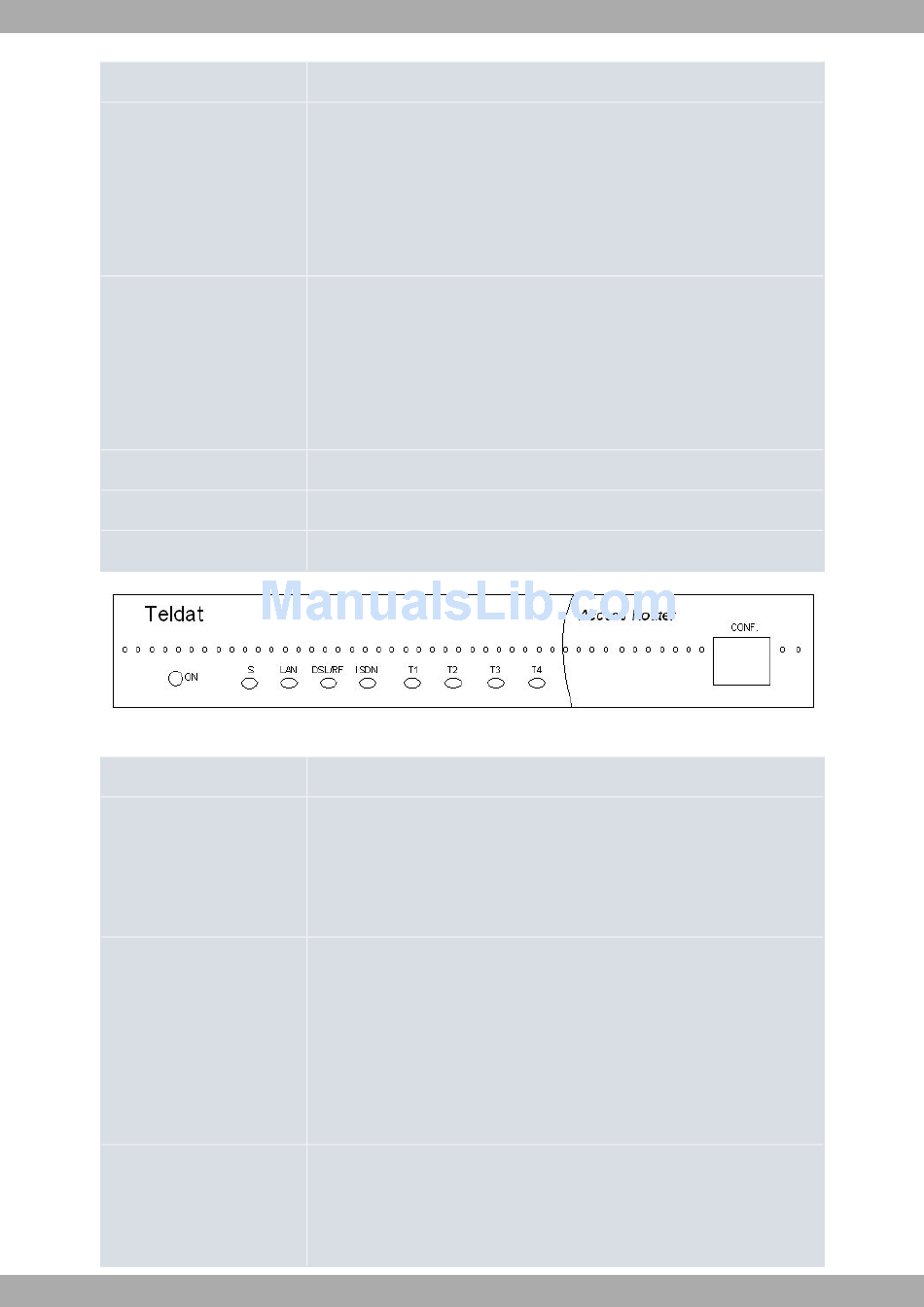

Fig. 29: Teldat C/S/G routers with ISDN (front panel) (with specific POS asynchronous interfaces)
ON
S
LAN
DSL / RF
14
Blinking: Traffic over the interface.
Multistandard serial interface:
OFF Port not initialized.
RED Port initialized.
YELLOW Establishing the link.
GREEN Communication established.
V.92 bis modem:
OFF Physical level not available.
RED ERROR: Errors on the line (physical level) or call in progress.
YELLOW Establishing connection.
GREEN Call established.
Reserved.
Reserved.
Reserved.
Power-on indicator: It lights up when connected to the power.
Router operations:
OFF System off.
GREEN System initialized and operating.
YELLOW System with established Telnet session.
Ethernet LAN Interface:
OFF LAN interface does not send data.
RED ERROR: Interface unavailable because it is unsupported or has failed test.
YELLOW Interface initialization in process.
GREEN Interface available.
Blinking: Maintenance frame.
DSL or RF interface or internal dial-up modem:
OFF Interface unavailable (not supported).
RED Interface not established, there is no data connection.
