Manual
Teldat S.A.

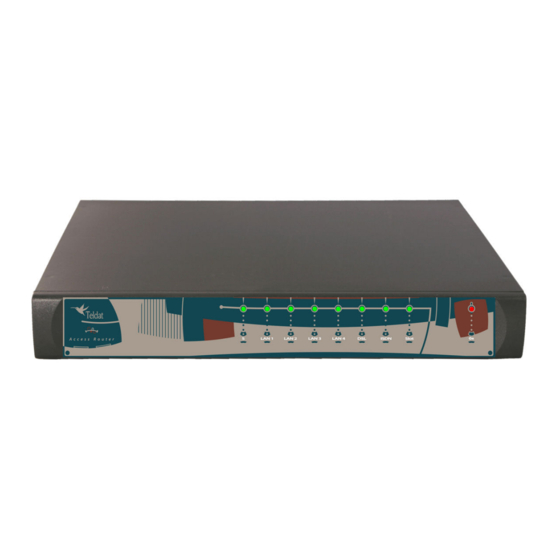

Teldat C+ Router Family
Teldat-Dm 353-I
Copyright© Version 3.2 Teldat S.A.
Teldat C+ Router Family
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C+ Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teldat C+ Series

Summary of Contents for Teldat C+ Series

  • Page 1 Manual Teldat S.A. Teldat C+ Router Family Teldat-Dm 353-I Copyright© Version 3.2 Teldat S.A. Teldat C+ Router Family...
  • Page 2 This publication is subject to change. Teldat S.A. offers no warranty whatsoever for information contained in this manual. Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv- ery, supply or use of this manual.

  • Page 3: Table Of Contents

    Technical Specifications ....... . Translated safety warnings....... Teldat C+ Router Family...
  • Page 4 Table of Contents Teldat S.A. Teldat C+ Router Family...

  • Page 5: I Important Information

    Furthermore, it is crucial to avoid any kind of contact between the device components and necklaces, bracelets, rings, ties etc. Teldat C+ Router Family...

  • Page 6: Installing The Router

    LAN users and accommodating teleprocess networks and SNA support. The Teldat C+ covers the access needs for ADSL and ADS2+ (both over PSTN and ISDN). For local area net- works (LANs), the routers can incorporate Switch LAN Ethernet and Wireless LAN MINI-PCI Module.

  • Page 7: Connections

    Turn the switch ON. Note Some devices, such as the C1+, and the new C8+ and C9+ models, have an internal power supply source. Consequently, the above steps are redundant. Teldat C+ Router Family...

  • Page 8: Power Source Connection

    Teldat S.A. 1.2.1 Power Source Connection Some of the Teldat C+ models are powered with an external AC/DC source. To avoid electric shocks, residual current circulation and any other unwanted effects that may disrupt communica- tion, the following is recommended:...

  • Page 9: Data Connections

    SWITCH: The Teldat C+ incorporates a 4 or 8 port Switch or 2 x 8 (i.e. total of 16 ports) 10/100BaseT with automatic MDI/ MDIX for local area network (LAN) connection: this has a 100 LED indicating connection at 100 Mbps, and a 10 LED indicating connection at 10 Mbps.
  • Page 10 You need a software license for operating purposes. Fig. 19: Teldat C1+ model: ISDN connector Fig. 20: Teldat C8+ model (external source): ISDN connector and TERM pushbutton Fig. 21: Teldat C8+ model (internal source): ISDN connector and TERM pushbutton Teldat C+ Router Family...
  • Page 11 1 Installing the Router Teldat S.A. Fig. 22: Teldat C9+ model (external source): ISDN connector and TERM pushbutton Fig. 23: Teldat C9+ model (internal source): ISDN connector and TERM pushbutton ANT.: RF antenna connectors: For it to function, the router must have a Wireless LAN plug-in card and the appropriate software license. In some models, antennas are installed as a factoty setting.
  • Page 12 Use the RJ45 male connector cable for this, which is provided with the router. Passive-Bus termination resistors The Teldat C+ have a pushbutton (labeled TERM.) that allows you to connect the BUS-S termination resistors. Teldat C+ Router Family...
  • Page 13 (NT1, TR1, etc.) terminator on the ISDN S bus. By default, the device is configured in the latter position. Fig. 33: Single or last terminal • Intermediate position in the ISDN S bus The TERM pushbutton must be in the OFF position if the router occupies an intermediate position in the ISDN S bus. Teldat C+ Router Family...
  • Page 14 1.2.2.4 Configuration connection The Teldat C+ has a female RJ45 connector on the rear panel labeled Conf., which provides access to the device’s local console. For configuration purposes, connect the Conf. port to an asynchronous terminal (or to a PC with ter- minal emulation).

  • Page 15: Meaning Of The Leds

    Fig. 40: Connection for configuration 1.3 Meaning of the LEDs Fig. 41: Teldat C8/C9+ external source: Front panel Fig. 42: Teldat C8/C9+ internal source: Front panel Power-on indicator. This lights up when connected to the power. Router operation OFF: System off.
  • Page 16 OFF: Interface not available or not installed (not supported). RED: Interface has not established, no data connection. YELLOW: Connecting. GREEN: Communication established. Fig. 43: Teldat C1+ front panel Power-on indicator. It lights up when connected to the power. . Router operation: OFF: System off.

  • Page 17: Programming The Microswitches

    (where there is a default configuration file config.def). This block is normally on the underside of the Teldat C+ , except for the c1+ where it is on the rear panel. These should not be handled by the user unless it is necessary to reestablish the default configurations.
  • Page 18 Press any key to get started At this point, return microswitch 5 to the OFF position (you don’t need to turn off the device). The next time you re- start the device, the saved configuration will run. Teldat C+ Router Family...

  • Page 19: Appendix

    S bus is in the correct position. The LEDs indicate that the inter- Check the configuration (routes, IP addresses, ATM VPIs/VCIs, ATM encapsula- faces are established, but there tion, serial interface speed, etc.). is no connectivity at the data layer. Teldat C+ Router Family...

  • Page 20: Software Updating

    2.2 Software updating The Teldat C+ can be updated to newer versions. Please contact your dealer for further details on new versions. There are several ways to update a Teldat router. For further information, please see the software upgrading manual.

  • Page 21: Isdn Connector

    ISDN Tx+ (output) Rx+(input) Rx-(input) Tx-(output) 2.3.4 ANT Connector PINOUT Internal RF in/out External 2.3.5 Configuration Connector RJ45 CONFIGURATION RJ45 PINOUT CONF 2.4 Technical Specifications Hardware Architecture PROCESSORS Motorola PowerPC MPC8xx. MEMORY 32/128 Mbytes in SDRAM. Teldat C+ Router Family...
  • Page 22 RJ45 female on the rear part of the device. C8+/C9+ External power supply INPUT VOLTAGE 100-240V AC INPUT CURRENT INPUT FREQUENCY 50-60 Hz MAXIMUM POWER 45 VA C1+/C8+/C9+ Internal power supply INPUT VOLTAGE 100-240V AC INPUT CURRENT 1,5 A Teldat C+ Router Family...
  • Page 23 Teldat C1+ Dimensions and weight TYPE Desktop. LENGTH x WIDTH x HEIGHT 270 x 315 x 43 mm. WEIGHT 2,1 Kg. Teldat C8+/C9+ Internal Power Dimensions and weight TYPE Desktop. LENGTH x WIDTH x HEIGHT 300 x 415 x 41,6 mm. WEIGHT 3,5 Kg.

  • Page 24: Translated Safety Warnings

    2 Appendix Teldat S.A. 2.5 Translated safety warnings Teldat C+ Router Family...

This manual is also suitable for:

C1+C9+C8+
