Teldat C Installation Manual page 17

Teldat S.A.
ISDN
B2
A
B

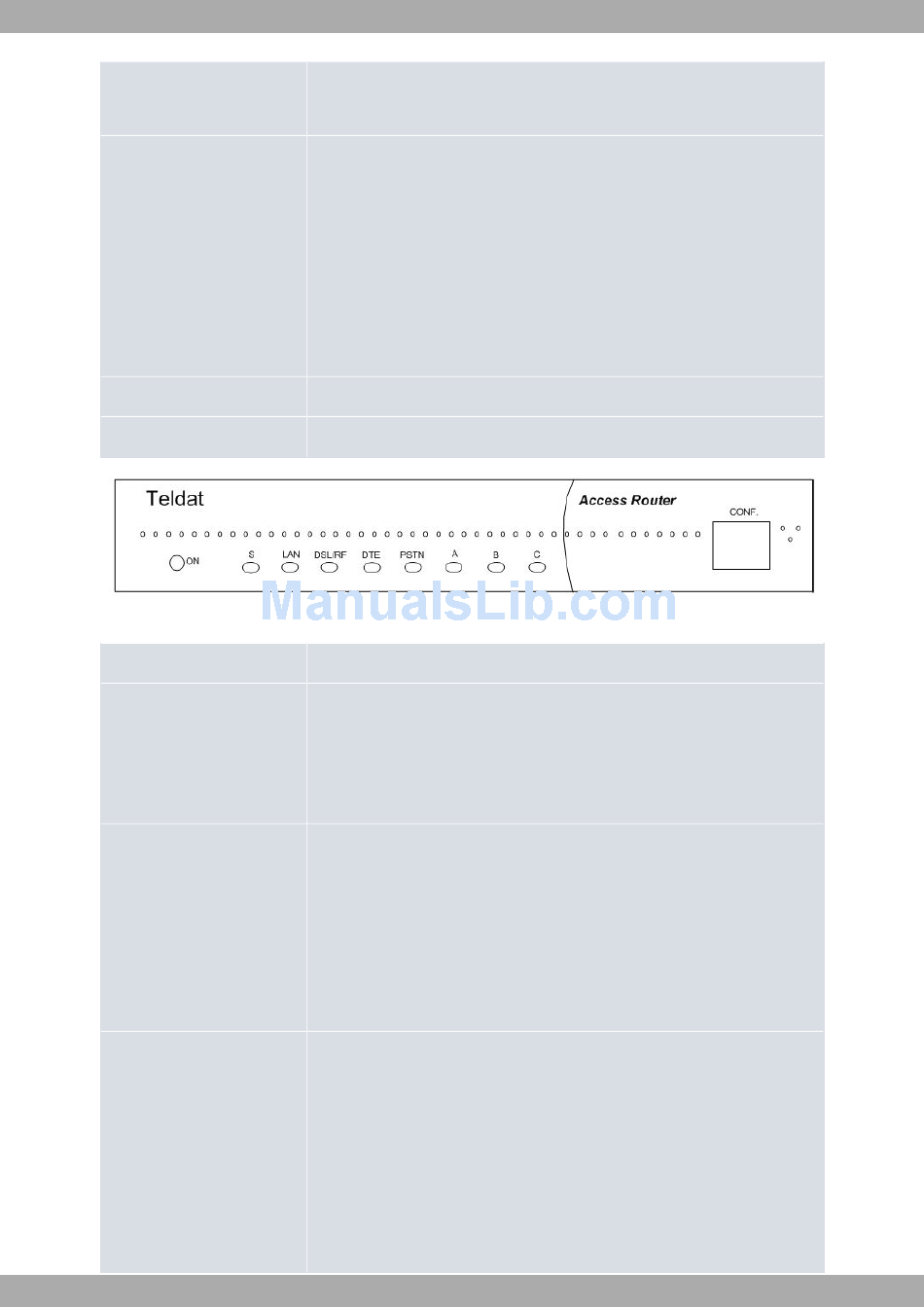

Fig. 28: Teldat C/S/G with PSTN (front panel) (without TPV asynchronous interfaces or switch)
ON
S
LAN
DSL / RF
Teldat C/S/G/A Routers Family Installation Manual
Light blinking green / off: Switched channel.
Light blinking green / yellow: Permanent channel.
ISDN Interface Channel B2:
OFF Physical level unavailable.
RED ERROR: Line errors (physical level) or call in progress.
YELLOW Physical level established.
GREEN Call established through B2 channel (B2 channel from the network).
Light blinking green / off: Switched channel.
Light blinking green / yellow: Permanent channel.
Reserved.
Reserved.
Power-on indicator: It lights up when connected to the power.
Router operations:
OFF System stopped.
GREEN System initialized and operating.
YELLOW System with Telnet session established.
Ethernet LAN Interface:
OFF LAN interface is not sending data.
RED ERROR: Interface unavailable because it is unsupported or has failed test.
YELLOW In process of initializing interface.
GREEN Interface is available.
Blinking: heartbeat.
DSL or RF interface or internal dial-up modem:
OFF Interface is unavailable (not supported).
RED Interface not established, there is no data connection.
Blinking: in cases where this is xDSL, there are problems with the interface firm-
ware.
YELLOW Connecting.
GREEN Communication established.
1 Router Installation
13
