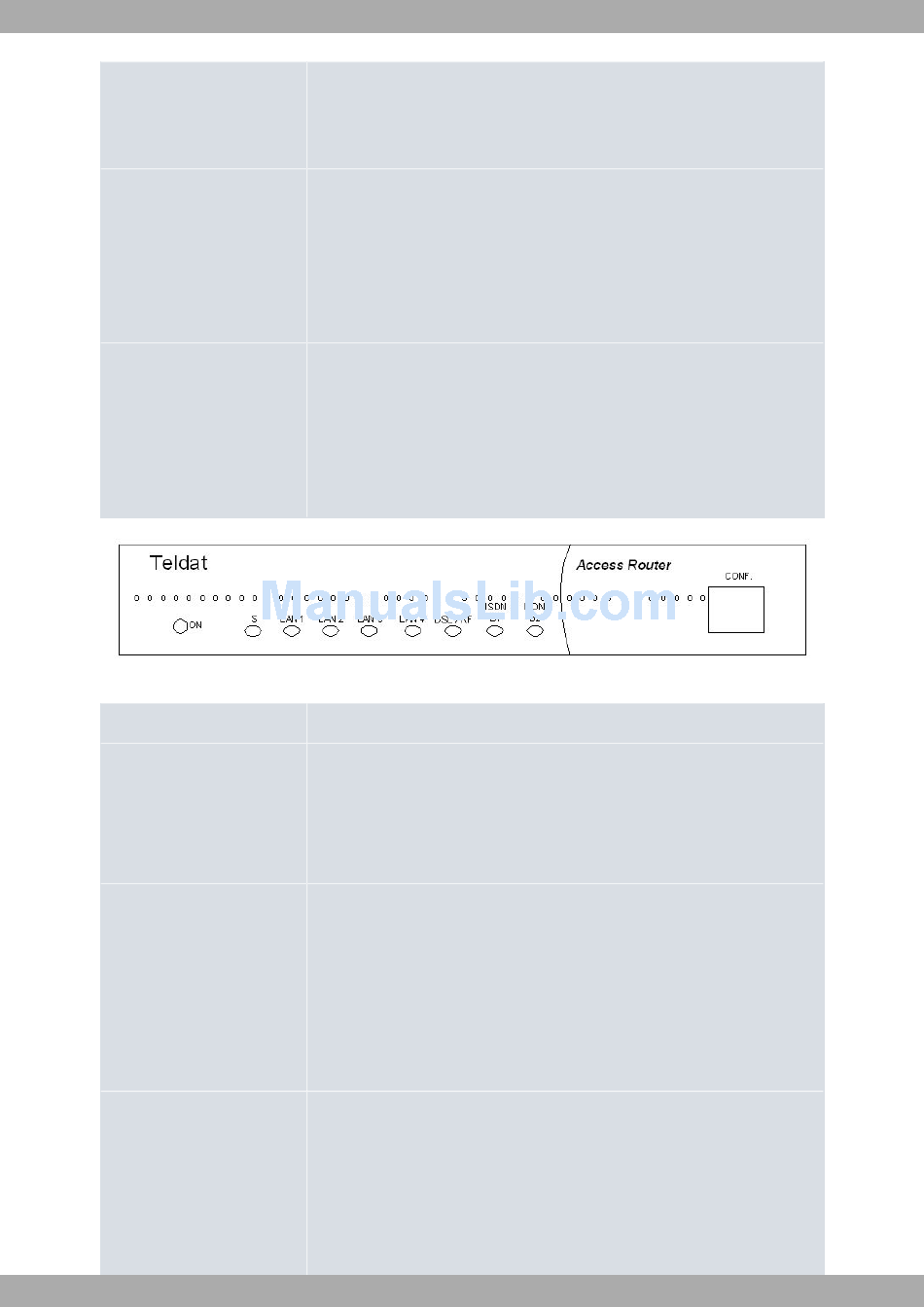

Fig. 30: Teldat C/S/G with switch and ISDN (front panel)
ON
S
LANx
DSL / RF
Teldat C/S/G/A Routers Family Installation Manual
YELLOW Connecting.
GREEN Communication established.
Blinking: Traffic through the interface.
ISDN Interface:
OFF Physical level unavailable.
RED ERROR: Errors in line (physical level) or call in progress.
YELLOW Physical level established.
GREEN Call established.
POS Interfaces:
OF Port not initialized.
RED Port initialized in stand-by.
YELLOW In process of establishing link.
GREEN Communication established.
Power-on indicator: This lights up on being connected to the power supply.
Router operation:
OFF System stopped.
GREEN System up and running.
YELLOW System with Telnet session established.
Ethernet LAN Interface:
OFF LAN interface does not send data.
RED ERROR: Interface unavailable because it is unsupported or has failed test.
YELLOW Interface initialization process.
GREEN Interface available.
Blinking:heartbeat.
DSL or RF Interface or internal dial-up modem:
OFF Interface unavailable (not supported).
RED Interface not established, there is no data connection.
Blinking: xDSL, problems with the interface firmware.
YELLOW Connecting.
