SWITCH:
4 port switch 10/100BaseT with automatic MDI/MDIX to connect to the LAN (local area network). Routers with a
switch have two connection LEDs: one for connections at 100 Mbps and the other for connections at 10 Mbps.
Please, pay close attention to the labelling to avoid confusing the switch with the four asynchronous ports.
Avalability depends on the model.

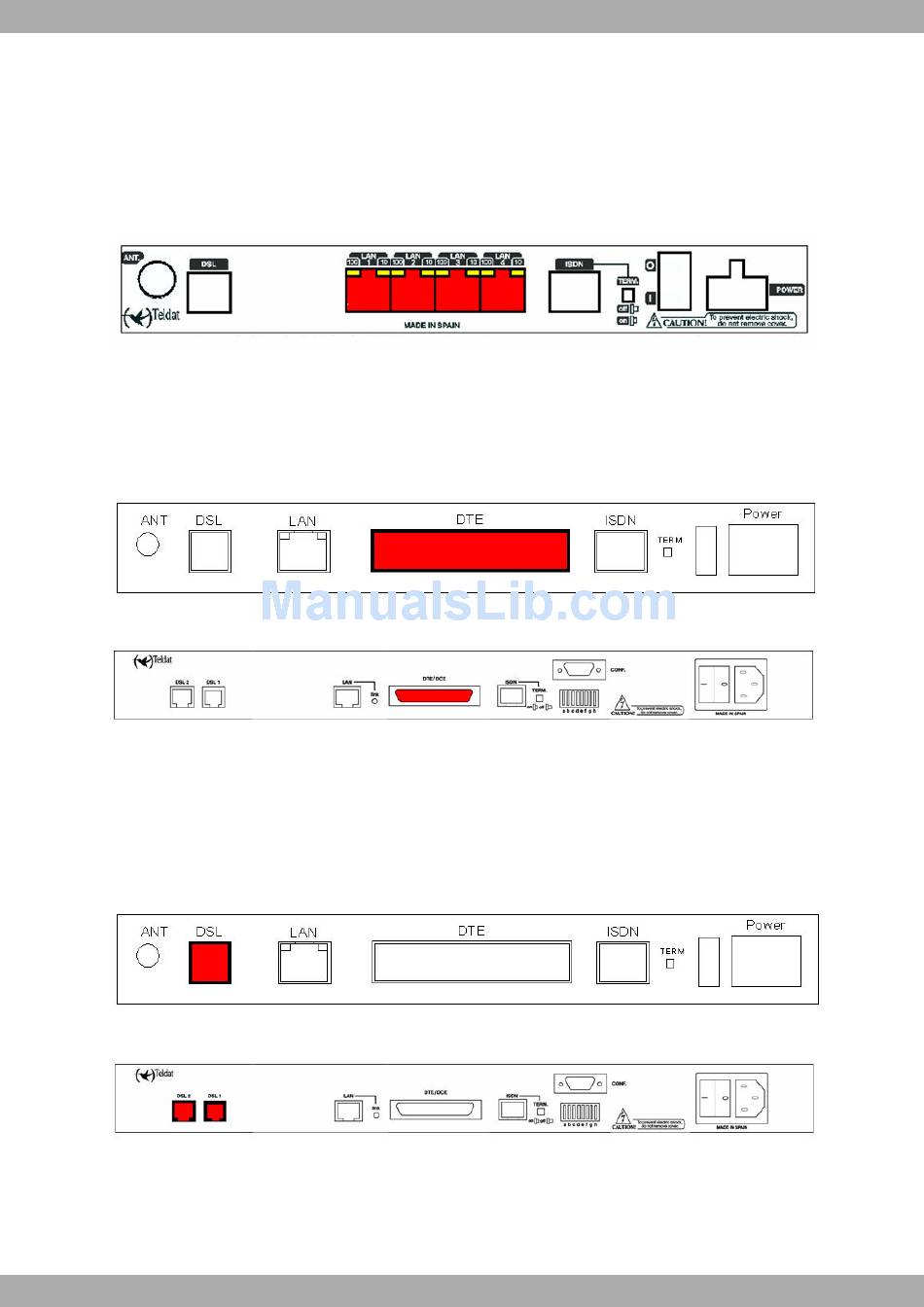

Fig. 7: Switch LAN connector: LEDs 100 and 10
DTE / DCE:
Multistandard serial interface to connect to an external modem, POS, or X.25 WAN, Frame Relay, PPP, etc.
Requires an insertable driver (V.24, V.35, V.36, X.21, RS-485) and software license for operating purposes.
Fig. 8: DTE/DCE connector
Fig. 9: DTE/DCE connector: Teldat C6
The Teldat C and Teldat S have an xDSL interface (ADSL over PSTN, ADSL over ISDN, SHDSL, etc.).
Model C6 has ADSL over PSTN.
Teldat A is equipped with a dial up modem interface.
Requires an xDSL plug-in card, or dial-up modem, and software license for operating purposes.
Fig. 10: ADSL Connector
Fig. 11: ADSL Connector: Teldat C6
ISDN:
Basic ISDN 2B+D interface. A switch (TERM.) is available to insert the S bus terminal load.
