Connection - Sim2 AR User Manual

User LAN: only LAN connection exist.
•
Internet: LAN connection and Internet connection exist.
•
Remote Control: LAN Connection, internet connection and remote control are
•
operating.
Unknown: Invalid Network parameters.
•
IP Address Setup
Use this function to select the desidered mode for the assignment of the IP Address to the Net-
work Settings.
DHCP: Assign automatically an IP address to the projector from an external DHCP server.
•
STATIC: Assign an IP address manually.
•
Note: When changing from DHCP to STATIC mode, the new setting will take effect only exiting
and entering again the Network Setting submenu.
In DHCP mode IP Address, Subnet Mask, Default Gateway are not selectable because the server
automatically assign their reference values.
In STATIC mode IP Address, Subnet Mask, Default Gateway have to be inserted manually.
IP Address: select an IP address
•
Subnet Mask: select subnet mask number
•
Default Gateway: select the default gateway of the network connected to the projector.
•
MAC Address: the projector MAC address will be shown after the assignment of the
•
above data
Apply Settings: use the ● button on the remote control or the O on the keypad to apply
•
the selections. A message "Command Sent" will be shown.
Note: if any change is done on IP Address or Subnet Mask or Default Gateway or the IP Address
Setup mode, "Apply Settings" is necessary to make effective the new data. Exit the Network Set -
tings submenu and enter again to check if the changes have been applied.

Connection

Input
Connect the dedicated LAN connector on the back panel of the projector to the network with a Cat5
Ethernet Cable.
SIM2 BV International s.r.l

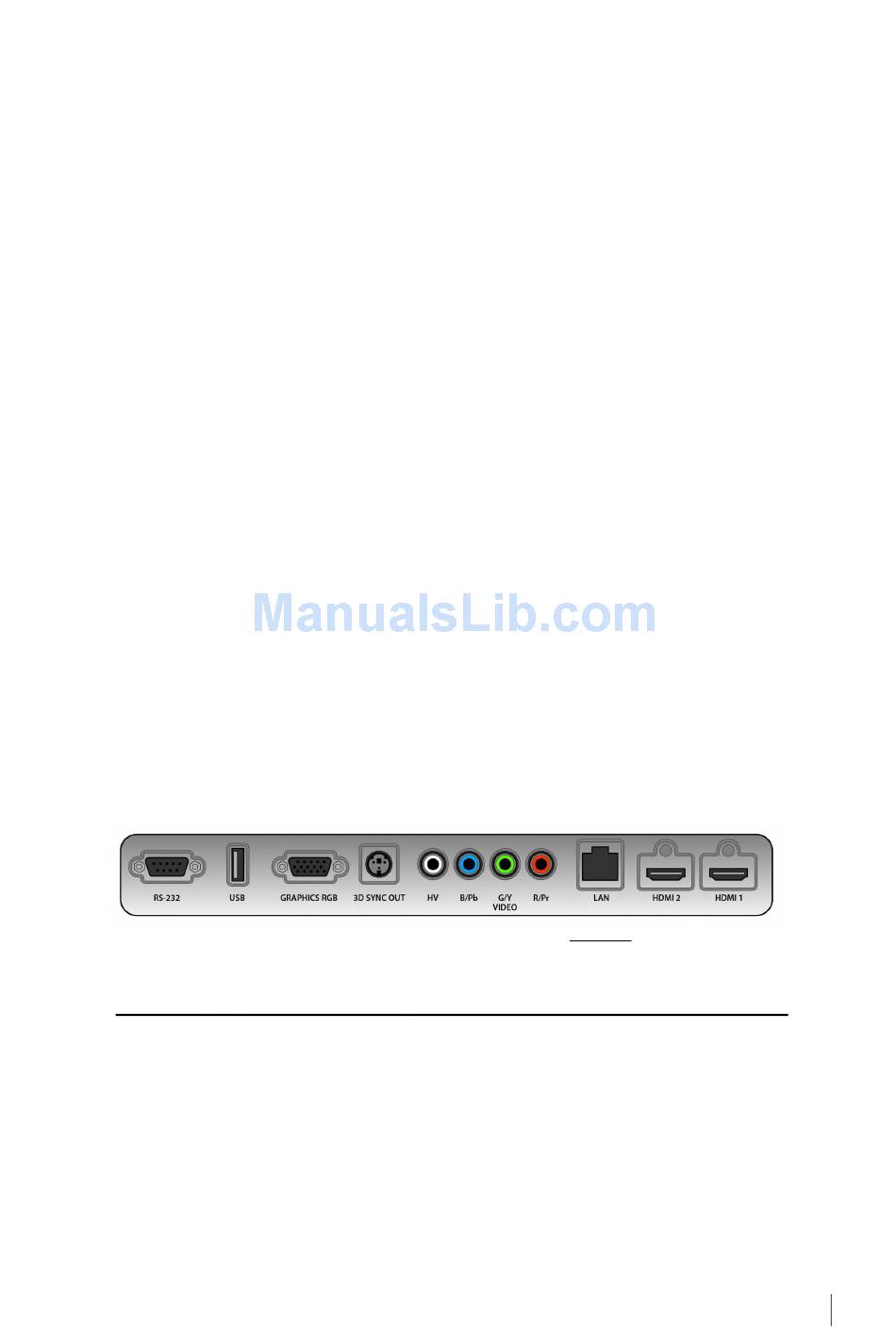

❶ LAN RJ-45 Networking Connector
❶
AR User Guide 47
