Mounting

Use the provided bracket to fix the probe to the projector as described below.

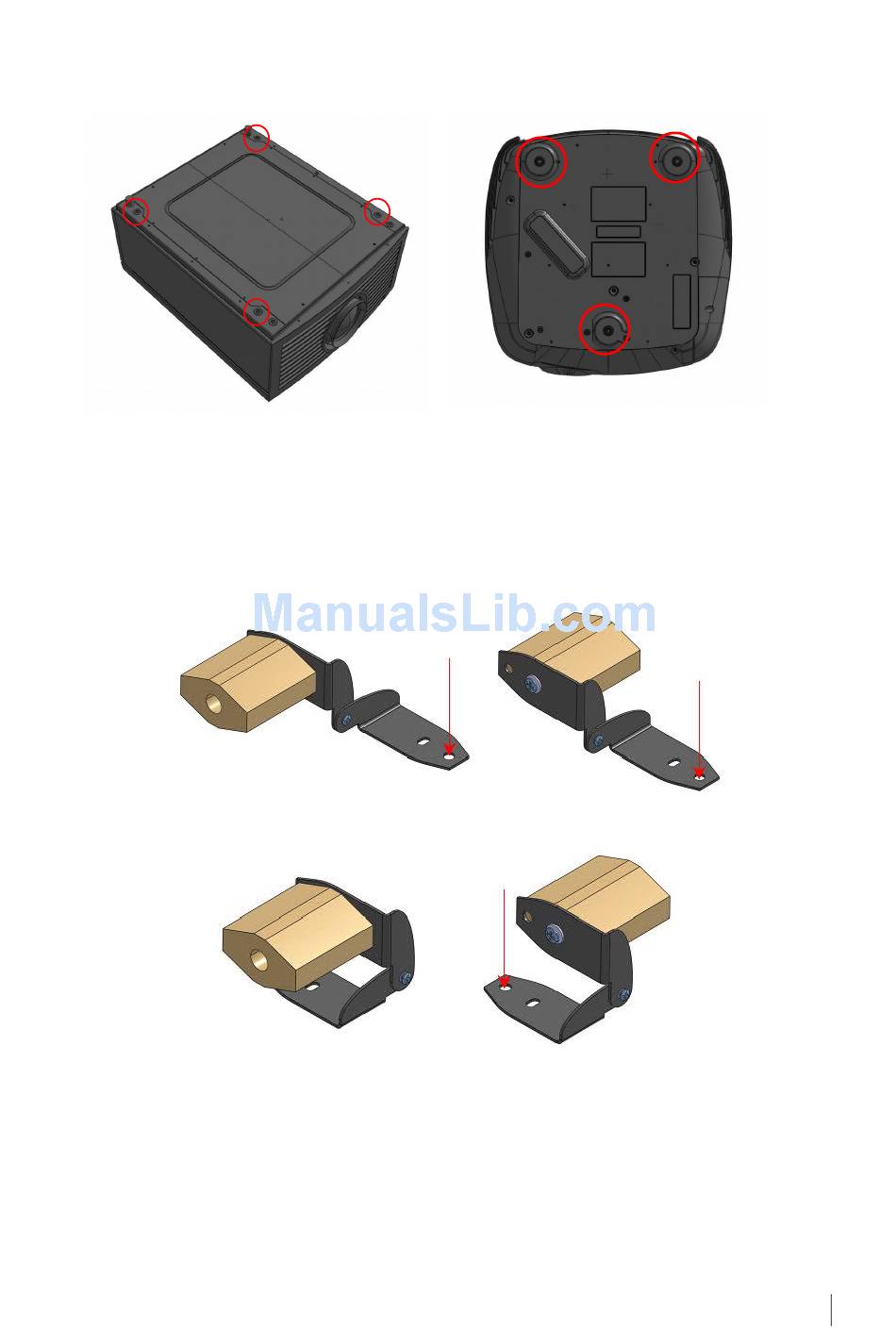

Example: a couple of SIM2 projectors where to install the AUTOCAL
The probe bracket could be fixed into one of the circled holes depending the point that has to be
measured.
Use the supplied screws to fix the bracket, the probe to the bracket and the bracket to the pro-
jector into the hole choosen.
Brackets fixing possibilities:
Note: The maximum distance at which the probe can be installed must be less or equal the
height of the projection screen divided by the coefficient of 0.17.
