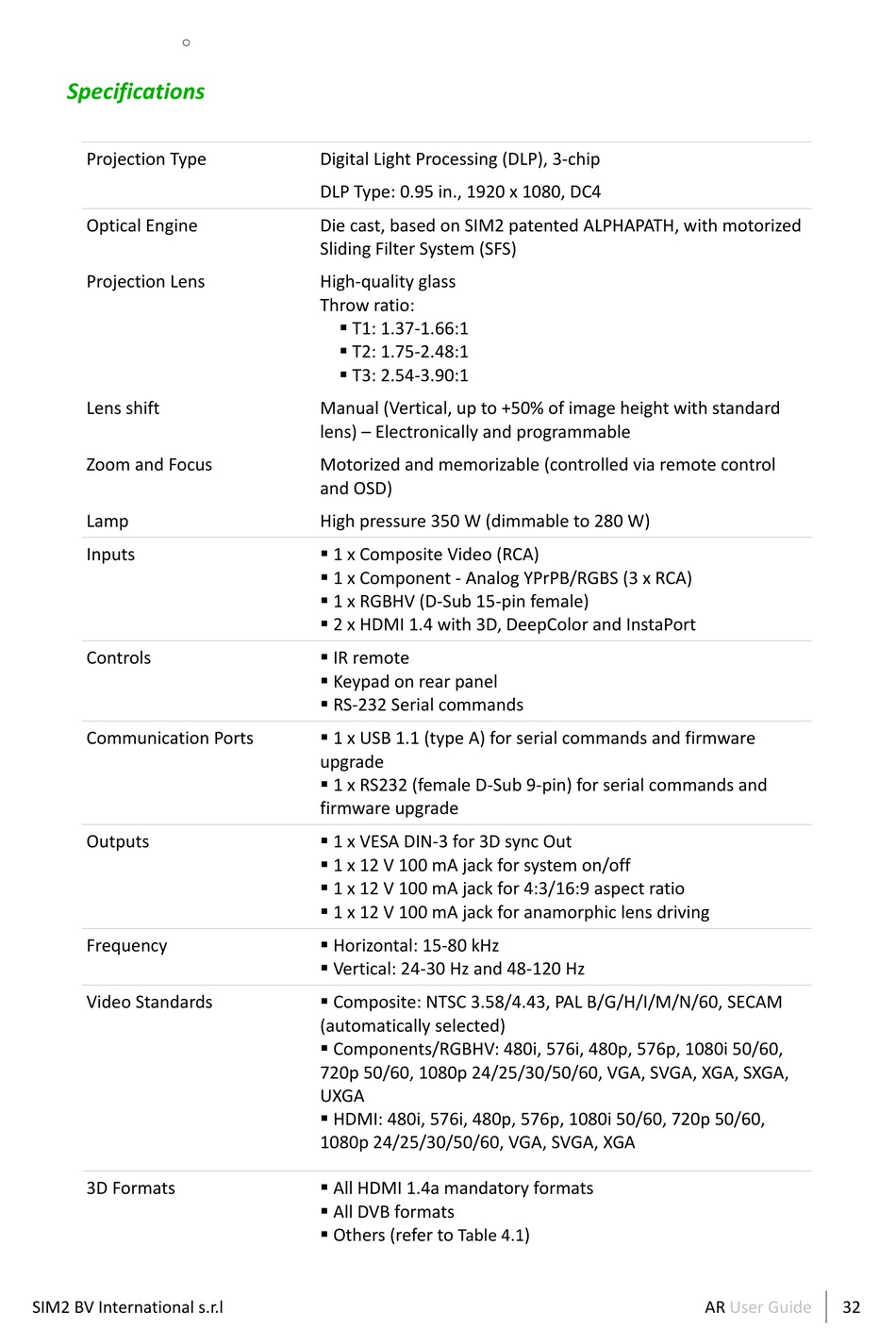

Specifications

Projection Type
Optical Engine
Projection Lens
Lens shift
Zoom and Focus
Lamp
Inputs
Controls
Communication Ports
Outputs
Frequency
Video Standards
3D Formats
SIM2 BV International s.r.l
Digital Light Processing (DLP), 3-chip
DLP Type: 0.95 in., 1920 x 1080, DC4
Die cast, based on SIM2 patented ALPHAPATH, with motorized
Sliding Filter System (SFS)
High-quality glass
Throw ratio:
 T1: 1.37-1.66:1
 T2: 1.75-2.48:1
 T3: 2.54-3.90:1
Manual (Vertical, up to +50% of image height with standard
lens) – Electronically and programmable
Motorized and memorizable (controlled via remote control
and OSD)
High pressure 350 W (dimmable to 280 W)
 1 x Composite Video (RCA)
 1 x Component - Analog YPrPB/RGBS (3 x RCA)
 1 x RGBHV (D-Sub 15-pin female)
 2 x HDMI 1.4 with 3D, DeepColor and InstaPort
 IR remote
 Keypad on rear panel
 RS-232 Serial commands
 1 x USB 1.1 (type A) for serial commands and firmware
upgrade
 1 x RS232 (female D-Sub 9-pin) for serial commands and
firmware upgrade
 1 x VESA DIN-3 for 3D sync Out
 1 x 12 V 100 mA jack for system on/off
 1 x 12 V 100 mA jack for 4:3/16:9 aspect ratio
 1 x 12 V 100 mA jack for anamorphic lens driving
 Horizontal: 15-80 kHz
 Vertical: 24-30 Hz and 48-120 Hz
 Composite: NTSC 3.58/4.43, PAL B/G/H/I/M/N/60, SECAM
(automatically selected)
 Components/RGBHV: 480i, 576i, 480p, 576p, 1080i 50/60,
720p 50/60, 1080p 24/25/30/50/60, VGA, SVGA, XGA, SXGA,
UXGA
 HDMI: 480i, 576i, 480p, 576p, 1080i 50/60, 720p 50/60,
1080p 24/25/30/50/60, VGA, SVGA, XGA
 All HDMI 1.4a mandatory formats
 All DVB formats
 Others (refer to Table 4.1 )
