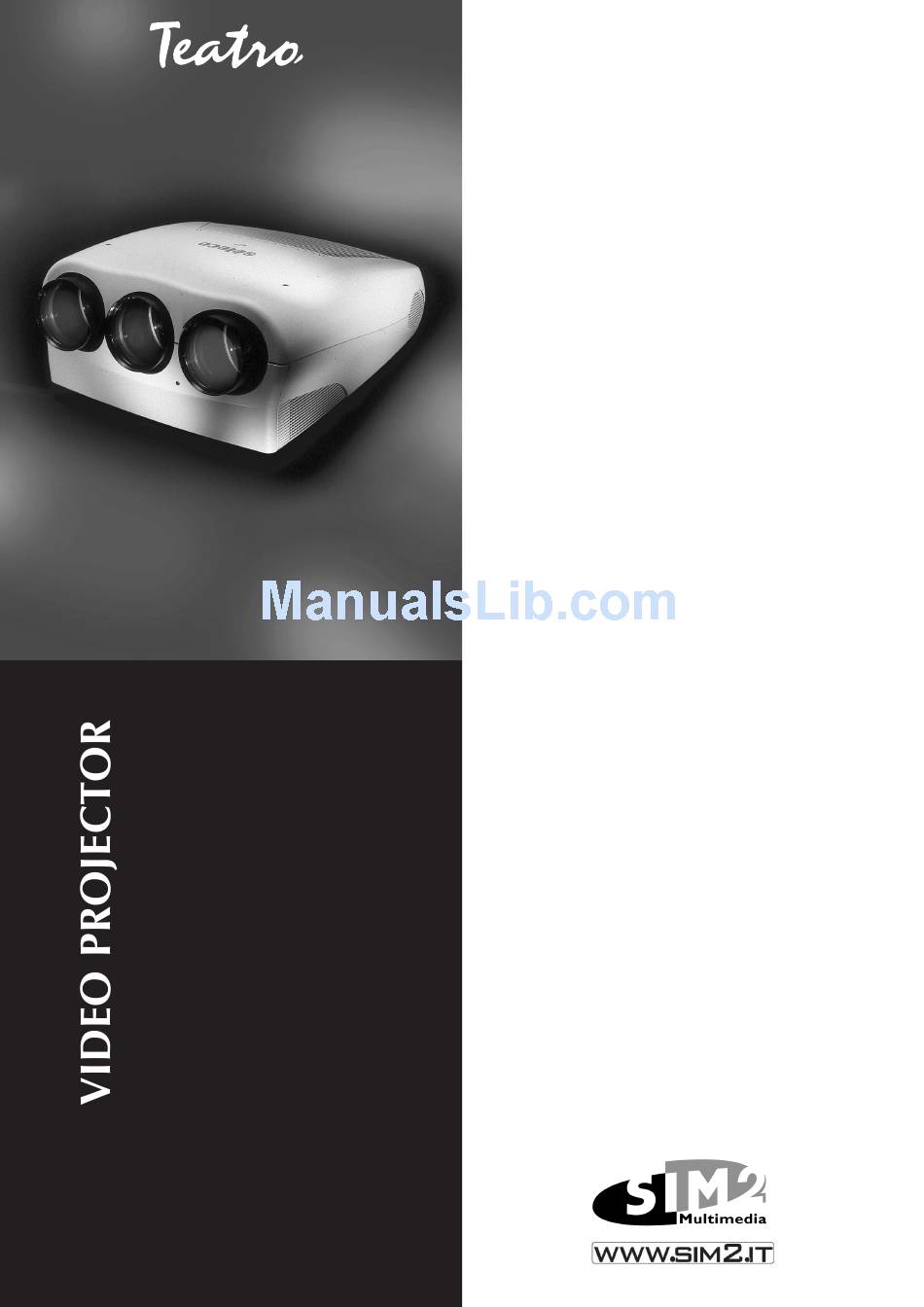

- Page 1 USER AND INSTALLATION MANUAL MANUALE D’USO E INSTALLAZIONE SVD 500 PLUS SVP 450 PLUS SVP 420 HB...
-
Page 2: Table Of Contents
Projector centering ... Optical and electrical adjustments ... Lens focus adjustment ... Mechanical centering of the tubes ... 4.10 Magnet adjustments ... 4.11 Setting of deflections connectors ... 4.12 Convergence adjustment ... SVP 450 PLUS - SVD 500 PLUS INDEX... - Page 3 SVP 450 PLUS - SVD 500 PLUS THE COMPLETE FUNCTION RC 3000 REMOTE CONTROL ... Complete function RC3000 remote control ... Batteries ... How the RC 3000 remote control works ... Videosetup ... 5.4.1 To setup the Y/C delay, you must enter the installation mode ...
-
Page 4: Warnings
- Consult the dealer or an experienced radio/TV technician for help. Attention: Before using this projector please read this manual through carefully and completely. This manual will provide you with the basic instructions for using the projector. Installation, preliminary adjustments and procedures which require the opening of the projector and contact with electrical components should be performed by qualified personnel. -
Page 5: Mains Power
SVP 450 PLUS - SVD 500 PLUS MAINS POWER Mains power: 120-240Vac 50-60Hz +6%-10% Max absorbed current: 2.5 A 1.1 Safety and Regulations A) Safety - conform to: EN60950: Equipment for information technology including electric office equipment. Safety. German Law (RoV) -1987:... -
Page 6: Power Cabling
- Do not attempt to use it as it could be dangerous or even worsen the damage. - If the projector is not used for long periods of time or during storms, unplug the projector temporarily from the mains to avoid damaging the projector caused by lightning or temporary overcurrents. -
Page 7: Cleaning The Projector
SVP 450 PLUS - SVD 500 PLUS 2.5 Cleaning the projector When we speak about projector cleaning we mean the outside of it. NO internal cleaning is necessary. - Before you start cleaning the projector take the plug out of the mains. -
Page 8: Cathode-Ray Tube Phosphor Burning
These measures will reduce the risk of CRT phosphor burning. If possible, always use the same picture size. Read the warranty enclosed with the product and consult your dealer or button is SMALL. SVP 450 PLUS - SVD 500 PLUS qualified personnel. -
Page 9: User Remote Control Rc 3100
3 USER REMOTE CONTROL RC 3100 RC 3100 is the User Remote Control for normal programme selection and analogue adjustments (once the projector is installed). The projector is controlled by the infrared ray remote control (I.R.) whose maximum range is approximately 10 metres with new batteries. -
Page 10: Batteries
3.3 Projector Power On - To turn the projector on or off, press the power swith, (a red led lights up on the rear panel), if after a few seconds the led does not turn green, press - To turn the projector off, press for a longer time. -
Page 11: Screen Format Selection
SVP 450 PLUS - SVD 500 PLUS STORED Each time this button is pressed, a different adjustment will be selected, sequentially. Use the arrows change the value, press MEMO to store the new value. Press ESC to exit. 3.7 Screen format selection To select the correct screen format: (NORMAL, SMALL, 16/9, LETTER BOX, CINEMA,). -
Page 12: Muting Video Button
NSTC 4.43 to select the video input standard or the automatic selection mode. Press ENTER to confirm. SVP 450 PLUS - SVD 500 PLUS Press EXIT to return to the previous menu. Press ESC to exit the menu. To turn on or off the noise reduction: this menu allows you to activate a frequency filter. -
Page 13: Blanking
SVP 450 PLUS - SVD 500 PLUS Use the arrows to select TLV SYNC and press ENTER to confirm, the second menu appears: VIDEO MENU TLV SYNC Use the arrows for function selection. The TLV SYNC selection is active only if the signal is 33,7KHz 60Hz. -
Page 14: Upc Converter
PROGRESSIVE LINE INSERT FIELD INSERT The menu operates only if the UPC converter is SVP 450 PLUS - SVD 500 PLUS switched on. The current conversion mode is shown by an arrow on the left. Use the arrow conversion mode and press ENTER to confirm the selection. -
Page 15: Installation Menu
SVP 450 PLUS - SVD 500 PLUS All peaking, hue, colour, brightness and contrast values are now stored. To recall the SET adjustment, press displayed. To change the USER adjustment: change according to the peaking, hue, colour, brightness and contrast required. -
Page 16: Installation
4.2.1 Removing the top cover Loosen the 2 securing screws (A) and lift the cover up. SVP 450 PLUS - SVD 500 PLUS To remove the top cover completely you must unscrew the two locking screws (B) close to the two pivots and the other two (C) securing the jointed rod to the cover. -
Page 17: Desktop Front Projection
SVP 450 PLUS - SVD 500 PLUS 4.3.2 Desk-top front projection Correct use of the spacers, as shown in the spacer tables, is mandatory for a perfect focus uniformity. Check that the projector is perfectly stable. The projector bottom must be parallel with the floor... -
Page 18: Ceiling Front Projection
The bracket must be fixed properly and be absolutely parallel with the screen MURO SVP 450 PLUS - SVD 500 PLUS BRACKET 1- Fix the bracket, included in the pack, to the ceiling with the four screws supplied. -
Page 19: Ceiling Rear Projection
SVP 450 PLUS - SVD 500 PLUS 5- Turn the projector upside down and hang on the ceiling with the assembly brackets. 6- Tilt the projector to centre the vertical picture and screw the two securing screws (H) Note: Insert the special curved washers between the ceiling bracket and the securing screws. -
Page 20: Spacer Changing
12°. The figure shows where to install the spacers with the values given in the following table. Front view of the CRT. SPACERS CRT LENS SVP 450 PLUS - SVD 500 PLUS 4.5.2 Spacers table BLUE BLUE BLUE SPACERS 60"... - Page 21 SVP 450 PLUS - SVD 500 PLUS 120" BLUE GREEN 0,2 0,2 150" BLUE GREEN 180" BLUE GREEN 200" BLUE GREEN 250" BLUE GREEN 300" BLUE GREEN 0,5 0,5...
-
Page 22: Projector Centering
Proceed with installation using the internal test patterns. They can be used by pressing TEST on the complete functions remote control (RC3000) and selecting the most appropriate test signal. SVP 450 PLUS - SVD 500 PLUS SCREEN CORDS OF THE SAME LENGTH Reference... -
Page 23: Lens Focus Adjustment
SVP 450 PLUS - SVD 500 PLUS 4.8 Lens focus adjustment Each lens must be focused individually with the tubes on, one at a time and following this procedure: 1. Select the HATCH test pattern by pressing the TEST button on the remote control. An external pattern signal can be used if you prefer. -
Page 24: Setting Of Deflections Connectors
The setting of the deflection connectors must be carried out as in the following pictures: VERTICAL DEFLECTION SVP 450 PLUS - SVD 500 PLUS 4.12 Convergence adjustment To adjust convergence you must read very carefully the chapter concerning convergence adjustment from the remote control. -
Page 25: 5- The Complete Function Rc 3000 Remote Control
RC3100, is for normal use. Both control the projector with infrared rays. With the RC3000 remote control you can connect via cable directly to the video projector’s IR input so as to avoid any technical problems. -
Page 26: Batteries
IEC6F22 Press ENTER to confirm the setting or the EXIT button to exit. Press EXIT to return to the video setting menu. SVP 450 PLUS - SVD 500 PLUS VIDEO SETUP Y/C DELAY WHITE BALANCE COMB. -
Page 27: To Setup The Gamma Adj., You Must Enter The Install. Mode
SVP 450 PLUS - SVD 500 PLUS 5.4.2 To switch on/off the Comb filter, you have to enter in installation mode. Press VID.S the following menu will appear: VIDEO SETUP Y/C DELAY WHITE BALANCE COMB. FILTER GAMMA ADJ. ADAPTIVE BLACK... -
Page 28: Picture Adjustment
H H H H H H H H H H H H H H H H H H H H H H H H WINDOW SVP 450 PLUS - SVD 500 PLUS Press HUE, select the hue adjustment only for... -
Page 29: White Balance
SVP 450 PLUS - SVD 500 PLUS 5.7 White balance To select one of the set colour temperatures (3200°K,6500°K, 9300°K, USER BANK) for the projected images. To select one of the colour temperatures, proceed as follows: press the button for a few seconds, the... -
Page 30: How To Enter The Memory Manager
SVP 450 PLUS - SVD 500 PLUS MEMORY MANAGER WORK NAME F HOR VER... -
Page 31: How To Store A New Input Signal
SVP 450 PLUS - SVD 500 PLUS 5.8.5 How to store a new input signal To store a new input signal in a memory bank press and you will enter the MEMORY MANAGER mode. The following menu will appear: WORK... -
Page 32: Move
NstcUpc N 31.4 60 Vga 2 N 35.1 56 Vga 3 N 37.6 68 Move bank SVP 450 PLUS - SVD 500 PLUS Press ENTER to confirm. The following message will appear: MEMORY MANAGER WORK NAME F HOR VER LOAD 01 Pal Upc N 31.2 50... -
Page 33: Installation Types
SVP 450 PLUS - SVD 500 PLUS Press ENTER to delete the memory bank, the following message will appear: Done The cursor will return to the left of the menu. If the memory bank you are deleting is the one in use, it will be deleted and the first bank with the same input signal frequency will be loaded. -
Page 34: Fine Picture Adjustments
Press ESC to exit. 5.12.2 Deflection linearity This function allows to change the distance between lines, until they are equally distant. H. = 50 SVP 450 PLUS - SVD 500 PLUS - PICTURE - DEFL CENT H. = 62 V. = 50 DEFL LIN V. -
Page 35: 3Deflection Dimensions
SVP 450 PLUS - SVD 500 PLUS Use the arrow to change horizontal linearity. Use the arrow to change vertical linearity. Press ENTER or EXIT to change function. Press ESC to exit. 5.12.3 Deflection dimensions This function allows to change the dimensions of the raster. -
Page 36: 1Central Convergence
ADJ : R . . H. = 80 V. = 50 SVP 450 PLUS - SVD 500 PLUS Use the R,G,B, buttons to switch on or off the tubes. The CRT message: RGB indicates which tubes are switched on. Use the Rsel, Gsel, Bsel, buttons to select on which tube you wish to act. -
Page 37: 6Horizontal Keystone Adjustment
SVP 450 PLUS - SVD 500 PLUS 5.13.6 Horizontal keystone adjustment This function allows to overlap the red and blue horizontal lines on the green ones. CONV KEY CRT : RGB ADJ : R . . Use the arrow to set in line the horizontal lines of the image with the screen borders. -
Page 38: Screen Corners Corrections
ENTER to confirm, or press EXIT to exit. COLOUR ONLY THE SELECTED COLOUR ONLY THE SELECTED COLOUR SVP 450 PLUS - SVD 500 PLUS MEMORY MANAGER NAME F HOR VER 01 Pal Upc N 31.2 50 .. -
Page 39: Geometric Adjustments
SVP 450 PLUS - SVD 500 PLUS 6 TECHNICAL SPECIFICATIONS 6.1 Projection system 3 picture tubes, 3 lenses Horizontal line system Lenses : Hybrid lenses (SVP 450 PLUS) High definition glass lenses (SVP 500 PLUS-HD) 6.2 Projection tube 7” monochrone tube, high brightness, liquid cooling, air lenses coupling, electrostatic focusing. -
Page 40: 7- Display Performance
Reset picture adjustment (installation mode). Back illumination by pressing a dedicated key. Without pressing any other key, the back illumination lasts about 20 seconds. SVP 450 PLUS - SVD 500 PLUS By pressing any other key, the illumination counter is restarted. Batteries: 4 1,5 Volt batteries, mod. -
Page 41: Electrical Data
SVP 450 PLUS - SVD 500 PLUS 7.8 Scart connector Pin 5 Earth B Pin 7 Input B 0.7 Vpp, termination 75 Pin 9 Earth G Pin 11 Input G 0.7 Vpp, termination 75 Pin 13 Earth R 0.7 Vpp, termination 75... -
Page 42: Troubleshooting
Overcurrent has been detected on the convergence board The projector is in the PROTECTION MODE SVP 450 PLUS - SVD 500 PLUS MEANING REMEDY Press the ON button Connect the power cable If the LED is red it means the projector is on stand-by. -
Page 43: Anweisungen Auf Deutsch
SVP 450 PLUS - SVD 500 PLUS 13 ANWEISUNGEN AUF DEUTSCH ACHTUNG: ÖFFNEN SIE NICHT UND NEHMEN SIE NIEMALS DIE HAUBE DES PROJEKTORS AB WEIL DARUNTER GEFAHRLICHE HOCHSPANNUNGEN, BIS 33 KVOLT, ANLIEGEN. WENN ERFORDERLICH, RUFEN SIE IMMER EINEN TECHNIKER. Multimedia lehnt jejliche Verantwortung ab, für... - Page 44 • Due to the constant product development, specifications and design might be subject to change without notice. • A causa dello sviluppo continuo del prodotto, specifiche e progetto potrebbero subire modifiche senza preavviso. • V.le Lino Zanussi, 11 • I-33170 Pordenone • Phone +39.434.383.253-256 • Fax +39.434.383260-261 • http://www.sim2.it • e-mail: info@sim2.it SIM2 Multimedia S.p.a.
