Installation

This section provides instructions for the installation of the AR projector.
Important:

Location

When installing the AR projector, take the following considerations into account.
Installation Type
Select the installation type that best suits your needs:
front or rear projection
•
floor or ceiling mount
•
Lens Type
Choose the desired distance from the screen and select the lens type (T1, T2 or T3) that deter-
mines the desired screen size.
Cooling
Make sure that the planned location for the projector has adequate ventilation. Check that room
temperature is below 35° C and that the projector is away from heating vents. Ensure a mini-
mum 0.25 m (10 in.) clearance on the left, right and rear sides of the projector.
Power Outlets
Verify that the powers outlets are grounded and preferably shielded from power surges and
fluctuations. A UPS is optional. AR power supply operates on any nominal line voltage between
100-240 V AC, 50-60 Hz.
Cables
Check planned cable lengths for video and control cables and make sure these lengths do not ex-
ceed specifications.
SIM2 BV International s.r.l

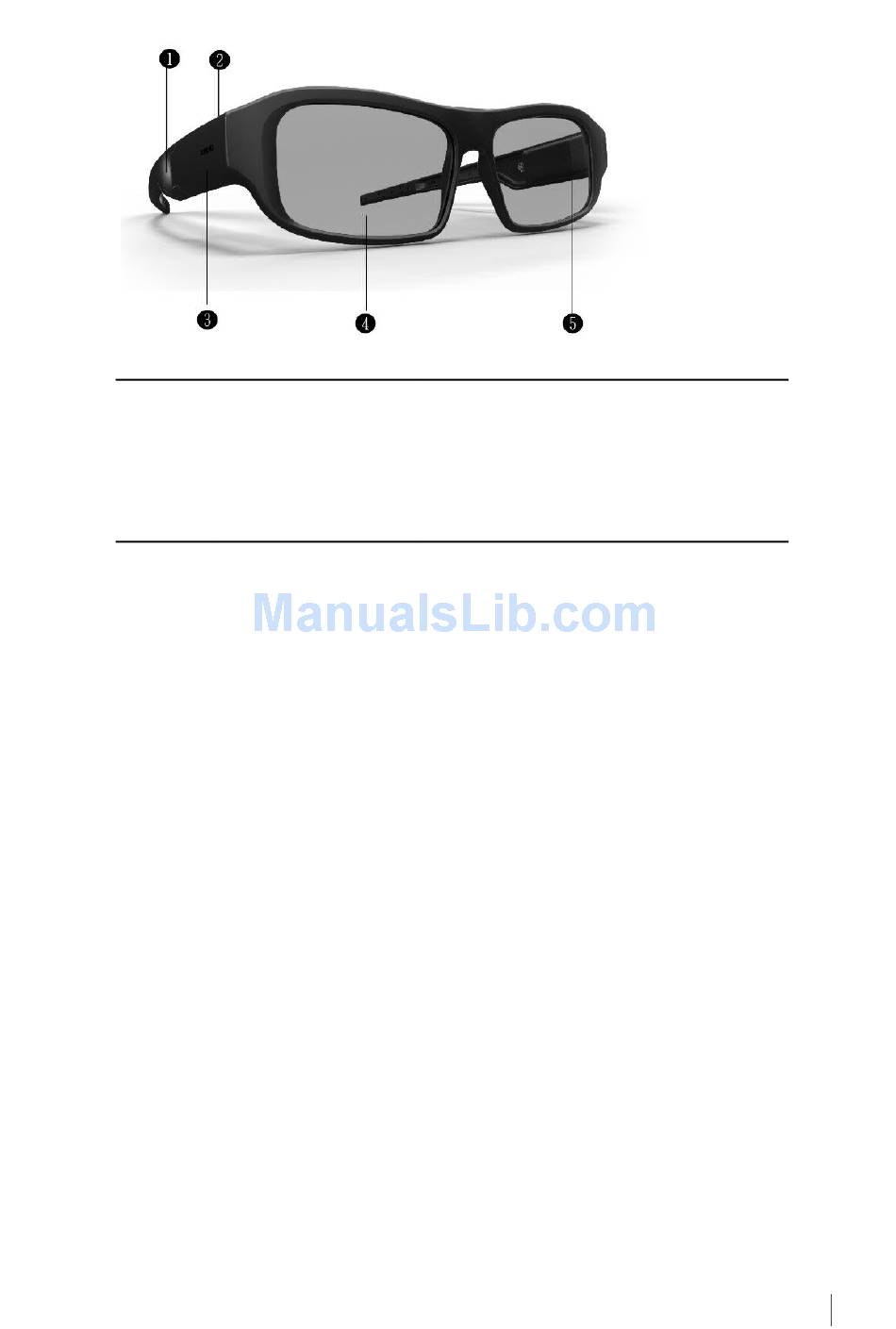

Indicator light
Battery compartment
IR receiver
Lens
Button
Installation procedures should be performed by a qualified AV system specialist.
Indicates glasses status
For CR2032 (3 V DC / 0.2 A) batteries
Receives infrared signals from the 3D Emitter
Liquid crystal shutter
Button for on and off
AR User Guide 12
