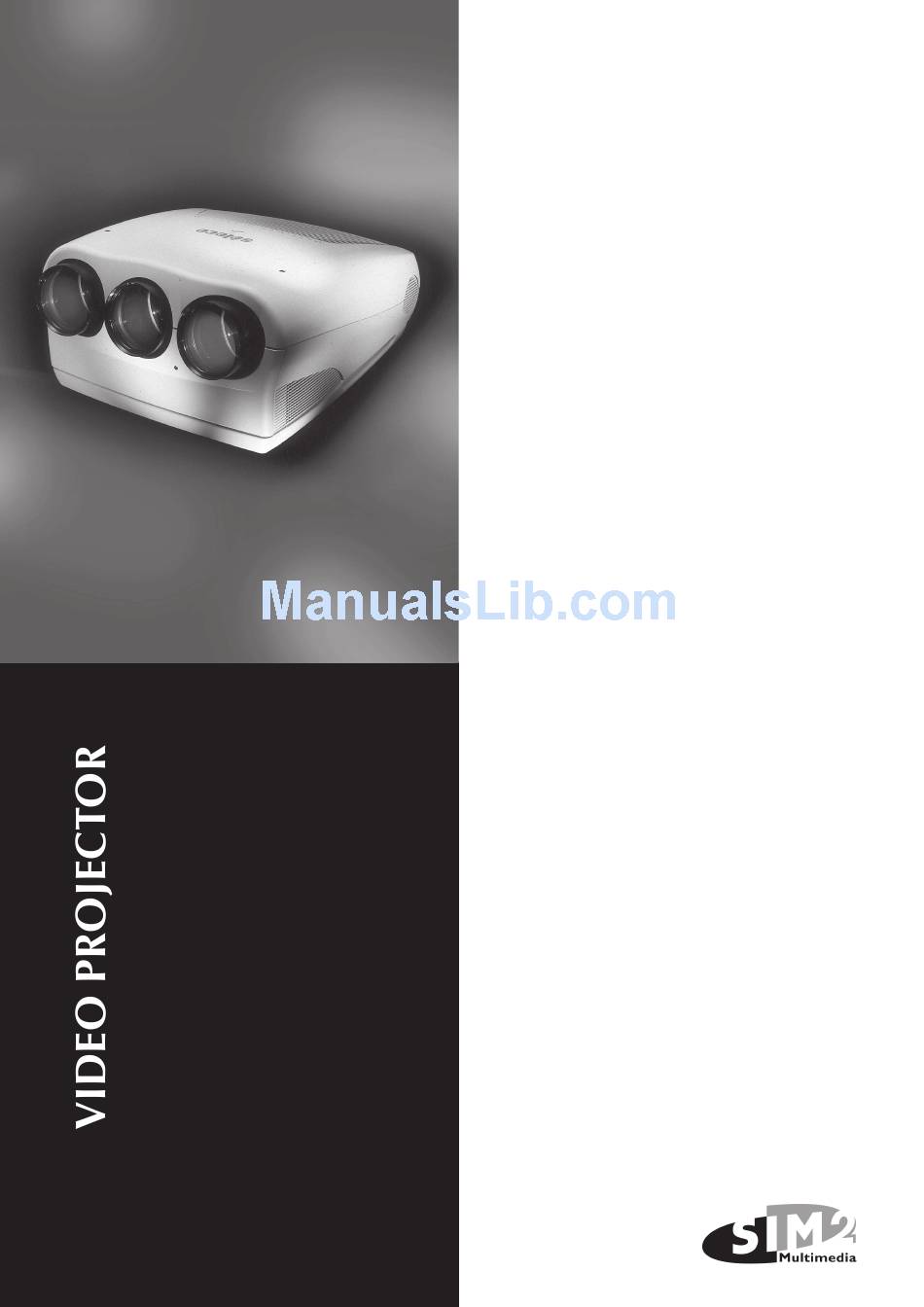

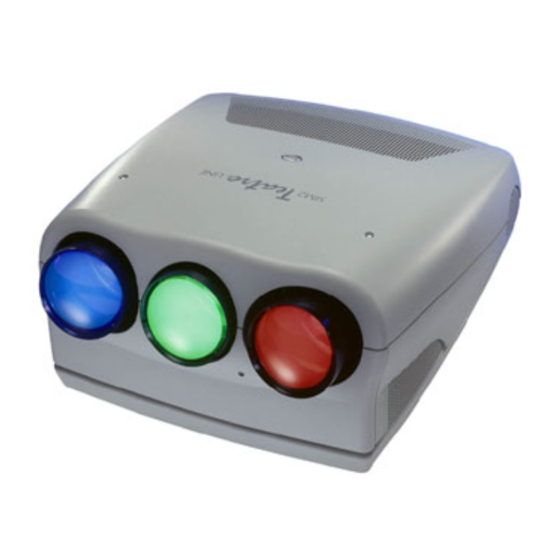

  • Page 1 USER AND INSTALLATION MANUAL MANUALE D’USO E INSTALLAZIONE GEBRAUCHS-UND INSTALLATIONSANLEITUNG MANUAL DE USO E INSTALACIÓN PROJECTOR SVD 800 HD...
  • Page 2: Table Of Contents

    4.3.3 Desktop rear projection ... 4.3.4 Ceiling front projection ... 4.3.5 Ceiling rear projection ... Projection angle measurement ... Spacers ... 4.5.1 Spacer changing ... 4.5.2 Spacer table ... Projector centering ... Optical and electrical adjustments ... INDEX SVD 800 HD...
  • Page 3 SVD 800 HD Lens focus adjustment ... Page 23 Mechanical centering of the tubes ... 4.10 Correct screen viewing (deflections inversion) ... 4.11 Convergence adjustment ... THE COMPLETE FUNCTION RC3000 REMOTE CONTROL ... Complete function RC3000 remote control ... Batteries ...
  • Page 4: Warnings

    - Consult the dealer or an experienced radio/TV technician for help. Attention: Before using this projector please read this manual through carefully and completely. This manual will provide you with the basic instructions for using the projector. Installation, preliminary adjustments and procedures which require the opening of the projector and contact with electrical components should be performed by qualified personnel.
  • Page 5: Mains Power

    - Do not spill any liquid spill on the projector. - If an object or liquid manages to get inside the projector, unplug it immediately and call for the assistance of qualified personnel.
  • Page 6: Power Cabling

    - If the projector is not used for long periods of time or during storms, unplug the projector temporarily from the mains to avoid damaging the projector caused by lightning or temporary overcurrents. - Do not stand the projector on unstable surfaces as it could drop causing serious damage.
  • Page 7: Cathode-Ray Tube Phosphor Burning

    Note: After 2000 hours working time it is essential to clean the outside of the lenses with a soft cloth to avoid scratching them. Don’t forget to cover the lenses when the projector is not going to be used for a long time. 2.6 Cathode-ray tube phosphor...
  • Page 8: Input Selection

    PC. 15- +12V connector (output). It has a +12V output when the projector is on. This output can activate a relay with a current less than 10mA. (for example, to enable a circuit for the automatic unwinding and rewinding of the motorised screen).
  • Page 9: User Remote Control Rc 3100

    SVD 800 HD 3 USER REMOTE CONTROL RC 3100 RC 3100 is the User Remote Control for normal programme selection and analogue adjustments (once the projector is installed). The projector is controlled by the infrared ray remote control (I.R.) whose...
  • Page 10: Batteries

    PATTERN WILL REMAIN ON THE SCREEN FOR 10 MINUTES ! FOR IMMEDIATE USE PRESS ESC - Always let the projector warm up for ten minutes after switching it on. - The message will disappear temporarily after about 10 seconds and will then return for 5 seconds. This will be repeated at 40 second intervals.
  • Page 11: Screen Format Selection

    SVD 800 HD 3.6 Screen format selection To select the correct screen format: (NORMAL, SMALL, LETTER BOX, CINEMA, WIDE). Press the button. One of the previous screen formats will appear (for instance 16/9). 16/9 Each time you press a button relative to the AV inputs, you are choosing one of the aspect ratios stored in the relative memory bank.
  • Page 12: Video Menu

    3.14 UPC converter It is possible to install a UPC converter (optional) inside the projector which will double the input signal lines for a better quality picture. The UPC converter uses IQTV technology, offering great Fig.
  • Page 13: Input Settings

    SVD 800 HD 3.15Input Settings - VIDEO MENU - QSD MANAGER UPC MANAGER INPUT SETTINGS BLANKING EHT NOISE RED. WHITE MENU CLAMP POS With this menu you can select the position of the CLAMP impulse on the external video signal.
  • Page 14: White Menu

    The ON/OFF functions can be set separately.
  • Page 15: Working Time

    - MISCELLANEOUS - - TIMER FUNCTIONS - WARKING TIME - OSD OPTIONS - LOGO To display the total working time of the projector and of each of the red, green and blue tubes. - WARKING TIME - PROJECTOR TUBE GREEN...
  • Page 16: Logo

    Press the EXIT button seven times until SERVICE MODE appears on the screen. Before you alter the settings check the following points: - Mechanical centering of the video projector and tubes - Lens focus Note: The protection mode is activated automatically when switching off.
  • Page 17: Installation

    Insert the correct spacers (see: par. 4.5.1, Spacer Changing, page 20). Prepare and install the screen. Install the projector on the floor or on the ceiling and center the screen (see: par. 4.6, Projector centering, page 23) , maintaining the factory deflection settings.
  • Page 18: Removing The Front Panel

    4.3.2 Desk-top front projection Attention: The bottom of the projector must be parallel with the floor. It is very important to know the correct projection angle. SCREEN CENTRE...
  • Page 19: Desktop Rear Projection

    Use the ceiling assembly kit (given with the projector) to install the projector on the ceiling and proceed as follows: To attach the projector to a solid concrete block ceiling or brick ceiling drill 12mm dia. holes 65mm deep. Attach on...
  • Page 20 Attention: The bracket must be fixed properly and be absolutely parallel with the screen BRACKET Put the projector on a table in the vertical position (sideways) N.B.: Take the two front feet off. Remove the 2 screws and their washers, insert the left bracket and fix it, using the same screws and washers, as illustrated in the following figure.
  • Page 21: Ceiling Rear Projection

    4.4 Projection angle measurement Use a goniometer to determine the projection angle. First of all, remove the projector’s top cover and then use the surface shown in the figure as reference for the goniometer. The reference surface has an angle of 14 degrees compared to the projector’s base when it is perfectly level.
  • Page 22: Spacer Table

    4.5.2 Spacers table Front view of the CRT. SPACERS CRT LENS 60" BLUE GREEN 80" BLUE GREEN SPACERS Fig. 52 SVD 800 HD 90" BLUE GREEN 100" BLUE GREEN 120" BLUE GREEN...
  • Page 23 SVD 800 HD 150" BLUE GREEN 180" BLUE GREEN 200" BLUE GREEN 60" 80" 90" 100" 120" 150" 300" 250" BLUE GREEN 300" BLUE GREEN 0,3 0,3 Projections at 0¡ BLUE GREEN...
  • Page 24: Projector Centering

    It is necessary to check that the position of the two corners at the front of the projector is centred with respect to the position of the cords, as illustrated in the figure. Once you have done this you can be sure that the screen and the projector are orthogonal and centred, essential conditions for the best performance.
  • Page 25: Mechanical Centering Of The Tubes

    SVD 800 HD 4.9 Mechanical centering of the tubes For an installation different to factory setting (90”) the mechanical centering of the red and blue tubes needs to be adjusted. Select the CROSS HATCH signal with the remote control. Looking at the following figure, unscrew (only 2 turns!) the screws (A-B-C-D) of the red tube.
  • Page 26: The Complete Function Rc3000 Remote Control

    Accesses the service menu. In the installation mode it lets you enter the zones menu. via cable directly to the video projector’s IR input so as to avoid any technical problems. N.B.: (The cable is supplied with the projector. Standard length is 8m.).
  • Page 27: Batteries

    Press The red LED becomes green ON. A white screen appears with the message indicated below. Always leave the projector to warm up for ten minutes after switching it on. The message disappears temporarily after about 40 seconds after which it reappears for 5 seconds at approximately 40 second intervals.
  • Page 28: Test Patterns

    Fig. 68 N.B.: If your press displayed signal bank are recalled. Fig. 69 DET 100 5.6 Test patterns SVD 800 HD one of the functions is displayed. all the values stored in the 9X7 HATCH WHITE FIELD WHITE WINDOW COLOUR BARS...
  • Page 29: Video Menu

    SVD 800 HD VIDEO MENU Press VID.S. the VIDEO MENU appears. To adjust the various sub menus see: par. 3.13, VIDEO MENU, page 11. - MAIN MENU - VIDEO MENU OPTIONS INSTALL. MENU 5.7 White balance To select one of the set colour temperatures (3200 K, 6500 K, 9300 K, USER, BANK) see par.
  • Page 30: How To Enter The Memory Manager

    (F) indicates which ratio flag was stored by the user during the adjustments. The horizontal and vertical frequencies are measured by the projector and stored in the relative memory bank each time you save an adjustment. When the projector is switched on the last memory bank used is recalled.
  • Page 31: Horizontal And Vertical Frequencies

    5.8.4 Horizontal and vertical frequencies The horizontal and vertical frequencies are measured by the projector and stored in the relative memory bank each time you store a change. If the input signal does not match the frequency stored in the memory bank the software will automatically recall...
  • Page 32: Move

    Press EXIT to return to the previous menu. Note: If the destination bank is not free the following message will appear: 76HZ - - - - Fig. 92 SVD 800 HD . Select MOVE. - MEMORY MANAGER - BANK SIGNAL NAME PAL LOAD HOR VER F LABEL 33.7...
  • Page 33: Delete (Del)

    Read the following pages carefully. Attention: It is very important to synchronise the projector with the most frequently used input signals. The settings of each signal type must be stored in a memory bank.
  • Page 34: Shift

    5.11.5 SKEW Press CRT = R G B ADJ = R - - Fig. 108 SVD 800 HD to position V. VALUE=30, adjust for a fine Fig. 109 to adjust. SIZE VALUE Fig.
  • Page 35: Bow

    SVD 800 HD 5.11.6 BOW Press to adjust. CRT = R G B ADJ = R - - VALUE VALUE 5.11.7 KEYSTONE Press to adjust. KEYSTONE CRT = R G B ADJ = R - - VALUE VALUE 5.11.8 PINCUSHION Press to adjust.
  • Page 36: How To Reset The Adjustments (Reset)

    ENTER, the following will appear: PHASE CRT = R G B ALL DATA MEMORIZE ON BANK XX XXK-XXHZ VALUE Storing has now been completed on the current memory bank. Press ESC to exit. COLOURS Fig. 117 Fig. 118 SVD 800 HD...
  • Page 37: Technical Specifications

    SVD 800 HD 6 TECHNICAL SPECIFICATIONS 6.1 Optical data Projection system 3 projection tubes, 3 lenses Horizontal line system 6.2 Projection tube 7” monochrome tube, high brightness, liquid cooling, air lens coupling, electrostatic focusing. The external red and blue tubes are mechanically rotated.
  • Page 38: Display Performance

    G input 0.7 Vpp, 75 Ohm termination, G with synchro/ Y: 1Vpp, 75 Ohm termination, G with synchro / Y: 1Upp, 750 Ohm termination negative synchro. B/Cb input 0.7 Vpp, 75 Ohm termination RGB video band: 75Mhz, -3dB Y Cr Cb band: 40Mhz - 3dB SVD 800 HD...
  • Page 39: Electrical Data

    SVD 800 HD 7.7 Input synchro H, H/V sync 75 Ohm termination a) Horizontal sync or composite sync 0.3-5Vpp, positive or negative b) Vertical sync: 0.3-5Vpp, positive or negative 7.9 Video inputs CVBS 1 BNC composite video input connector, 1Vpp, 75 Ohm termination, negative sync.
  • Page 40: Pin Assignment

    Not used Not used H / HV Not used RS-422A connector (female 9 pin D-sub) Luminance RS 232 compatible connector (only for short distances) SVD 800 HD No. pin Signal Not used Not used Do not use Not used No. pin...
  • Page 41: Troubleshooting

    SVD 800 HD The pilot lights on the rear panel show the projector status. ON indicator Remote control indicator In case of mulfunctioning check the following table before asking for service help. PROBLEM The projector will not turn on No picture is displayed on the screen...
  • Page 42: French Instruction

    Enlever les 2 vis ainsi que les 2 rondelles, introduire le crochet gauche et le fixer en utilisant les mêmes vis et les mêmes rondelles comme indiqué dans le dessin ci- dessous. Répéter les mêmes opérations pour le crochet de droite. RESPECTER LE PARALLELISME SVD 800 HD 93 180...
  • Page 43: German Instructions

    SVD 800 HD Retourner le projecteur et le fixer au plafond au moyen des deux crochets. Incliner le projecteur de manière à centrer l’image verti- cale et visser les deux vis de fixation (H). Note: Introduire les rondelles arrondies spéciales entre le crochet et les vis de fixation.
